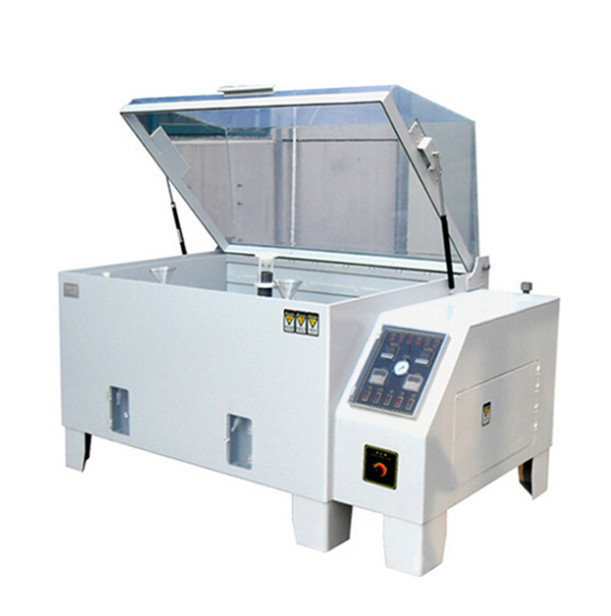

JIS-D0201 600L Salt Spray Test Chamber

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: BT
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: PLY-WOODEN CASE
Delivery Time: 20-30workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000Set/month
Power:: Electronic, AC220V 50HZ Or Customize Specifications:: Can Be Customized
Uses:: Salt Spray Test Machine Test Chamber Size:: All Size Can Customize
Controller:: PID Or PLC OEM:: Offered
Standards:: GB/T 10587-2006,GB/T 10125-1997, JIS-D0201,H8502,H8610,K54 Material:: SUS#304 Stainless Steel Plate
Test Room:: 35C±1C Package:: Wooden Box For NSS Salt Spray Test Machine
High Light:

JIS-D0201 Salt Spray Test Chamber

,

600L Salt Spray Test Chamber

,

600L cyclic corrosion test



Hot Salt Water Spray Test Machine Salt Spray Test Chamber



salt spray test machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.



salt spray test machine is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.



Characteristics:
1. Spray nozzle the heart of teser adopt Bo Nute Principle which change saline water into atomization but no crystallization produced.

2. Controller is digital type microcomputer which delivers precision temparature.

3. Parameters show on the display screen such as temparature, humidity, pressure, spray capacity and time.

4. Test specifications are accept worldwild.







salt corrosion tester NSS ACSS Usage salt spray test chamber

USES

Thismachine has a standardized test method to check corrosion resistence of coated samples. Salt spray test

is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its

suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a

period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant

the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have

different behaviour in salt spray test and consequently, test duration will differ from one type of coating to

another.



Bo Nute principle draw salt water and then spray , atomization uniform , no crystallization of the blocking phenomenon , to ensure continuous testing , the compressed air nozzle on the way through it leading to the bubble column was wet , the corrosion solution and air nozzle atomized into a corrosive mist , inside the heater to maintain the temperature inside .







Technical parameters

Model BT-609-60 BT-609-90 BT-609-120 BT-609-150 BT-609-200
Design standard

GB/T 10587-2006, GB/T 10125-1997,

JIS-D0201, H8502, H8610, K5400, Z2371

Test chamber capacity(L) 108L 270L 600L 750L 1000L



Temperature

Test chamber NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Saturated air cylinder NSS.ACSS 47°C±1°C/CASS 63°C±1°C

Test chamber size

L×W×D(cm)

60*45*40 90*60*50 1200*1000*500 1500*1000*500 2000*1000*500
Max capacity of test liquid(L) 15 25 40 40 40
Power AC220V,10A AC220V,15A AC220V, 30A AC220V, 30A AC220V, 30A



Product Effects





Product Effects





JIS-D0201 600L Salt Spray Test Chamber 0

JIS-D0201 600L Salt Spray Test Chamber 1



FAQ



 1. How can we guarantee quality?
Continuous testing is performed after production is completed to ensure product stability.
All parts come from manufacturers of world-renowned brands.


2.What can you buy from us?
Checkweigher,Packing machine,CNC machine

3. why should you buy from us not from other suppliers?
We are a manufacturer with ISO9001, CE international certificates,
*12+ years of production experience
* 10+ years of foreign trade experience
*10+ national technology patents
*Exported more than 1,000 units without receiving complaints from customers

4. what services can we provide?
warranty:12 months free warranty, life-long maintenance.
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
