Big Room 220V Temperature Humidity Test Chamber , LCD Toch Panel Display Walk In Environmental Chamber
Detailed Product Description
| Humidity Constancy: |
±2.0％R.H |
Application: |
Double Door |
| Interior Material: |
Stainless Steel Plate(SUS 304) |
Heat Up Time: |
+20 ºC～+80 ºC,Within 60 Min |
| Ambient Temp: |
-70℃~+120℃ |
Humidity Range: |
10％,20%,30%～95% |
| Controller: |
LCD Toch Panel |
Temp. Uniformity: |
±1.0 ºC |
Big Room 220v Temperature Humidity Test Chamber Walk-In Environmental Test Chamber
Application:
The walk-in constant temperature and humidity test chamber is suitable for aerospace products, information electronic instruments and meters, materials, electricians, electronic products, and various electronic vitality components in the high-low temperature or moist heat environment, and to inspect its performance index.
The Main Technical Parameters :
| Model |
HST-5200T Walk In Environmental Chamber |
| System |
Balanced Temperature & Humidity Control System |
| Temp. range |
-70°C~150°C |
| Humid. range |
20 ~ 98 percent R.H. |
| Temp. & Humid. accuracy |
± 0.3°C; ± 2 percent R.H |
| Temp. & Humid. regularity |
± 1°C; ± 3 percent RH |
| Resolution |
0.1°C, 1 percent, P.I.D control |
| Heating up |
-40°C ~ +100°C within 45 min |
| Heating down |
20°C~ -20°Cwithin 40min |
| Interior dimension(W×D×H) |
60×80×85cm |
| Exterior dimension(W×D×H) |
120×135×175cm |
| Interior material |
Stainless steel plate(SUS304) |
| Exterior material |
Stainless steel plate(SUS304) |
| Insulation |
Rigid foam |

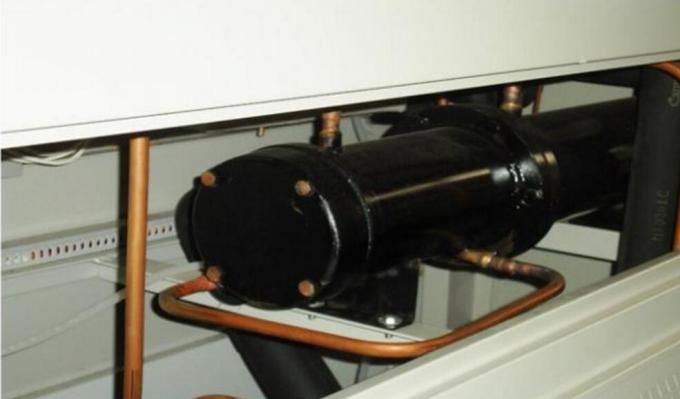

| Refrigeration system |
Air cooled, Hermetic compressor, single stage refrigeration system. |
| Display |
LCD |
| Safety devices |
No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm |
| Accessories |
Viewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø50mm)Chamber lamp. |
| Weight |
Approx. 400kg |
| Power |
AC220V±10 percent 50/60Hz |
Feathers:
1. The shell of walk-in constant temperature and humidity test chamber is made of high quality stainless
steel (SUS#304) CNC machine tool.
2, The use of imported high-grade stainless steel (SUS304) mirror panels. 3,Insulation material: high-density glass fiber cotton. Insulation thickness is 100mm
4, Temperature and humidity cycle system: the use of special air-conditioning low noise long-axis fan motor, high temperature resistant stainless steel multi-wing impeller,
Intensity convection vertical diffusion cycle
5. Double-layer high-temperature high-strength sealing strip is used between the door and the box to ensure the sealing of the test area
6, The use of non-reverse door handle, easier operation
7. The bottom of the walk-in constant temperature and humidity test chamber adopts high-quality fixed PU movable wheels.
8. The observation window is made of multi-layer hollow tempered glass, and the inner gluing sheet type conductive film is heated and defrosted (clear observation test process)
9, test hole (left side of the machine) can be connected to the test power cord or signal
Parameters
● GB-2423．1-2008(IEC68-2-2) Test B: High Temperature Test
● GB-2423．1-2008(IEC68-2-2) Test B: Low Temperature Test
● GJB360．8-2009(MIL-STD．202F) High Temperature Operating Life Test
● GBJl50．3-2009(MIL-STD-810D) High Temperature Test
● GBJl50．4-2009(MIL-STD-810D) High Temperature Test
Walk-in type
Standard sub-assemblies for quick delivery and low cost
High quality panels manufactured to HST standards.
Standard muti-layer heated window in door(s)
Operation allowable to 120°C(85°C in humidity mode )
Temperature change rates to( 1C°/min~20C°)
