Payment & Shipping Terms:
|Volume:||160L||Spray Volume::||1.0~2.0ml /80cm2 /h|
|Power:||AC220V 1 Phase 3 Lines15A||Outside Material:||PVC|
|Spray Form:||Continuous Spraying Or Programmable Spraying||Internal Dimension WxHxD (mm):||1600x500x800|
PVC Salt Spray Test Chamber/Salt Fog Testing Chamber could evaluate the anti-corrosion ability of materal and material coating , make a comparsion about the product techniques and quality of similar coating and products , It be used to test the electronic elements, and metal materials and industrial products.
PVC Salt Spray Test Chamber/Salt Fog Testing Chamber Feature
1.Imported reinforced hard PP plates with smooth and flat surface
2.Imported transparent impact-resistant plates as observe window
3.All pipe is anti-corrosion can be used 15years .
4.Adopt water seal method to prevent leakage of salt spray.
5.With air pressure cylinder for convenient operation.
6.Independent heating system , fast speed , temperature and humidity are evenly distributed
7.Equipped with automatic demisting device
8.Fault alarm and resolution remind function
9.Power failure protection function
11.Calendar timing function
12.Tri-color Indicator and EMO (Emergency-off Switch) available
PVC Salt Spray Test Chamber/Salt Fog Testing Chamber Test Standards
CNS: 3627, 3385, 4159, 7669, 8886.
JIS: D0201, H8502, H8610, K5400, Z2371.
ISO: 3768, 3769, 3770.
ASTM: B 117, B268.
|Internal Dimension WxHxD (mm)||600x400x450||900x500x600||1200x500x800||1600x500x800||2000x500x800|
|External Dimension WxHxD (mm)||1100x600x1200||1400x950x1200||1900x1300x1400||2300x1300x1400||2700x1500x1500|
|Lab Temperature||Saline test (NSS ACSS) 35±1 °C ;Corrosion Test (CASS)50±1 °C|
|Pressure Bucket Temperature||Saline test method (NSS ACSS) 47±1 °C / Corrosion Test (CASS)63±1 °C|
|Saline Concentration||5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O|
|Compressed Air Pressure(Kgf)||1.0~6.0|
|Spray Volume||1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)|
|Spray Form||Continuous Spraying or Programmable Spraying|
|Power||AC220V 1 phase 3 lines15A|

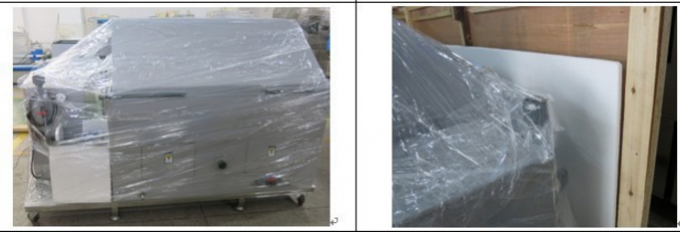

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case
Short introduction about Haston factory:
We are a long history testing equipment manufacturer, in the past 11 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. PVC Salt Spray Test Chamber/Salt Fog Testing Chamber is our star products , and we had obtained the CE certification for this machine .
