| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BOTO |
| Certification: | ISO4892-3 |
| Model Number: | BT-UV-260 |
| Minimum Order Quantity: | 1SET |
| Price: | USD5000-8000/SET |
| Packaging Details: | Standard Wooden Box |
| Delivery Time: | 30 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000SET/MONTH |
| Power:: | Electronic | Product Name:: | ASTM G53-77 UV Test Chamber |
|---|---|---|---|
| UV Wavelength:: | 290 ~ 400nm | Irradiation Source:: | Fluorescent UV Lamps (8) - 40 W |
| Capacity Of Test: | 48 Pieces, Size Is 75mm*150mm/specimen | Chamber Temperature Range:: | Ambient~90℃ ±2℃ |
| Black Panel Temperature:: | BPT 30~70℃ | Warranty:: | 3 Years |
| High Light: | 68 dba G53-77 uv test chamber,plastic weatherometer ASTM uv test chamber,sus304 plastic weatherometer uv weathering chamber |
||
Customized Special Laboratory ASTM G53-77 UV Test Chamber Environmental Test Chambers
High-low temperature test chamber

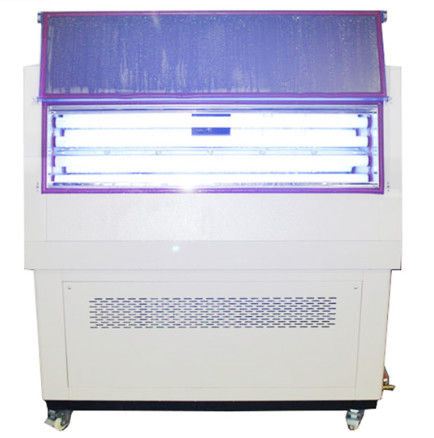

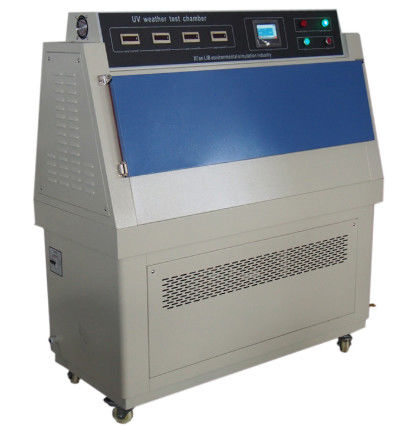

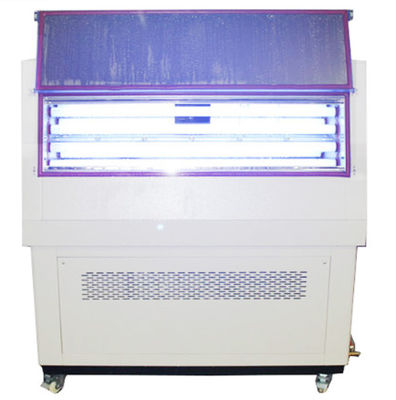

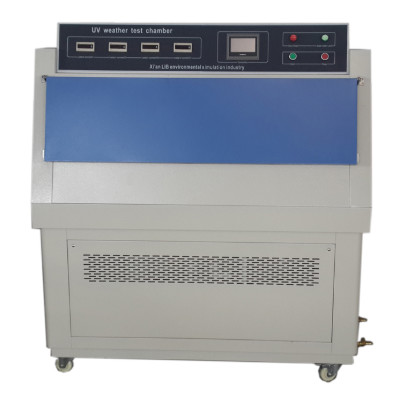

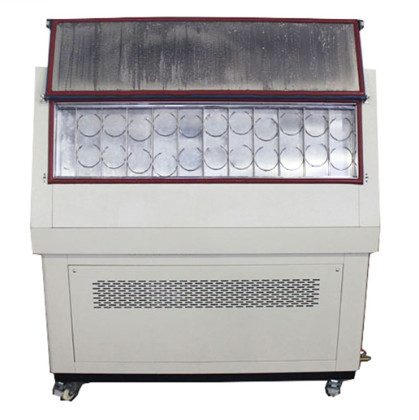

Laboratory ASTM G53-77 UV Test Chamber is equipped with fluorescent UV lamp which can simulate the UV spectra of sunlight, exposes materials to alternating cycles of UV light, moisture and temperature at controlled. It simulates dew and rain with condensing humidity and/or water spray.
2. Standard Features of Laboratory ASTM G53-77 UV Test Chamber
♦ Fluorescent UV lamps (8) - 40 W
♦ Black Panel Temperature (BPT) at controlled, BPT 30~70℃
♦ Temperature from Ambient to 90℃
♦ Spraying water, automatic water supply
♦ Water reservoir 50 Liter
♦ Can hold 48 pieces of specimens
♦ Programmable color display touch screen controller
♦ Safety protection system
♦ Easy to mount samples on the holders
♦ CE and RoHS compliance
| Model | UV-260 | UV-SI-260 |
| Internal dimensions (mm) | 450*1170*500 | 450*1170*500 |
| Overall dimensions (mm) | 680*1300*1500 | 680*1300*1500 |
| Capacity of test specimens | 48 pieces Individual specimen size is 75mm * 150mm | 48 pieces Individual specimen size is 75mm *150mm |
| Controller | Programmable color display touch screen controller | Programmable color display touch screen controller |
| Temperature range | Ambient~90℃ ±2℃ | Ambient~90℃ ±2℃ |
| Humidity range | ≥95%R.H ±2%R.H | ≥95%R.H ±2%R.H |
| Black Panel Temperature | BPT 30~80℃ | BPT 30~80℃ |
| Irradiation Source | Fluorescent UV lamps (8) - 40 W | Fluorescent UV lamps (8) - 40 W |
| UV wavelength | 290 ~ 400nm | 290 ~ 400nm |
| Irradiance Control | N/A | 0.3 ~ 20 W/m2(340 nm / 313 nm) |
| Water Spray | Spraying water | Spraying water |
| Distance of Specimen and lamp | 50mm | 50mm |
| Nominal power | 5000W | 5500W |
| Power Supply | 380V 50HZ | 380V 50HZ |
Warranty & Service - 3 Years Warranty, Lifelong Follow-up Services.
♦ 3 Years Warranty, Lifelong Follow-up Services.
♦ Training how to install, operate and maintain the machine.
♦ Provide calibration service for our customers
♦ Response within 24 hours once got questions from customers.
♦ Send spare parts within 2 days after got notice.
♦ Engineers available to service on site to install and commissioning overseas
