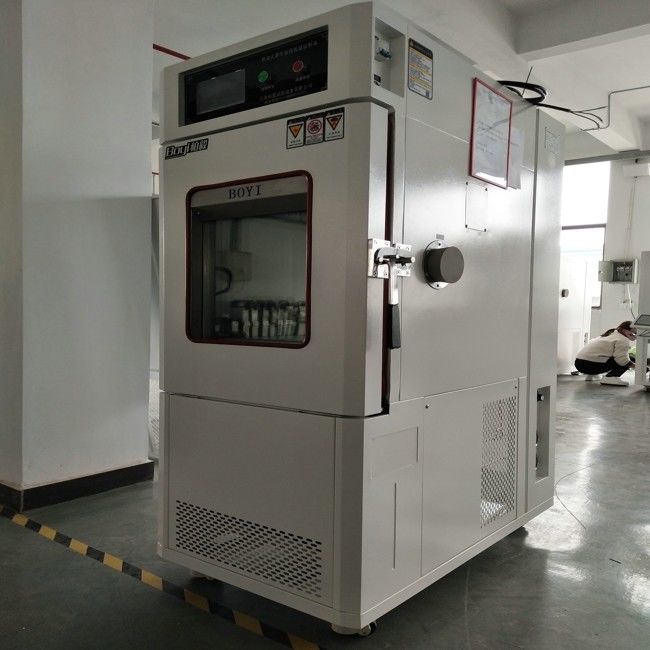

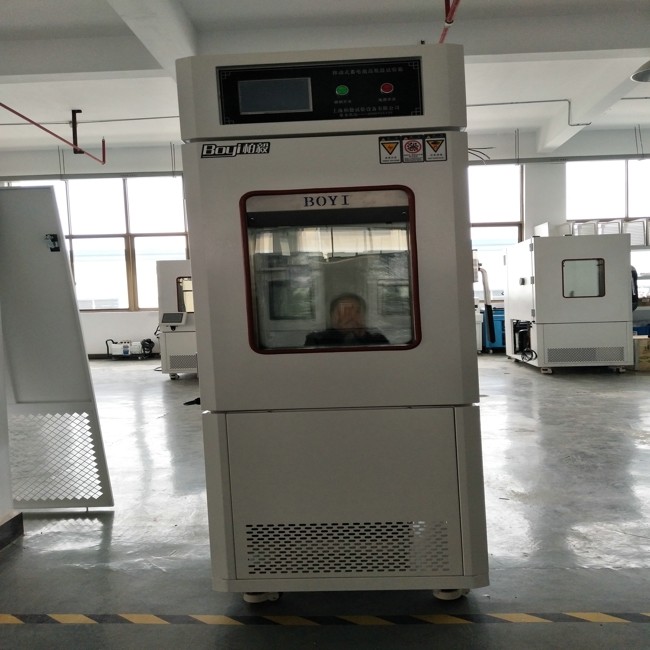

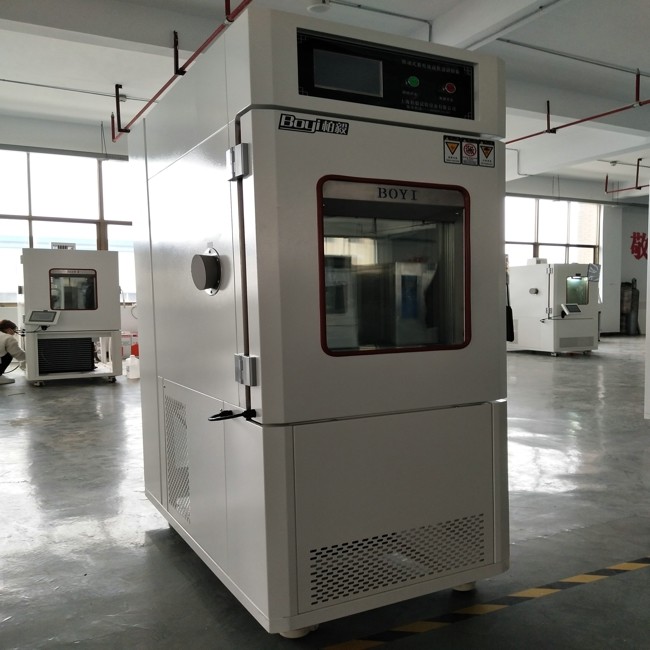

Benchtop Control Chamber Small Temperature Humidity Chamber

Basic Information
Place of Origin: SHANGHAI CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: LY-280 LY-2150 LY-2225 LY-2408 LY-2800
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: PLY-WOODEN CASE
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 Set /month
Brand Name: BOTO Model Number: LY-280 LY-2150 LY-2225 LY-2408 LY-2800
Power: Electronic, 220V Or 380V AC±10% 50/60Hz Color: White And Blue
Temperature Range: -70~150C Test Hole: D50mm
Volume: 80L,150L,225L,408L,800L,1000L Or Custom Made Keyword: Temperature Humidity Test Oven
Fluctuation: ±0.5°C ±2.5%RH Material: SUS 304# Stainless Steel

Benchtop Control Chamber Small Temperature Humidity Chamber

Product details

This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.

Standards:

GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566 etc.

Characteristics:

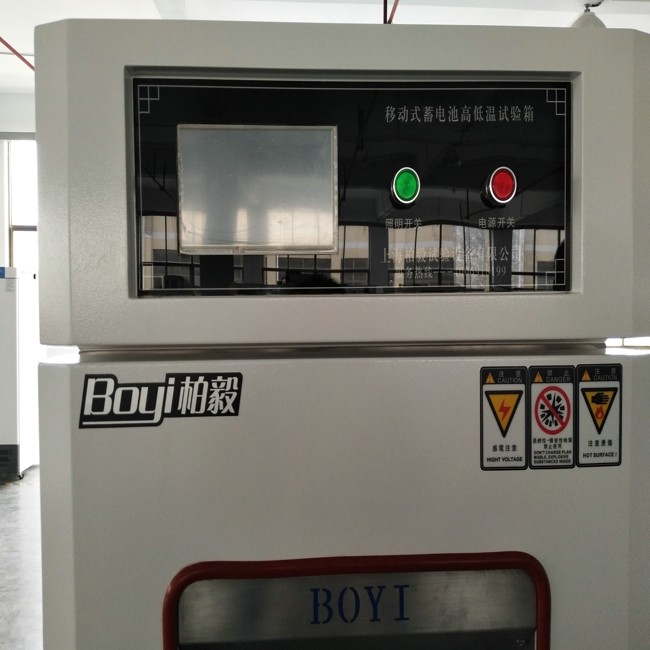

1.Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.

2. Control temperature&humidity well-distributed, precisely and steady.

3.Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.





Model LY-280 LY-2150 LY-2225 LY-2408 LY-2800

Inner Size

W×H×D(cm)

40×50×40 50×60×50 50×75×60 60×85×80 100×100×80

Outside Size

W×H×D(cm)

93×155×95 100×148×106 117×166×91 140×176×101 170×186×111
Volume (V) 80 L 150L 225L 408L 800L
Temp and Hum Range

A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C

RH20%-98%

Function Fluctuation ±0.5°C ±2.5%RH
Deviation ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)

Controller

Analytical

Accuracy

±0.3°C ±2.5%RH
Wind Cycling Way Centrifugal fan-broadband type forced air circulation
Refrigeration Way Single stage compression refrigeration
Refrigerator French Tecumseh
Refrigerants R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way Air-cooled or water-cooled
Water Supplying Way Automatic cycling water supply
Standard Accessories

1 Observe window(double-deck cavity toughened glass),

1 50mm test hole in the left,

1 PL inner chamber lamp,

2 clapboards,

1 bag of wet and dry bulb,

3 fuses,

1 power line.

Benchtop Control Chamber Small Temperature Humidity Chamber 0





Company Introduction

Temperature and Humidity Test Chambers
Temperature and Humidity Test Chambers provides an economical and space-saving solution for a variety of testing requirements. It cansimulate different climatic conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the Performance of material. By testing the product under different climatic conditions to see whether its performance can meet the intended requirements. It is widely applied in the industries of electron, electrical equipment, vehicle,metal, food, chemistry, building materials, luggage, adhesion tape, printing, packaging, and other product components and materials.
The programmer includes a temperature alarm as just one part of Grande's Three-tiered over-temperature protection system. A thermal fuse and a user-set independent limit are also included. In addition, a specimen power terminal allows the user to safely operate powered equipment inside or with the chamber.

Corresponding Standard of the Temperature and Humidity Test Chamber:
1.GB11158 high-temperature testing condition
2.GB10589-89 low-temperature testing condition
3.GB10592-89 high-low-temperature testing condition
4.GB/T10586-89 humidity testing condition
5.GB/T2423.1-2001 low-temperature testing condition
6.GB/T2423.2-2001 high-temperature testing condition
7.GB/T2423.3-93 humidity testing condition
8.GB/T2423.4-93 alternating temperature testing machine
9.GB/T2423.22-2001 temperature testing method
10.IEC60068-2-1.1990 low-temperature testing method
11.IEC60068-2-2.1974 high-temperature testing method
12.GJB150.3 high-temperature test
13.GJB150.4 low-temperture test
14.GJB150.9 humidity test
FAQ
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 13 years focusing on test instruments
field.

Q:After an order is placed, when to deliver?
A:Generally about 15—30days, If we have inventory, we can arrange shipment
within 3 days.
Please be aware that our production lead times depend on specific items and
item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12months

Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test
when shipping and delivery goods. Product use training, each of our product
provide video training to show you how to install & operate.

BOTO Constant High-Low Temperature and Humidity Climatic Test Chamber Price

Benchtops Temperature & Humidity Test Chamber,  High Temperature Test Chamber,Dry Oven ,  Alternating Temperature Test Chamber, Alternating Temperature & Humidity Test Chamber, Temperature Rapid Change Test Chamber,Temperature & Humidity Rapid Change Test Chamber, Alternating Temperature  Alternating Humidity Rapid Change,Thermal shock Test Chamber(Two-zone,Three-zone), Large Walk-in Test Room





1.DESCRIPTION



High/low Temperature Test Chamber mainly used in aerospace, information and electronic fields. This equipment is applied to test environmental adaptability and reliability of instruments or meters, electrical products, materials, spare parts and equipment when they are in high, low temperature or low pressure these three condition separately or simultaneously. Meanwhile, it can also test electrical performance parameters of the test specimens after switching on the current.It is able to simulate a wide range of temperature and humidity environment condition for testing various products and components. It is widely used for basic thermal cycling test and accelerated stress test. We provide 6 standard models, test cabinet from 80L to 1000L, customized size is also available.



2.APPLICATIONS

·  To simulate test environment with different temperature and humidity

·  Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test,moistening test and drying test…

·  Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation

·  Uncover test unit weakness in a short-term test with accelerated time effect





3.CHAMBER DESIGN FEATURES

·   High performance and quiet operation (68 dBA)

·   Space-saving designed for flush installation to wall

·   Full thermal break around doorframe

·  One 50mm diameter cable port o left, with flexible silicone plug

·  Direct water supply connection for continuous operation

·  Accurate wet/dry-bulb humidity measurement system for easy maintain





4.PROGRAMMABLE CONTROLLER

·   PIC controller for test chamber

·   Step types include: ramp, soak, jump, auto-start, and end

·   RS-232 interface to connect computer for output
