1000KN Cube Compression Testing Machine 750KG Electric Ball Screw Adjusting

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: BT006
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: PLY-WOODEN CASE
Payment Terms: D/A, D/P, T/T, Western Union
Supply Ability: 100000Set/month
Power:: Hydraulic Product Name:: Concrete Compressive Strength Testing Machine
Function:: It Is Mainly Used In Compression Strength Of The Concrete Weight:: 750KG
Power Supply:: 220V 50Hz Application:: Compression
High Light:

750KG Cube Compression Testing Machine

,

1000KN Cube Compression Testing Machine

,

1000KN concrete cube testing machine

1000KN Cube Compression Testing Machine 750KG Electric Ball Screw Adjusting



1. Application

Digital display compression testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.



2. Product description:

* Structure: mainly composed by main unit, oil source and measuring control system.



* Space adjusting way: Electric ball screw adjusting to realize the compression space adjusting



* Measuring control system: The machine adopts hydraulic loading, the electronic testing load. With digital display load, loading rate, keeping maximum load, overload protection and outage data keeping and other.



* Safety protection device: When the test foce exceed the 3% of the maximum test force ,overload protection, the oil pump motor stop.



3. Main Specifications

Model BT-1000D BT-2000D BT-3000D
Max test force 1000kN 2000kN 3000kN
Test space adjusting way Electric ball screw adjusting
Control way Manual control loading process
Accuracy class 1 class
Test force range 4%~100%F·S
Test value accuracy Better than ±1%
Oil cylinder stroke 50mm

Max distance between upper

and lower plate

320mm 340 mm
Max distance between two columns 280mm
Upper and lower pressure plate 250×250mm 270*270mm
Main unit dimension 1000×500×1450mm
Power supply 2.0Kw/AC380V
Weight 1000Kg 1200kg



Product image

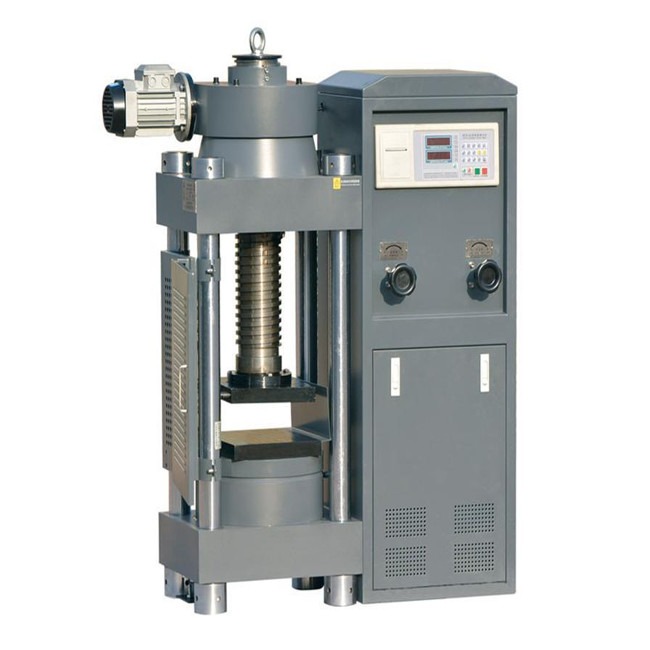

1000KN Cube Compression Testing Machine 750KG Electric Ball Screw Adjusting 0

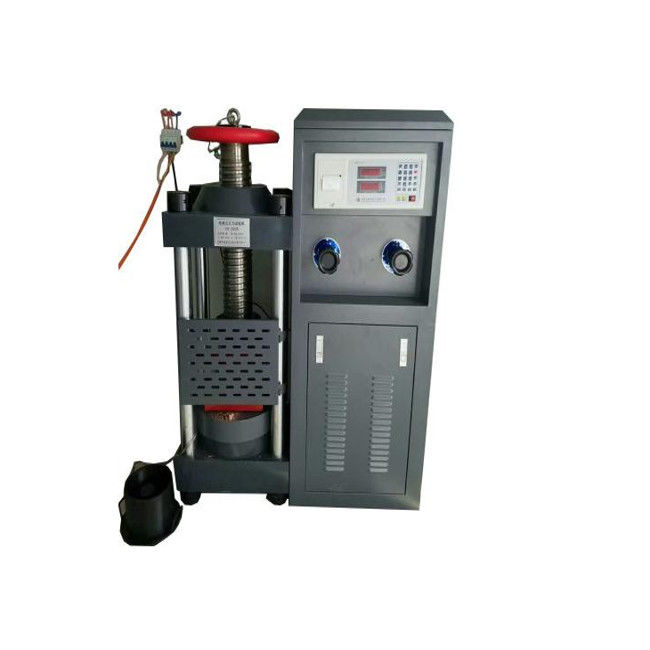

1000KN Cube Compression Testing Machine 750KG Electric Ball Screw Adjusting 1
