Laboratory Wear Resistance Wheel Universal Din Abrasion Tester Machine

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: BT008
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: PLY-WOODEN CASE
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000Set/month
Power:: Electronic Product Name:: Abrasion Test Machine
Load:: 2.5N,5N,10N Testing Speed:: 40rpm
Drum Length:: 460mm Abrasion Speed:: 0.32m/sec
High Light:

Electronic Din Abrasion Tester

,

Wheel Din Abrasion Tester

,

40rpm abrasion test machine

Laboratory Wear Resistance Wheel Universal Din Abrasion Tester Machine



Summary:



Din Abrasion Tester is suitable to determine the

wear resistance of elastic material, rubber, tires,

conveyor belts, shoe soles, soft synthetic leather

and other materials.



Principles:

Under a predetermined contact pressure and a given area ,the specimen with sandpaper angled to measure

abrasion resistance of the specimen subjected to rubbing on a certain level of sandpaper, sandpaper affixed

to the surface of the drum, samples pressed on a drum with sandpaper, and the specimen along the roller to

the lateral movement, abrasion resistance is produced at one end of the cylindrical specimen, tests the

value of the mass loss of the specimen, by the density of the specimen to calculate the amount of volume

abrasion.

Standards: DIN-53516; ISO-4649; BS903; PART9 GB-9867 etc.

Specifications :

Roll diameter 150mm
Fixture lateral displacement 4.2mm/hoop each lap
Rolling speed 40rpm
Load 2.5N, 5N, 7.5N, 10N
Specimen size  thickness 6mm~14mm
Dimension 850*380*400mm
Weight Approx 70kg
Power 220V 50HZ

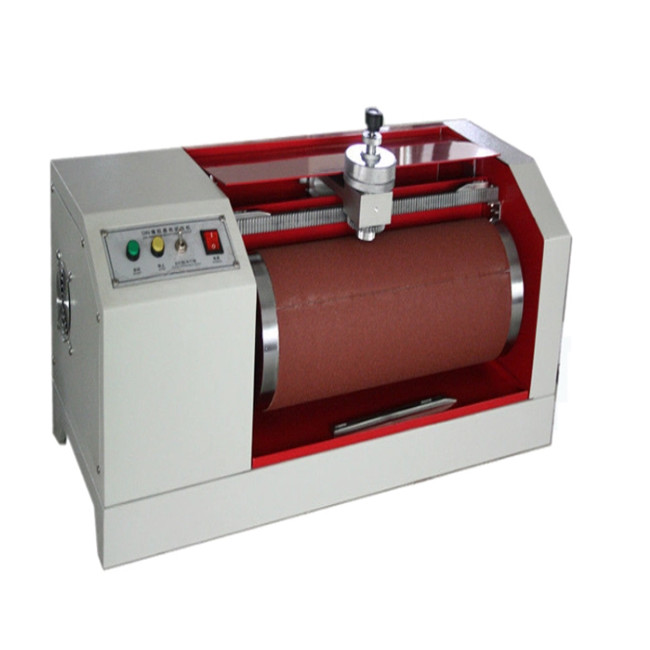

Laboratory Wear Resistance Wheel Universal Din Abrasion Tester Machine 0

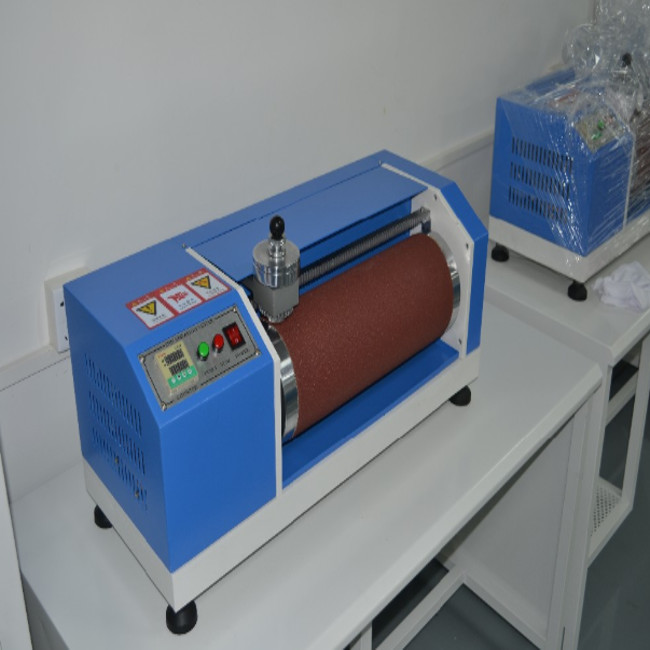

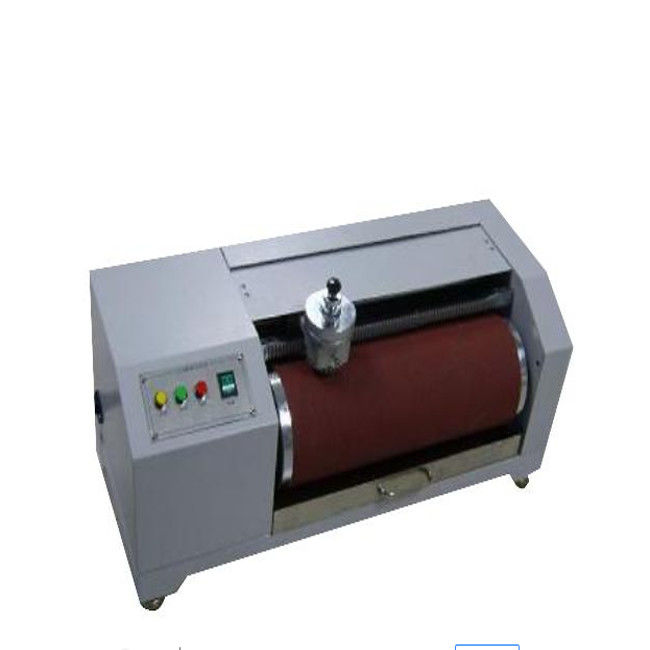

Laboratory Wear Resistance Wheel Universal Din Abrasion Tester Machine 1Laboratory Wear Resistance Wheel Universal Din Abrasion Tester Machine 2



Sample load 2.5N ±0.2N / 5 N ±0.2N
Roller wheel diameter (150 ±0.2)mm
Roller wheel length 460mm
Roller wheel revolving speed 40±1r.p.m
Abrasion stroke 40m equal to roller wheel turns number 84
Abrasion speed 0.32m/sec
Dip angle 3°(included angle between sample clamp holder and vertical plane of roller wheel)
Volume (approx.) 70cm ×30cm ×30cm
Weight (approx.) 50kg
Power AC 220V 3A(specified)























































Packing & Delivery

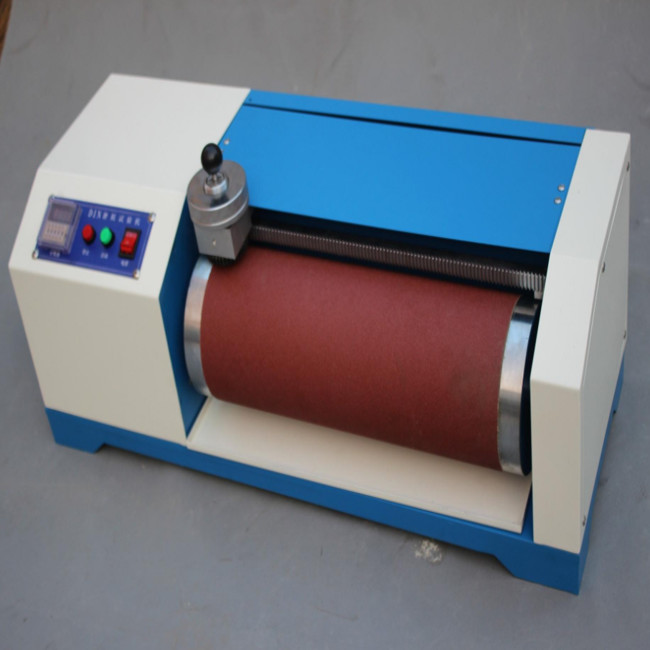

Laboratory Wear Resistance Wheel Universal Din Abrasion Tester Machine 3
