● Large viewing window with Interior lighting, easy to observe.
● Standard and Custom, We have different types for different sizes of samples.
● Water circulation system to save water and cost.
| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE |
| Model Number: | BT |
| Minimum Order Quantity: | 1 SET |
| Price: | 4000USD |
| Packaging Details: | Export carton |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/month |
| Power:: | Electronic | Machine Type: Rain: | Rain Spray Chamber |
|---|---|---|---|
| Swiping Pipe Radius:: | R400mm | Workroom Dimensio: | 800*800*800 |
| External Dimension (mm):: | 1020*1360*1560 | Water Spray Ring Radius:: | 375mm |
| Pendulum Swing Tube Range:: | ±45, ±60, ±90, ±180(theoretical Value) | Dust Concentration:: | 2~4kg/m3 |
| Selling Units:: | Single Item | Test Time:: | Dust Test Time Set Freely, 0~999.9hr |
| High Light: | IPX4 rain test chamber,weatherometer 400mm rain test chamber,weatherometer Waterproof ipx4 rain test |
||

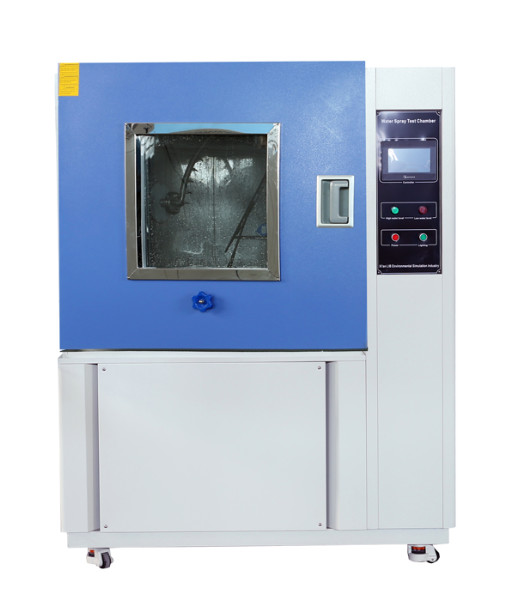

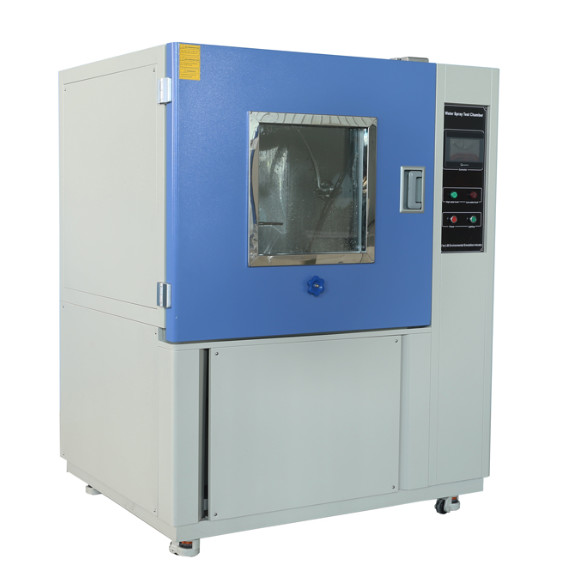

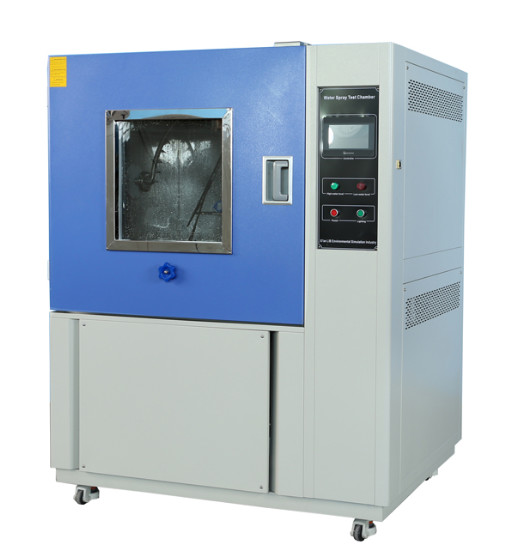

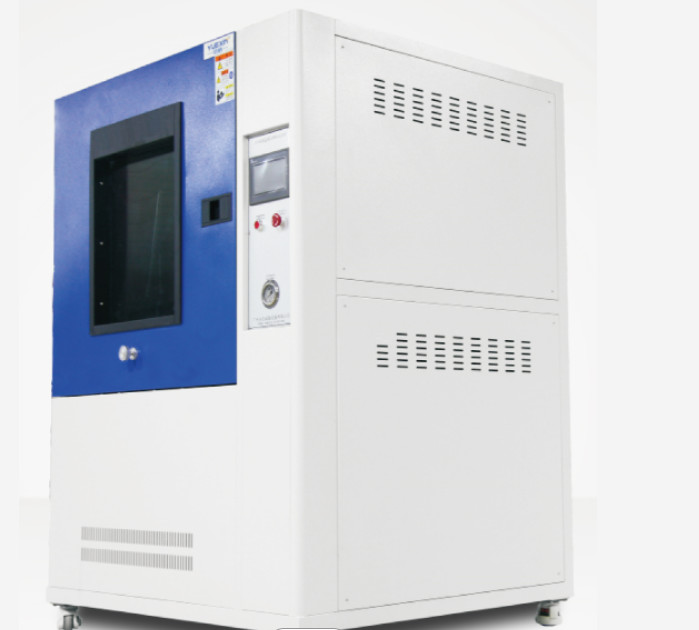

This Test Chamber used to test anti-rain and waterproof performance for products, the products such as .steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.
Rain / Water spray test chamber simulates the watet drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.
This product uses the scientific design makes the device capable of realistic simulation drip, water spray, splashing water, environmental, water and so on. Into the overall control system and the use of inverter technology, making the rotation angle of rainfall in the test frame, spray angle and swing the pendulum swinging spray volume can automatically adjust the frequency.
● Large viewing window with Interior lighting, easy to observe.
● Standard and Custom, We have different types for different sizes of samples.
● Water circulation system to save water and cost.
Product paramters
Product image
BOTO ADVANTAGE
Customers photos
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
