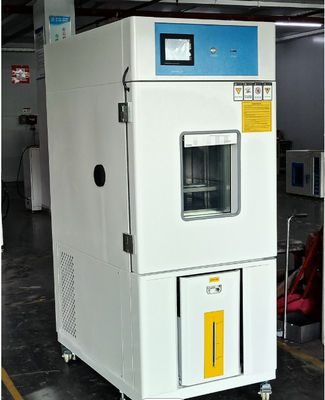

SUS304 Temp R404A Temperature Humidity Test Chamber Stability Equipment

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE
Model Number: BT
Minimum Order Quantity: 1 SET
Price: 4500USD
Packaging Details: Export carton
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 1000set/month
Power:: Electronic Temperature Range:: 70/-40~150C
Controller Accuracy:: ±0.3°C ±2.5%RH Fluctuation:: ±0.5°C ±2.5%RH
Temperature And Humidity Range: Range:: Optional Material:: #SUS 304 Stainless Steel
Refrigerants:: R4O4A USA Dupont Environmental Protection Refrigerant(R23+R40 Water Supplying Way:: Automatic Cycling Water Supply
Condensing Way:: Air-cooled Or Water-cooled
High Light:

R404A Temperature Humidity Test Chamber

,

SUS304 Temperature Humidity Test Chamber

,

SUS304 temp humidity chamber

Stability Chamber Temperature Humidity Chamber Environmental Test Equipment Temperature Humidity Test Chamber

Temperature humidity test equipment is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth. Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.



Features


1. Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel;
2. Use new high temperature resistant long shaft motor;
3 Turbine fan;
4. Silicone forced tight;
5. Overtemperature protection, super load automatic power system;
6. Circulation system: air force level cycle;
7. Heating system:PID+S.S.R;
8. The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function;
9. Timer: temperature to time, when the power failure alarm indication;

10. According to customer demand matching glass window can be customized according to customer specifications specified.



Application



This machine is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily. It can be filled with inert gases, which is especially for a rapid drying of some compound material.



Specifications




Model BT-280 BT-2150 BT-2225 BT-2408 BT-2800

Inner Size

W×H×D(cm)

40×50×40 50×60×50 60×85×80 60×85×80 100×100×80
Volume (V) 80 L 150L 225L 408L 800L

Temp and Hum

Range

A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C

RH20%-98%





Function





Fluctuation ±0.5°C ±2.5%RH
Deviation ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)

Controller

Analytical

Accuracy

±0.3°C ±2.5%RH





Material





Inner Wall #SUS 304 Stainless steel
Outer Skin #SUS 304 Stainless steel

Heat

Preservation

High temperature resistant,

high chlorine acid b vinegar foam insulation materials

Refrigeration Way Single stage compression refrigeration
Refrigerator French Tecumseh
Refrigerants R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way Air-cooled or water-cooled
Heater Nickel chrome heating wire heater
Humidifier Semi-closed steam and wet
Water Supplying Way Automatic cycling water supply




SUS304 Temp R404A Temperature Humidity Test Chamber Stability Equipment 0
SUS304 Temp R404A Temperature Humidity Test Chamber Stability Equipment 1



More products

SUS304 Temp R404A Temperature Humidity Test Chamber Stability Equipment 2



Company information



SUS304 Temp R404A Temperature Humidity Test Chamber Stability Equipment 3





BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.

SUS304 Temp R404A Temperature Humidity Test Chamber Stability Equipment 4



Main equipment include:

SUS304 Temp R404A Temperature Humidity Test Chamber Stability Equipment 5



In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



Main market:



SUS304 Temp R404A Temperature Humidity Test Chamber Stability Equipment 6





The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.



Production Details



SUS304 Temp R404A Temperature Humidity Test Chamber Stability Equipment 7



SUS304 Temp R404A Temperature Humidity Test Chamber Stability Equipment 8

SUS304 Temp R404A Temperature Humidity Test Chamber Stability Equipment 9





SUS304 Temp R404A Temperature Humidity Test Chamber Stability Equipment 10

FAQ



Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.



Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
