Checkweigher Conveyor 65m Min Checking Weight Machine RS232

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: BT1501
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: PLY-WOODEN CASE
Payment Terms: Western Union, T/T, D/P, MoneyGram
Supply Ability: 100000Set/month
Shell Material:: As Customer's Requirement Operation Display:: 8 Inches Touch Screen
Belt Speed:: 0-65m/min Seale Mark:: 0.1g
Certificate:: CE ROHS Belt Width:: 150mm Check Weigher Metal Detector
Display:: LCD Display Check Weigher Metal Detector Power:: 100-240V/50HZ
Usage:: Pharmaceutical, Food, Toys, Hardware, Chemical And Other Industries. Function:: Strong Self Diagnosis Function
High Light:

65m min checking weight machine

,

ip30 RS232 checking weight machine

,

ip30 checkweigher conveyor

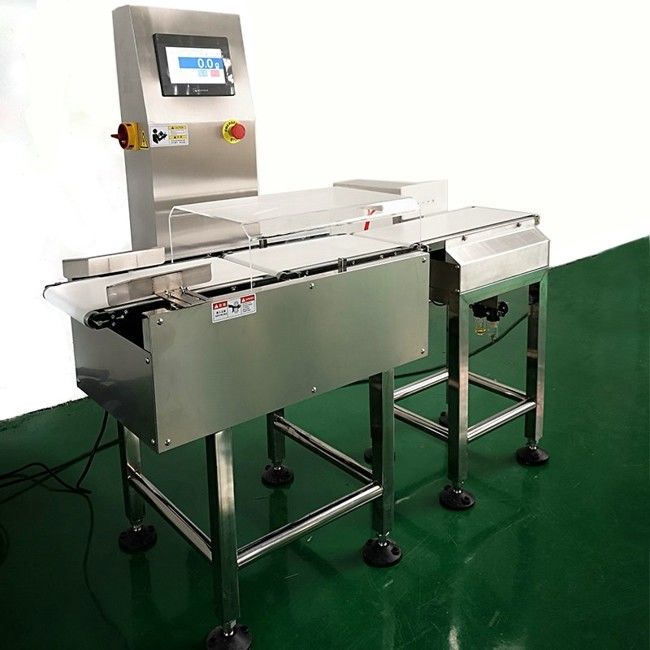

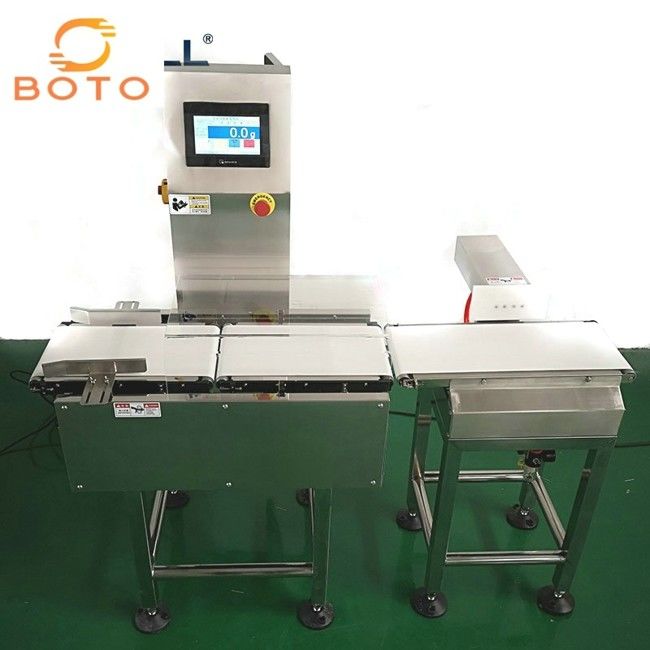

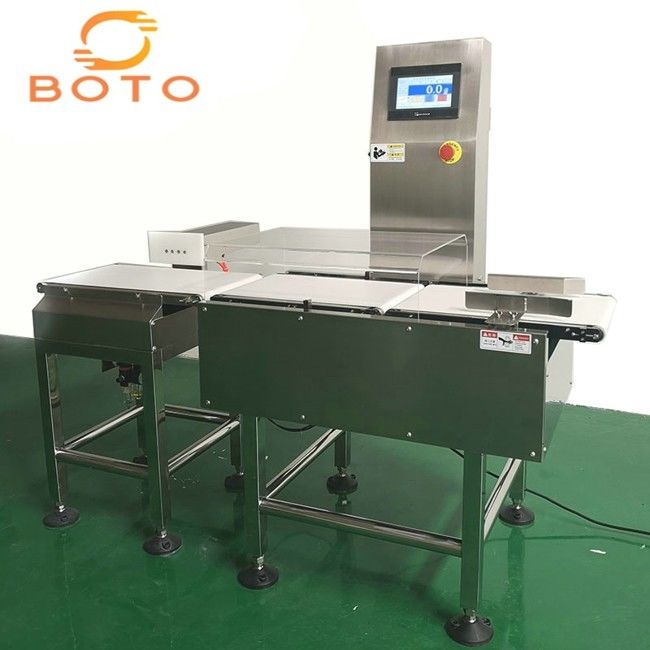

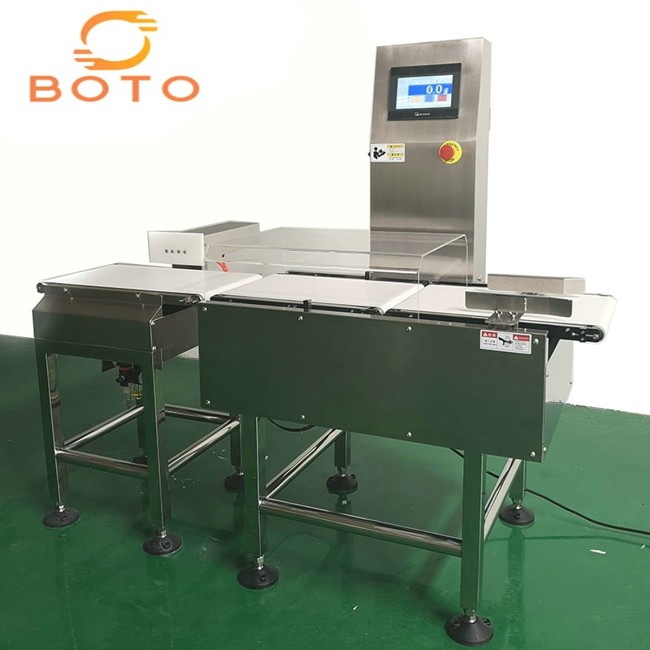

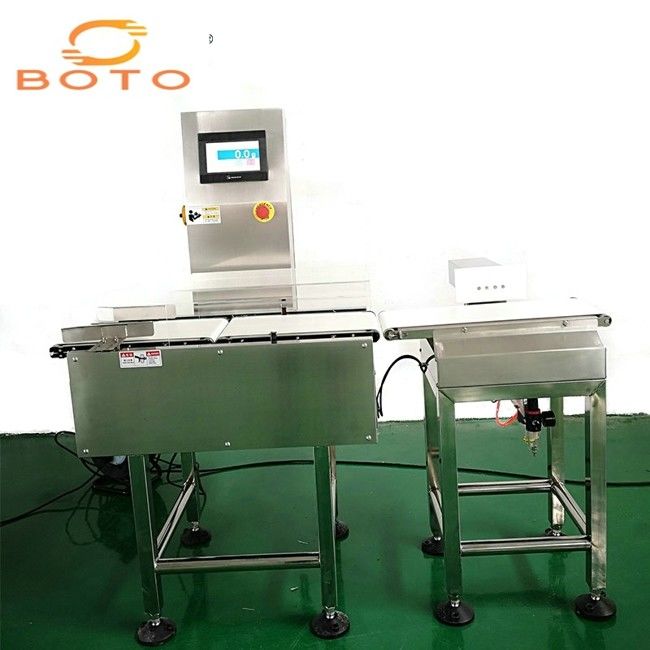

Food Inspection Combine Metal Detector And Check Weigher Combination Weight Checkweigher Machine



Food Metal Detector and Check Weighing Machinae is suitable for detecting the weight of various products and whether it contains metal. There are two push rods that can transfer the bag with excessive weight or light weight and the product containing metal to the next device.

It is widely used in the detection of meat, frozen meat, sea food, mushrooms, drinks ,fruits , Sugar, Salt and vegetables.



Principle:

Dynamic online weighing and overweight & underweight rejection.

Function:

It is used for checking if the finished products are within the preset standard

weight range, and automatically reject the substandard ones by dynamic

weighing and control system. Applicable for the chicken cages weighing and packaged chicken parts checkweighing.

Features:

1. Humanized structure design, easy to operate and clean.

2. Automatic zero tracking.

3. Flexible adjustment, applicable to products of multi specification range.

4. Resolution up to 16 bit weight measurement with 0.05% high accuracy.

5. 100 products parameters can be preset and called out.

6. High precision original Germany HBM digital load cell.

7. Rejection method: airjet, flapper, pusher and sliding for choice.

8. Weighing data output: RS232/485, USB, wireless data transmission, local

network station management platform, cloud platform



Specification:

Detection width : 30-80 cm, Customized
Detection height: 8-50cm Customized
Detection sensitivity: See below table
Alarm mode: The buzzer alarm, the motor automatically stop
Transfer speed: 25 meter / min or you can select adjust speed
Power: 100-265VAC, 50-60Hz (According to customer request)
Size: (150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H)
Reject system Option



The reality detector sensitivity depends on the products and operating environment . Please kindly see below:



Detected Height(mm) 80 100 150 200 250 300 350
Belt Width(mm) 250 250 400 400 400 400 400
Belt length 1500



Detector sensitivity(mm)

Fe 0.8 Fe 1.0 Fe 1.2 Fe 1.5 Fe 2.0 Fe 2.5 Fe 3.0
SUS 1.0 SUS 2.0 SUS 2.5 SUS 2.5 SUS 3.0 SUS 3.5 SUS 4.0
N-Fe 1.0 N-Fe 1.5 N-Fe 2.0 N-Fe 2.0 N-Fe 2.5 N-Fe 3.0 N-Fe 3.5
Speed of belt

25M/min (Fixed speed) ;

If you need adjust 5-40 M/min , please inform us before order

Load ability 20KG
Count 100
Warning method Sound and light alarm ; The belt can be stopped, continue run or belt return ( the option you can selected in PLC controller)
Reject Ways when has auto-reject system ,belt continue and rejecting the goods
Application Non-package ,plastic package ,paper bag or box (non-metallic) product
Work Environment Temperature -10℃-40℃ ,relative humility 30-90%
