10kN Universal Tensile Testing Machine LCF Plastic Mechanical

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE
Model Number: BT-10
Minimum Order Quantity: 1 SET
Price: 6000USD
Packaging Details: Export carton
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/month
Product Name: Plastic Tensile Testing Machine Impetus: AC Servo Motor
Weight: 500KG Test Accuracy: ±0.5%
Function: Tensile Test, Compression Test, 3-point Bending Test Maximum Test Value: 2000KN
Material: SUS304, #SUS 304 Stainless Steel Application:: Metal Material, Steel Wire, Bar, Plate, Rubber, Plastic Etc
High Light:

10kN Universal Tensile Testing Machine

,

LCF Plastic Universal Tensile Testing Machine

,

LCF Plastic universal mechanical testing machine

 10kN Electronic Plastic Tensile Testing Equipment Universal Tensile Strength Testing Machine

Application

This series computerized electronic universal testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.




Features



1. Full computer controlled of testing process.

2. Overload protection will secure operators

3. Adopt oil-hydraulic automatic clamps which can be operated from separate control box

4. Programmable testing software makes LCF testing or cyclic testing become available

Wedge tension jaw processed by advanced technology; increase the stiffness of crosshead under high load and high intensity test.

5. Powerful multifunctional control software will provide more testing methods to meet ASTM, ISO and other testing standards.



Function and performance index



Model

BT-

10/20/50

BT-

100

BT-

200/ 300

BT-

500/ 600

Max. Load

10kN

1000kgf

20kN

2000kgf

50kN

5000kg

100kN

10000kgf

200kN

20000kgf

300kN

30000kgf

500kN

50000kgf

600kN

60000kgf

Structure Floor Type
Control model Computer control

Constant stress, constant strain,

constant displacement

closed-loop control System

Load accuracy ≥±1% or ( ≥±0.5%)
Load range 2%-100% of full scale or (0.4%-100%)
Load resolution 1/20000 of full scale
Deformation test range / 2%~100
Deformation accuracy / ≥±0.5
Deformation resolution / 1/20000
Displacement accuracy ≥±1%
Disp. resolution 0.01mm
Displacement Test speed 0.005-500mm/min 0.001-200mm/min
Tensile space 700mm 650mm 600mm 650mm
Test width 400mm 450mm 550mm 650mm
Clamp way Manual clamp Hydraulic clamp

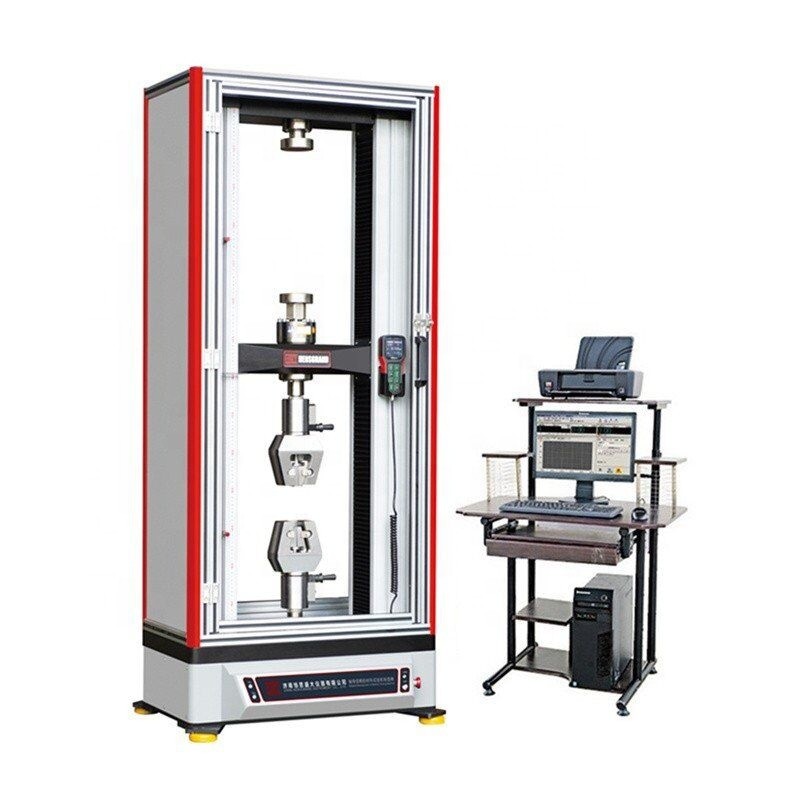

10kN Universal Tensile Testing Machine LCF Plastic Mechanical 0





Company Profile

BOTO Testing equipment Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

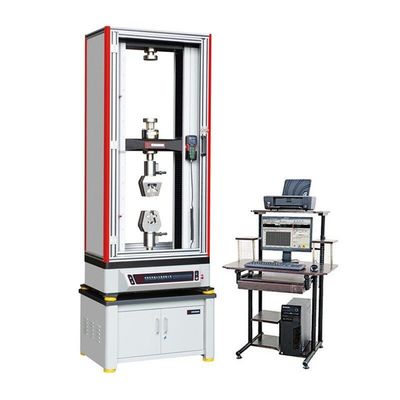

10kN Universal Tensile Testing Machine LCF Plastic Mechanical 1

Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.



BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

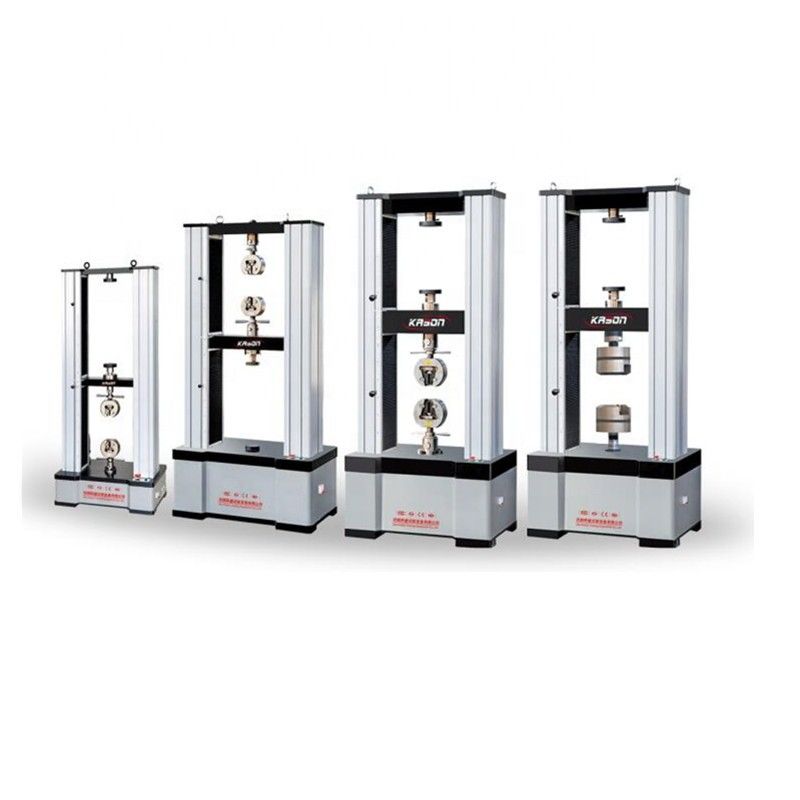

10kN Universal Tensile Testing Machine LCF Plastic Mechanical 2

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.



BOTO ADVANTAGE

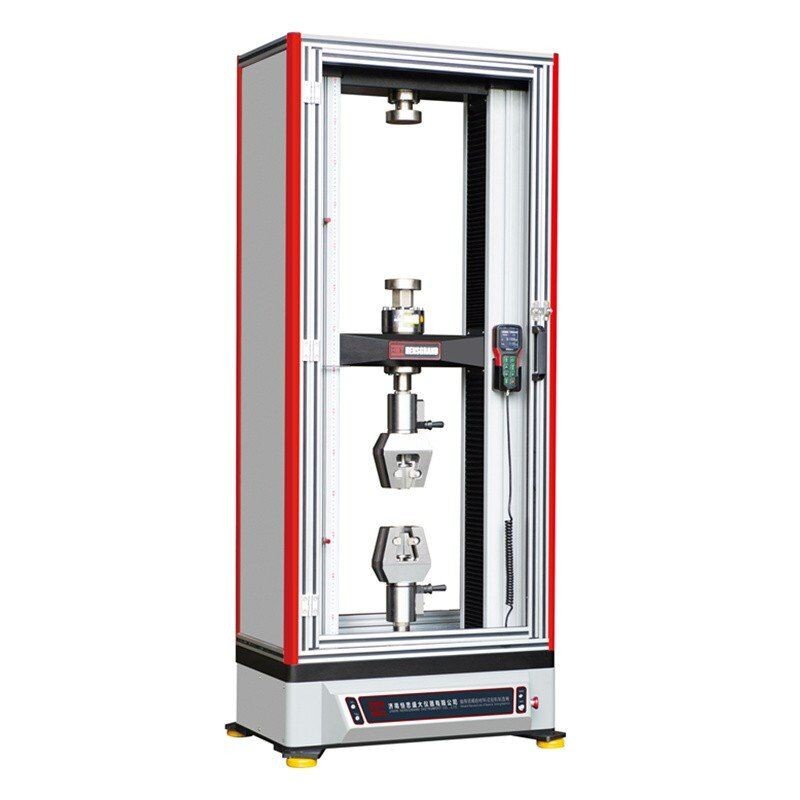

10kN Universal Tensile Testing Machine LCF Plastic Mechanical 3

FAQ



Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.



Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
