| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE |
| Model Number: | HZ-1003A |
| Minimum Order Quantity: | 1 SET |
| Price: | 3800USD |
| Packaging Details: | Export carton |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 Set/month |
| Product Name: | Universal Testing Machine | Impetus: | AC Servo Motor / Servo Drive Controller |
|---|---|---|---|
| Max Load: | 5KN, 10kN, 20kN, (option) | Test Accuracy: | 1 % /0.5 % |
| Function: | Tensile Test, Compression Test, 3-point Bending Test | Voltage: | AC220V 50HZ |
| Material: | SUS304, #SUS 304 Stainless Steel | Application:: | Metal Material, Steel Wire, Bar, Plate, Rubber, Plastic Etc |
| High Light: | 5KN Universal Tensile Testing Machine,200Hz Universal Tensile Testing Machine,200Hz electromechanical testing machine |
||

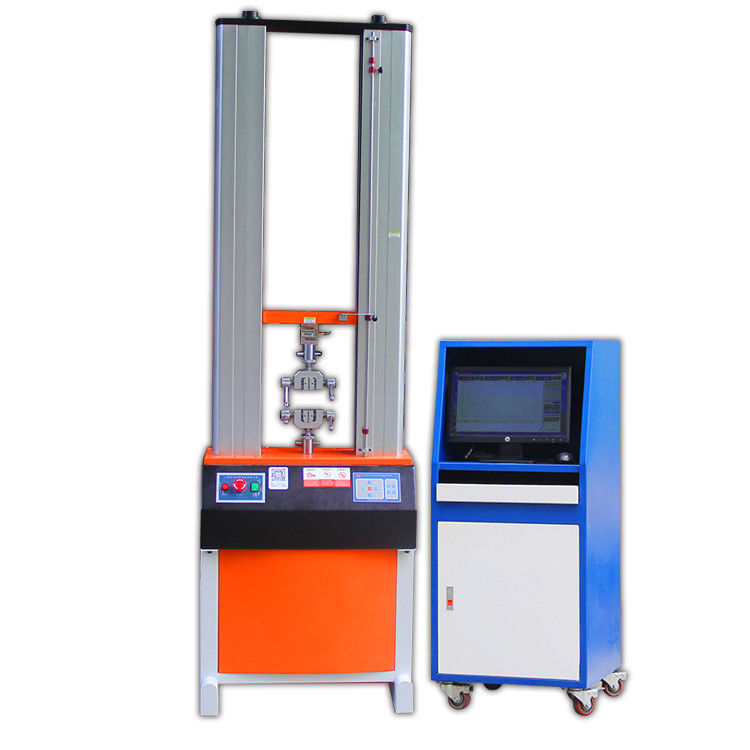

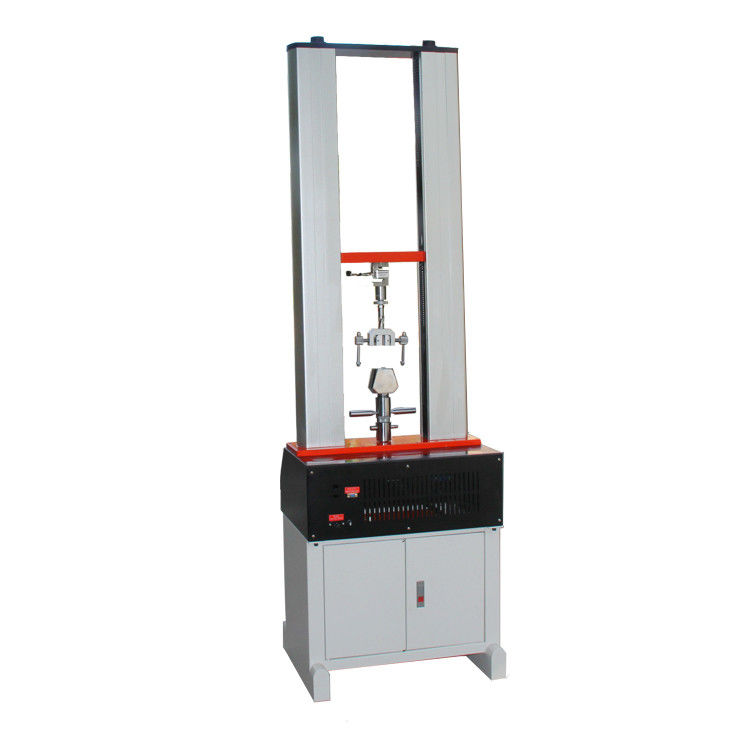

Equipment summary:
The machine is designed by mechanical-electrical integration, composition of the force-measuring sensor, transmitter, microprocessor, mechanism of load drive, computer and color inkjet printer. High-precision electronic motor can be set to five-speed, the components are connected by plug-way, Floor-standing models, it is taken account of modern industrial design and ergonomics in modeling and coating. It can be tested all the materials in stretch, compression, bending, shear, embedded relay, peeling, tearing, crack, etc,such as rubber, plastics, leather, metal, nylon wire, fabric, paper, aerospace, packaging, construction, petrochemical, electrical, vehicle, etc.
The implementation of standards and standard configuration:
1. GB/T4689.20-1996 Measuring fastness of leather’s adhesion
2. QB/T2710-2005 Measuring leather’s expansion and the rate of elongation
3. QB/T2711-2005 measuring tear force of leather
4. QB/T2712-2005 measuring leather’s strength and stretch of spherical crack test
Specifications:
A. High-precision sensor 1ton from U.S.A. Accurate Forces within ± 0.5%.
B. High-precision 24 bits A / D, sampling frequency 200Hz.

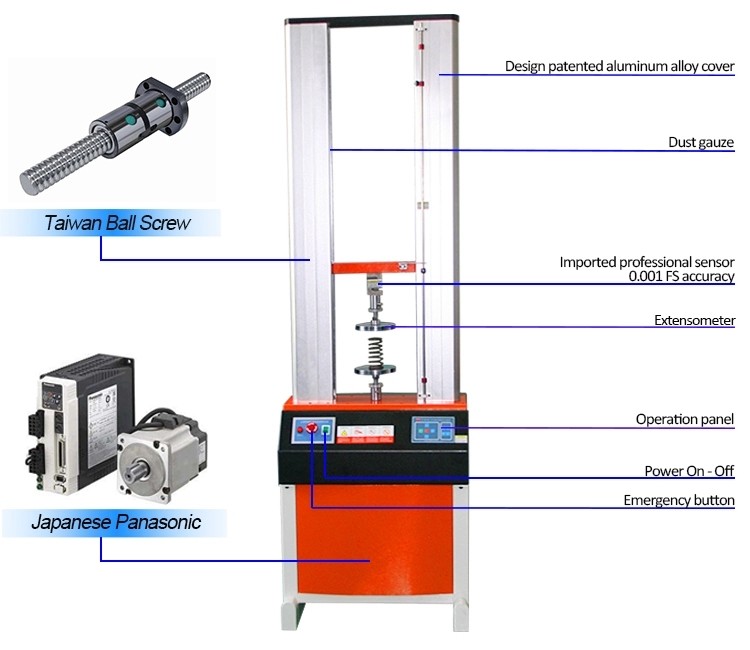

C. Power System: Panasonic AC Servo Motor + Driver + CAVEX + precision ball screw.
D. Control System: it is more precise using Pulse Command control modem, the range in speed control is 0.01 ~ 250 mm / min.the board of iron can be adjust to fast and slow by the control board. it is automatically saved after testing.
E. Data transmission: RS232 Transfer.
F. Display: windows XP test software.
G. Easy to control five speed and calibration system.
H. Test software can precision control in position, speed, rate of load force and rate of stress, satisfy the different requirements of test.
I. Test space: Testing width is about 400 mm (standard), moving space of active iron 1000mm. (excluding fixtures)
J. Displacement: coder 2500 P / R, increase four-time accuracy. adopt Japanese Lejing coder that has strong anti-jamming capability, displacement resolution 0.001mm.
Small deformation: Metal extensometers, parsing 0.001mm.
K. Safe equipment : the system would shut down if overload or over-trip
Technical parameter:
| Model | HZ-1004A Computerized Universal Tensile Tester |
| Max load | 500N,1KN,2KN |
| Accurate grade | 1 grade /0.5 grade |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | the value ±1%/ the value±0.5% |
| Tester resolution | Max load 1/200000, constant the resolution |
| Load sensor |
Basic configuration:sensor(max load): one Extended configuration:can add more sensors |
| Effective tensile space | 1000,1200,1400mm(can be increased the height according to customer"s requirement) |
| Effective testing width | 300mm |
| Range of testing speed | 0.001~500mm/min |
| Accruacy of displacement measurement | Tolerance: ±0.5%/ tolerance: ±0.2% |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow two speeds to control,can jog |
| Return back | Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%,automatic protection |
| fixture | A set of tensile fixture |
| Machine size | 650×360×2100mmm (lenght*width*height)(including the height of operative table) |
| Power system | Panasonic AC Servo Motor + Driver |
| Power supply | 220V,50HZ |
| Power | 0.4KW(depending on different demand of force, using different motor) |
| Machine weight | (about)260 Kg |

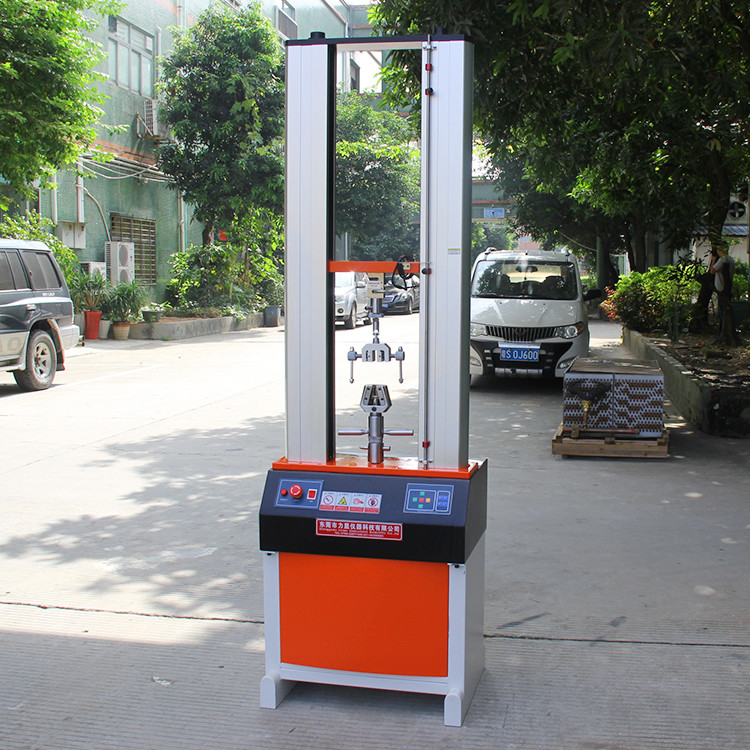

Production machine
Company introduction
BOTO Testing equipment Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.
Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.
BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.
Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
Our Services
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.
3) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show production process.
After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
