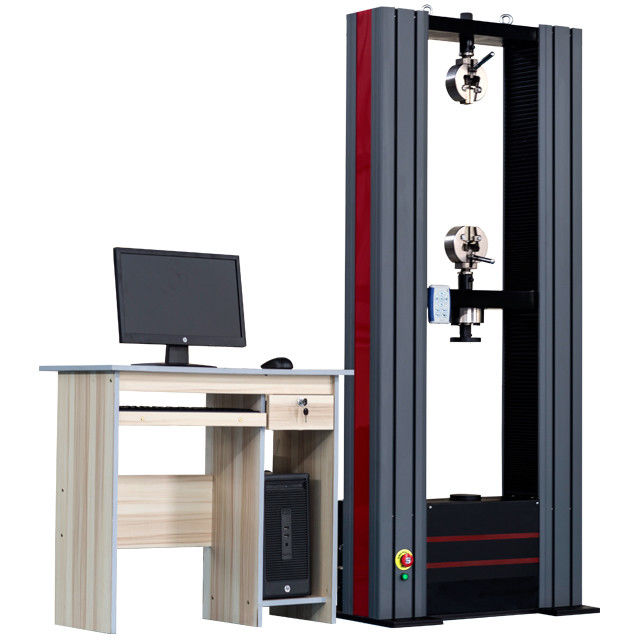

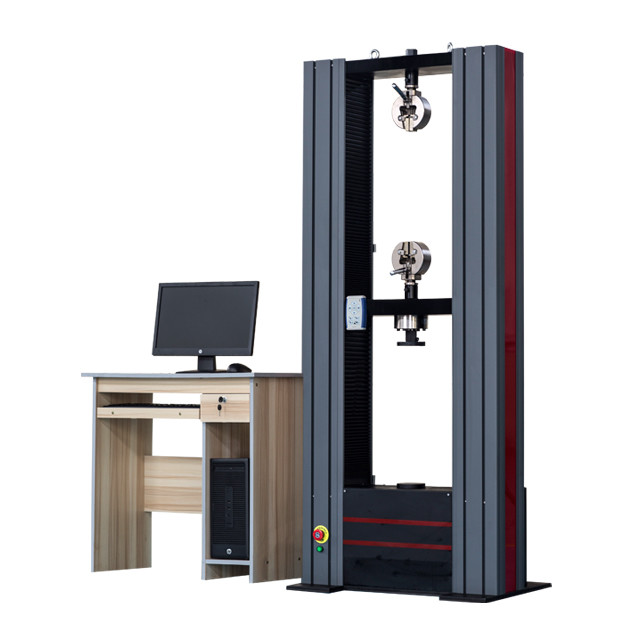

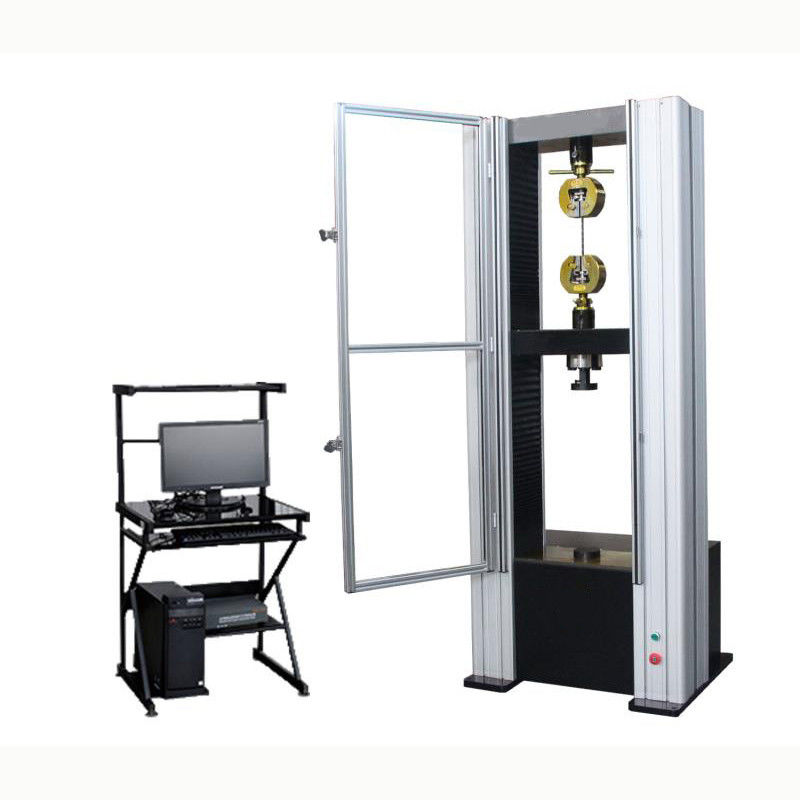

Electronic 50Kn HZ 1003A Universal Testing Machine Tensile Test

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE
Model Number: HZ-1003A
Minimum Order Quantity: 1 SET
Price: 3800USD
Packaging Details: Export carton
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/month
Product Name: Universal Testing Machine Impetus: AC Servo Motor / Servo Drive Controller
Max Load: 5KN, 10kN, 20kN, (option) Test Accuracy: 1 % /0.5 %
Function: Tensile Test, Compression Test, 3-point Bending Test Voltage: AC220V 50HZ
Machine Weight: 220KG Size: 560*380*1600
High Light:

50Kn universal testing machine tensile test

,

HZ 1003A universal testing machine tensile test

,

50hz rubber 50Kn tensile tester

50Kn Electronic Universal Tensile Testing Machine For Steel Wire Tensile Strength Test

Equipment summary:

This testing machine is used for wood testing of wood-based panel, plywood, wood, composite floor, etc. Its main testing functions are: nail holding force, adhesive strength, adhesive strength, internal bonding strength, warp bending strength and other mechanical tests.



Tensile testing machine has beautiful appearance, convenient operation and reliable performance.This machine adopts ac servo control motor and ac digital servo control system as the drive, the arc synchronous belt and synchronous belt wheel deceleration system precision ball screw driven by gear after loading, complete sample a variety of mechanical properties test.



Features:

1.A testing machine integrates various independent testing functions such as tension, compression, bending, tearing, and peeling, providing a variety of test items for users to choose;
2.The synchronous belt drives the ball screw to rotate, ensuring high-precision and stable operation;
3.1 ~ 500mm/min stepless speed change, which provides users with convenient testing of different test conditions;
4. Multi-level limit protection, overload protection, automatic high-speed return, fault prompts and other intelligent configuration to ensure the safety of the user's operation;
5. Portable manual control system to facilitate the user to quickly perform test operations, effectively ensure the safety of the system, and the reliability of the test operation;
6.The equipment adopts miniaturization and structural integration design to meet the test requirements for various occasions;
7.Professional software provides group test curve overlay analysis and statistical analysis of maximum, minimum, average, standard deviation, etc.



Technical parameter:

Model Artificial board testing machine
Max load 500N,1KN,2KN
Accurate grade 1 grade /0.5 grade
Effective measuring range 0.2%~100%(1grade)/0.4%~100%(0.5 grade)
Measuring accuracy the value ±1%/ the value±0.5%
Tester resolution Max load 1/200000, constant the resolution
Load sensor

Basic configuration:sensor(max load): one

Extended configuration:can add more sensors

Effective tensile space 1000,1200,1400mm(can be increased the height according to customer"s requirement)
Effective testing width 300mm
Range of testing speed 0.001~500mm/min
Accruacy of displacement measurement Tolerance: ±0.5%/ tolerance: ±0.2%
safety Electronic-limit protection
Testing platform moving device Fast /slow two speeds to control,can jog
Return back Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection Overload 10%,automatic protection
fixture A set of tensile fixture
Machine size 650×360×2100mmm (lenght*width*height)(including the height of operative table)
Power system Panasonic AC Servo Motor + Driver
Power supply 220V,50HZ
Power 0.4KW(depending on different demand of force, using different motor)
Machine weight (about)260 Kg

Electronic 50Kn HZ 1003A Universal Testing Machine Tensile Test 0

Company information

BOTO Testing equipment Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

Electronic 50Kn HZ 1003A Universal Testing Machine Tensile Test 1

Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.

Electronic 50Kn HZ 1003A Universal Testing Machine Tensile Test 2

BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Electronic 50Kn HZ 1003A Universal Testing Machine Tensile Test 3

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.



Production machine

Electronic 50Kn HZ 1003A Universal Testing Machine Tensile Test 4



Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
