SSR Machine 60hZ Salt Spray Test Chamber GB LCD Touch Screen

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: BT
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: PLY-WOODEN CASE
Delivery Time: 20-30workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000Set/month
Power:: Electronic Design Standard:: GB/T 10587-2006,GB/T 10125-1997
Test Chamber Volume:: 108L/270L/600L/1440L Or Custom Made Spray Quantity:: 1.0~2.0ml/80cm2/h
PH:: 6.5~7.2 3.0~3.2 Warranty:: 1 Year
Test Chamber Temperature:: NSS.ACSS 35°C±1°C/CASS 50°C±1°C Saturated Air Cylinder Temperature:: NSS.ACSS 47°C±1°C/CASS 63°C±1°C
Controller:: PID Or LCD Touch Screen Power Supply:: 220V 50Hz / 380V 60hZ
High Light:

60hZ Salt Spray Test Chamber

,

SSR Salt Spray Test Chamber

,

SSR salt spray test machine

Paint Salt Fog Corrosion Test Equipment Chamber Salt Spray Test Machine Salt Spray Test Chamber



1. The system has leakage protection function;

2. The studio has dual functions of electronic over-temperature protection and mechanical over-temperature protection;

3. Electronic over-temperature protection in saturated barrel;

4. The saturator will automatically alarm for dry burning and automatically turn off the system power;

5. Decompression and control device with dual injection pressure of air inlet and outlet;

6. There is an anti-aging overflow hole at the bottom of the laboratory;

7. Over current protection;

8,The non-contact SSR solid state relay temperature control method has the characteristics of no arc and noise;

9. Grounding protection.

Random Accessories

1: V-shaped/O-shaped shelf 1 set

2: Reagent sodium chloride 2 bottles (500g/bottle)

3: Operation manual 1 copy

4: 1 plastic anti-rust bucket (5L capacity)

Customized:

Model BT-609-60 BT-609-90 BT-609-120 BT-609-200
Test chamber capacity (L) 108L 270L 600L 1440L
Max capacity of test liquid(L) 15 25 40 40
Test chamber size L*W*D(cm) 60*45*40 90*60*50 120*100*50 200*120*60
Outside Volume L*W*D(cm) 107*60*118 141*88*128 190*130*140 270*150*150
Power AC220V,10A AC220V,15A AC220V,30A AC220V,30A



Temperature

Test chamber NSS.ACSS 35℃±1℃/CASS 50℃±1℃
Air cylinder NSS.ACSS 47℃±1℃/CASS 63℃±1℃
Water adding device Automatic
Power AC220V,10A
Spray quantity 1.0~2.0ml/80cm2/h
PH 6.5~7.2 3.0~3.2



Product Effects

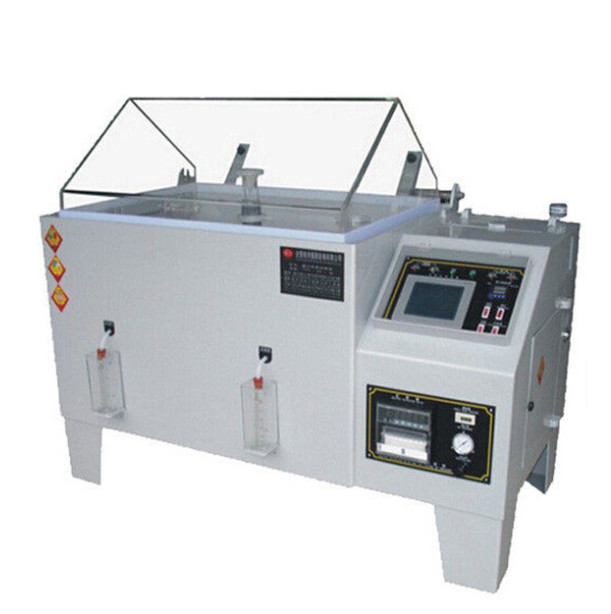

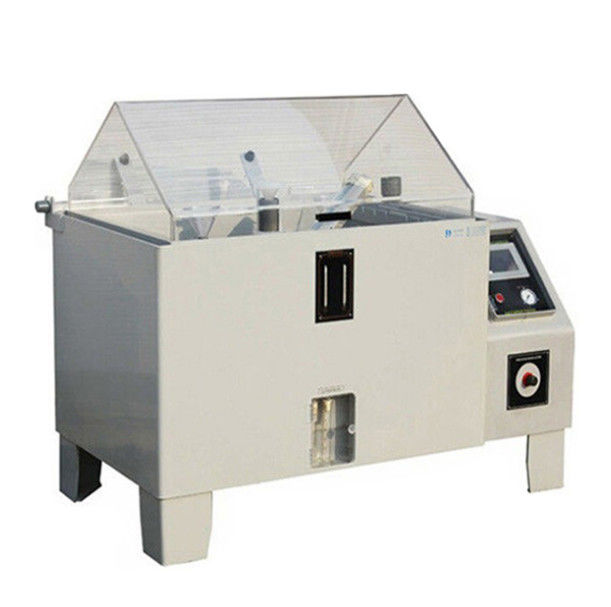

SSR Machine 60hZ Salt Spray Test Chamber GB LCD Touch Screen 0

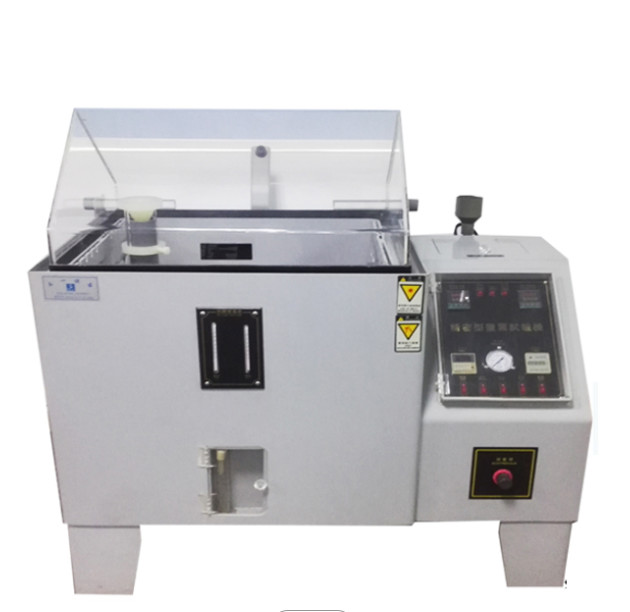

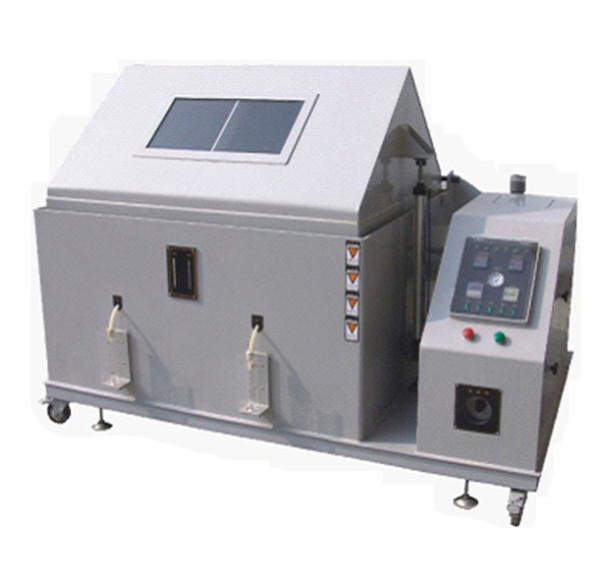

SSR Machine 60hZ Salt Spray Test Chamber GB LCD Touch Screen 1

Packing&Shipping



SSR Machine 60hZ Salt Spray Test Chamber GB LCD Touch Screen 2







FAQ



 1. How can we guarantee quality?
Continuous testing is performed after production is completed to ensure product stability.
All parts come from manufacturers of world-renowned brands.


2.What can you buy from us?
Checkweigher,Packing machine,CNC machine

3. why should you buy from us not from other suppliers?
We are a manufacturer with ISO9001, CE international certificates,
*12+ years of production experience
* 10+ years of foreign trade experience
*10+ national technology patents
*Exported more than 1,000 units without receiving complaints from customers

4. what services can we provide?
warranty:12 months free warranty, life-long maintenance.
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
