Battery Performance FRP EN PID Singleton Spray Salt Fog Test Chamber

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: BT
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: PLY-WOODEN CASE
Delivery Time: 20-30workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000Set/month
Power:: Electronic Controller:: PID
Power Supply:: 220V 50Hz Color:: Requirement
Standard:: ASTM ISO EN JS Warranty:: 1 Year
Volumn:: Customize Spray Quantity:: 1.0~2.0ml/80cm2/h
PH:: 6.5~7.2 3.0~3.2 Application:: Hardware, Battery Etc
High Light:

EN PID salt fog test chamber

,

FRP aging salt fog test chamber

,

FRP singleton aging salt spray chamber

Battery Performance Test Salt Spray Test Chamber Salt Spray Test Chamber



Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.



Product Features:

FRP material forming, high temperature, never leak
Special nozzle design, spray evenly
Cycle and continuous spray selection, suitable for a variety of test standards
FRP structure suitable for neutral salt spray test, acid salt spray test and high temperature salt spray test


The main products with salt:
Neutral salt spray test
Acid salt spray test
High temperature salt spray test (FRP opaque cover)
Mainly used for hardware, electroplating industry for salt spray corrosion resistance test



It is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.



Characteristics:
1. Spray nozzle the heart of teser adopt Bo Nute Principle which change saline water into atomization but no crystallization produced.

2. Controller is digital type microcomputer which delivers precision temparature.

3. Parameters show on the display screen such as temparature, humidity, pressure, spray capacity and time.

4. Test specifications are accept worldwild.

Specifications
Model BT-609-60 BT-609-90 BT-609-120 BT-609-150 BT-609-200
Design standard

GB/T 10587-2006, GB/T 10125-1997,

JIS-D0201, H8502, H8610, K5400, Z2371

Test chamber capacity(L) 108L 270L 600L 750L 1000L



Temperature

Test chamber NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Saturated air cylinder NSS.ACSS 47°C±1°C/CASS 63°C±1°C

Test chamber size

L×W×D(cm)

60*45*40 90*60*50 1200*1000*500 1500*1000*500 2000*1000*500
Max capacity of test liquid(L) 15 25 40 40 40
Power AC220V,10A AC220V,15A AC220V, 30A AC220V, 30A

AC220V, 30A





Product Effects

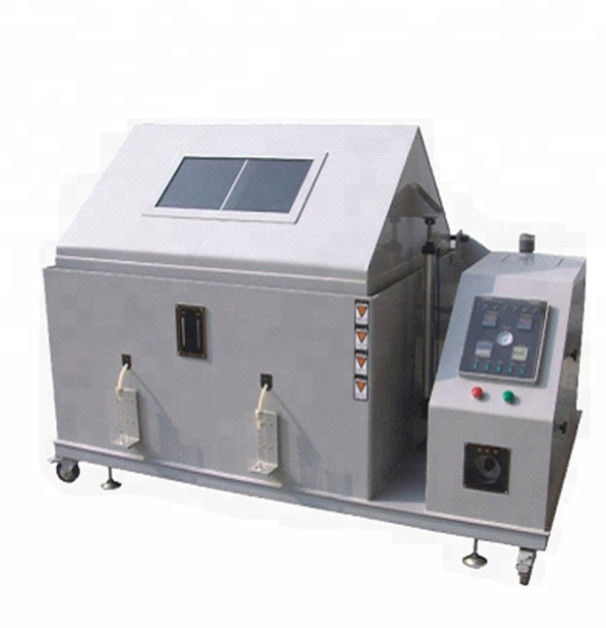

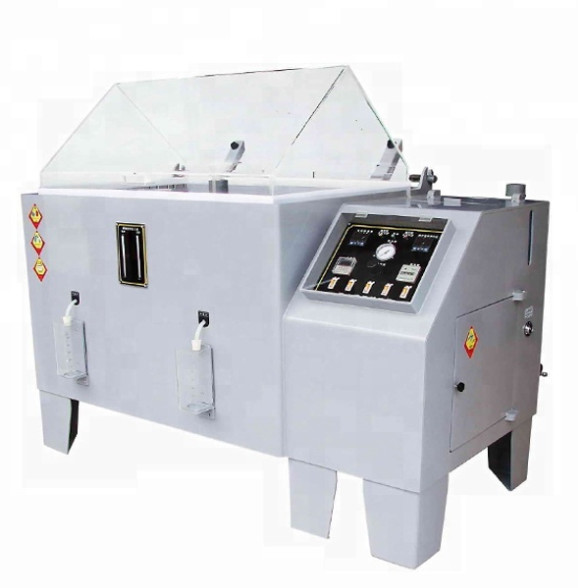

Battery Performance FRP EN PID Singleton Spray Salt Fog Test Chamber 0

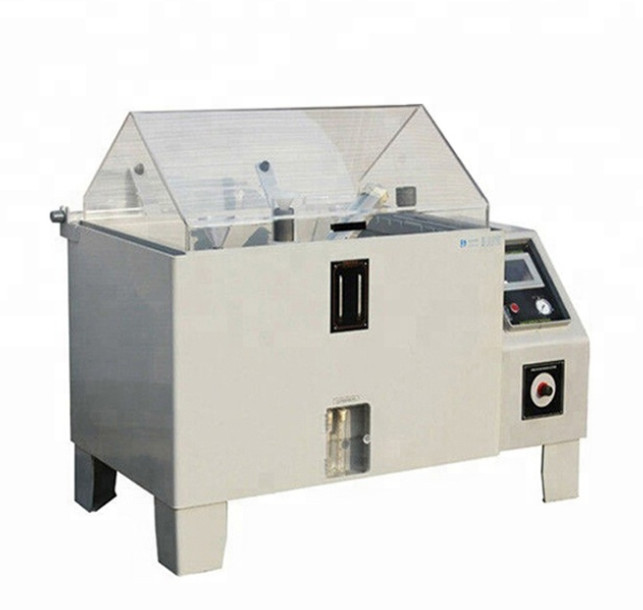

Battery Performance FRP EN PID Singleton Spray Salt Fog Test Chamber 1



Packing & Delivery

  • PP film first
    2. Vacuum package
    3. PP film again
    4. 10mm thickness PU foam to avoid collision
    5. Strong wooden case
    6. Standard BOTO MACHINE MARK

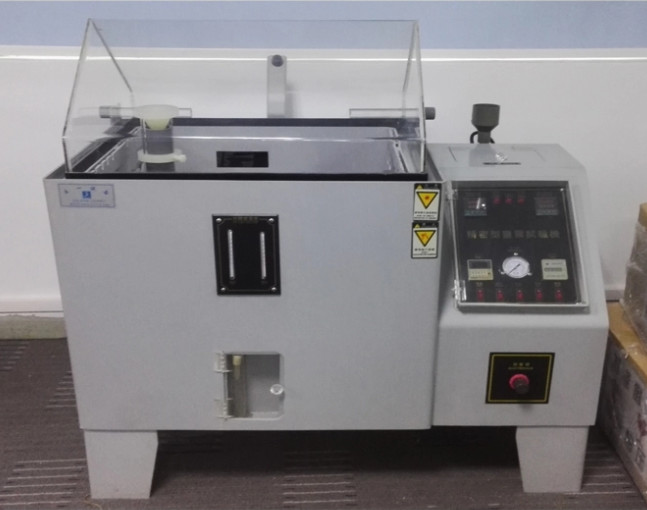

Battery Performance FRP EN PID Singleton Spray Salt Fog Test Chamber 2
