| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO |
| Model Number: | BT |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiation |
| Packaging Details: | PLY-WOODEN CASE |
| Delivery Time: | 20-30workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000Set/month |
| Power:: | Electronic | Product Name:: | CASS Acetic Acid Corrosion Salt Spray Test Chamber |
|---|---|---|---|
| Inner Dimension:: | 600*900*500mm (D*W*H) | Overall Dimension:: | 870*1400*1150mm(D*W*H) |
| Temperature Range:: | Ambient To 60 Degree | Humidity Range:: | 95%to 98% R.H |
| Salt Spray Type:: | Continuous/Periodic | Continuous/Periodic: | Platinum Resistance PT100 Ω/MV |
| Spraying System:: | Tower Spray And Nozzle | Standard:: | ASTM ISO EN JS |
| High Light: | CASS corrosion test chamber,Acetic Acid corrosion test chamber,Acetic Acid salt spray test equipment |
||

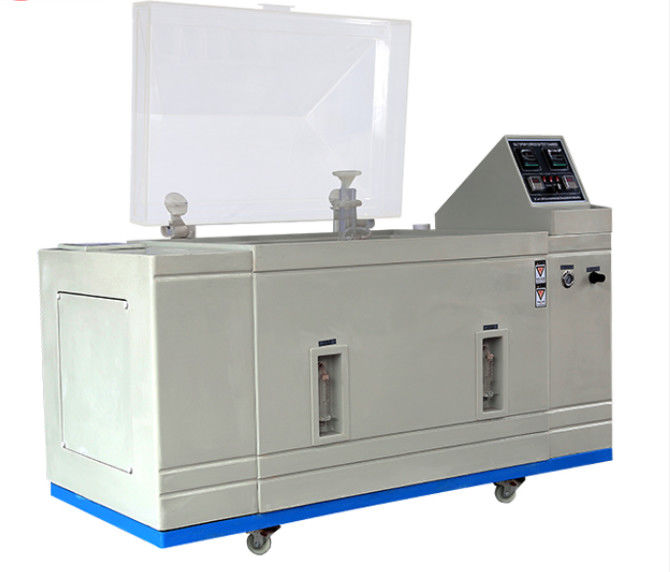

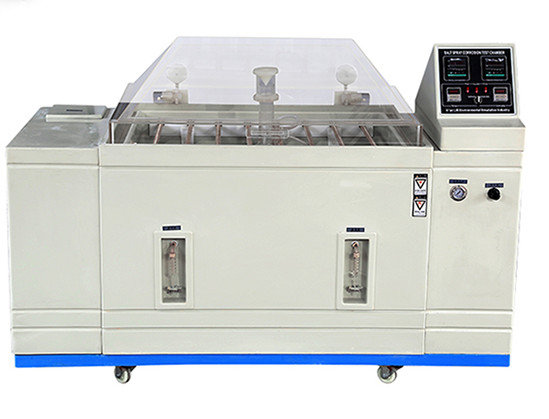

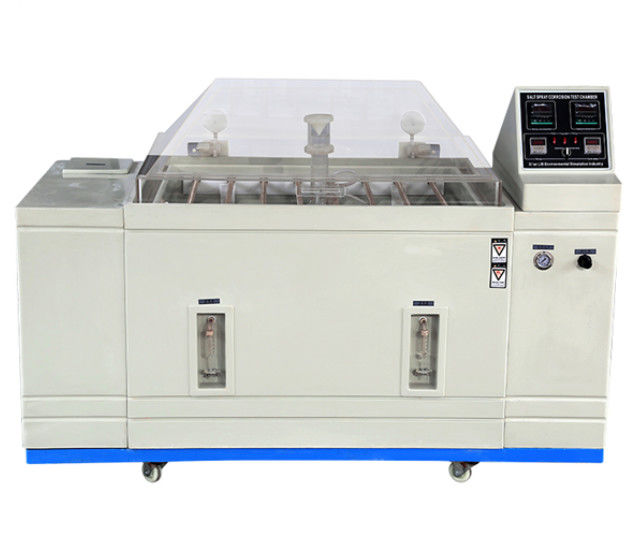

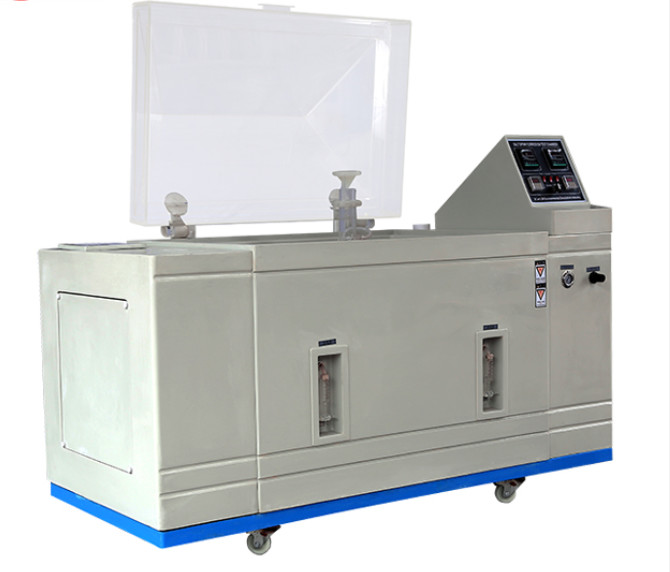

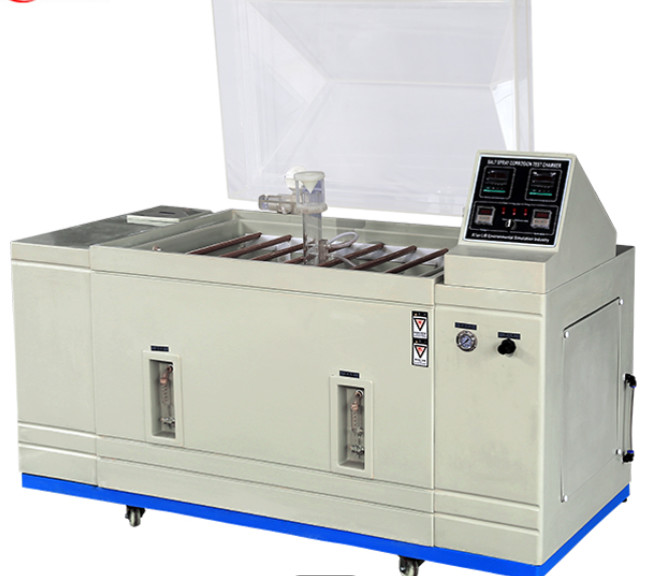

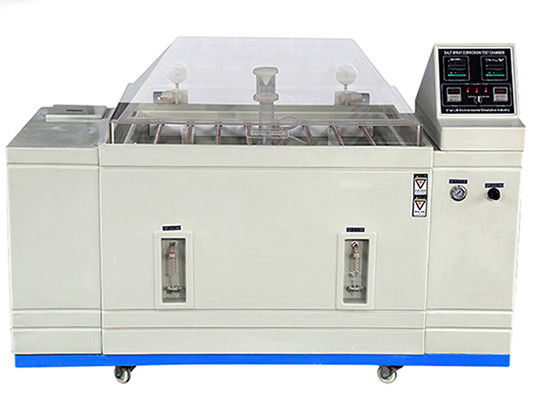

1. Description of CASS Acetic Acid Corrosion Salt Spray Test Chamber
Application: Salt Sparying Machine is used to test the anti-corrosion quality of all the materials surfaces of painting, coating, electroplating in condition of salt spray environment.
2. Standard Features of CASS Acetic Acid Corrosion Salt Spray Test Chamber
♦ Material is Glass fiber reinforced plastics
♦ Saturated barrel temperature control and display Unit
♦ Corrosion-resistant atomizer tower with quartz spray nozzles
♦ Spray deposition is 1~2ml / 80cm2 · h
♦ Continuous / periodic salt spraying
♦ Temperature sensor PT-100 MV A-class
♦ Saturated barrel, 31Liter
♦ 2 fog collectors in cabinet
♦ Standard sample holders
♦ Protection System
| Name | New Neutral Salt Spray Corrosion Test Equipment | ||
| Model | BT-150 | BT-250 | BT-750 |
| Internal dimensions (mm) | 470*590*400 | 640*1000*500 | 750*1100*500 |
| Overall dimensions (mm) | 620*1400*1050 | 810*1800*1180 | 920*1900*1200 |
| Temperature range | Ambient ~60℃ | ||
| Humidity range | 95% ~ 98% RH | ||
| Spray deposition | 1~2ml / 80cm2 · h | ||
| Spray type | Continuous / Periodic | ||
| Temperature Controller | LED display, P.I.D+S.S.R. microcomputer integrated controller | ||
| Standard | ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227 | ||
| Power Supply | 220V 50HZ | ||
Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.
Company Profile
BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
Main equipment
In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.
Main market
The factory has the ability to calibrate, and the customer can also designate a ISO 17025 accredited third-party organization to calibrate and issue a calibration report.
Certification
The certificate is valid until June 17, 2024
Cooperative partners
BOTO ADVANTAGE
Customers photos
FAQ
1. How can we guarantee quality?
Continuous testing is performed after production is completed to ensure product stability.
All parts come from manufacturers of world-renowned brands.
