| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO |
| Model Number: | BT006 |
| Minimum Order Quantity: | 1Set |
| Price: | Nigotation |
| Packaging Details: | PLY-WOODEN CASE |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 SET/ MONTH |
| Size Of Specimen:: | 10*10*55mm | Power:: | Custom |
|---|---|---|---|
| Test Material:: | Metal Materilas, U And V Notch | Test Standard:: | ASTM E23, EN 10045-2 |
| Impact Energy:: | 150J, 300J, 450J, 600J, 750J | Application:: | Metal |
| Function:: | Impact Test | Standard:: | ASTM ISO EN JS |
| High Light: | 300J charpy pendulum impact test,Digital charpy pendulum impact test,300J pendulum impact testing machine |
||

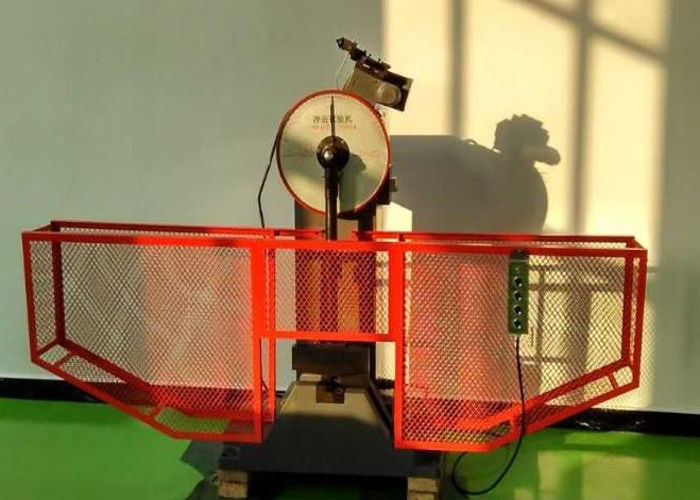

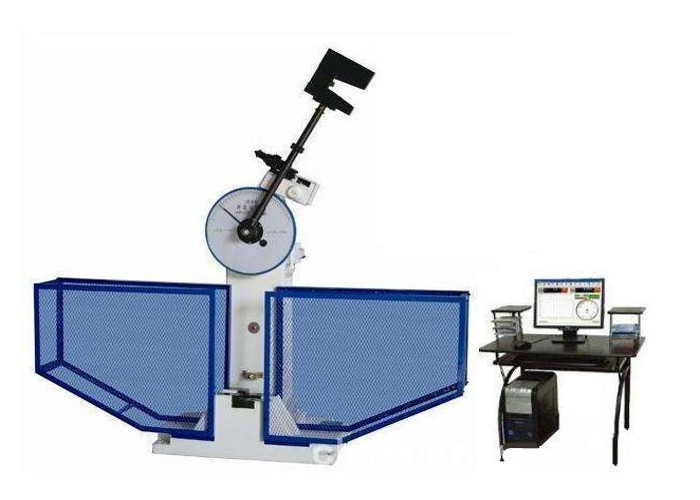

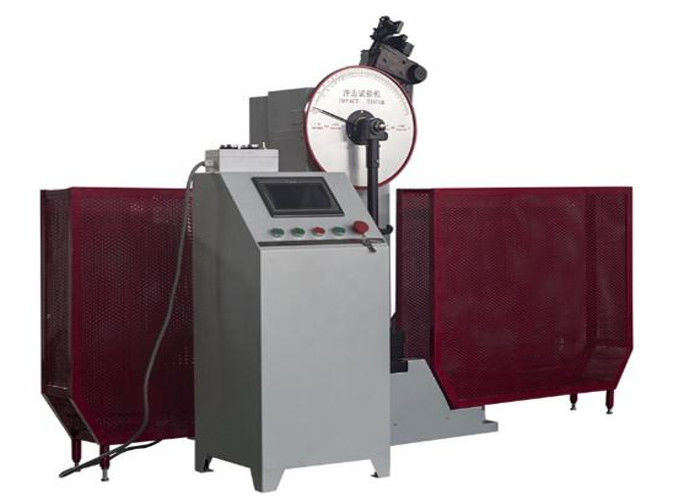

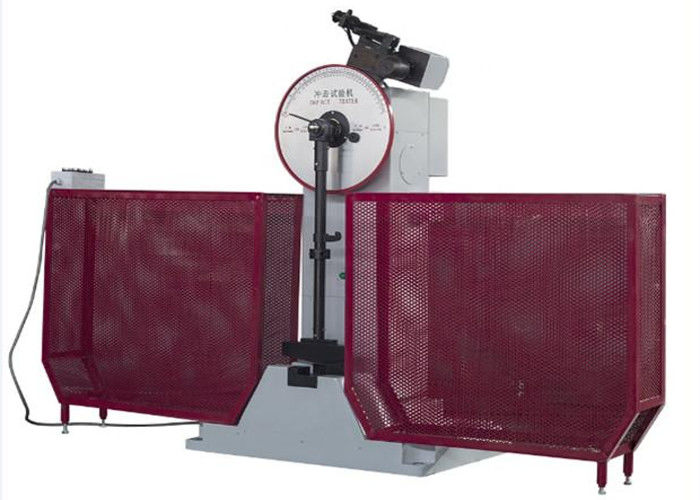

300J 500J V Charpy Pendulum Impact Tester Digital Impact Strength Tester Charpy Impact Testing Machine
1. Standards:
JBS-B series impact testers are strictly designed according to the standards ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
2. Application & Features:
They are mainly used to determine the anti-impact capability of metal materials under dynamic load. They are the best testing equipments for many metal material manufactories, quality inspection departments and universities. The results will be displayed on both digital screen and dial gauge. JBW-C series impact testers can use pendulum’s residual impact energy to achieve the re-raising of pendulum, so as to save energy. The results can be printed out, be applicable for mass testing departments.
3. Main Technical Specifications:
| Impact energy | 300J(big hammer) 150J(small hammer) |
| Impact speed | 5.2m/s |
| Pendulum angle | 150° |
| Span of specimen base | 40mm |
| Fillet of base jaw | R1.0~1.5mm |
| Fillet of impact blade | R2.0~2.5mm R8mm |
| Distance from the center of pendulum bob to the impact point | 750mm |
| Size of standard specimen | 10×10(7.5or 5)×55mm |
| Moment of pendulum bob | M=160.7695N.m 80.3848N.m |
| Voltage & power |
Three-phase four- line 50Hz 380V 180W |
| Size of machine |
2100×650×1900mm |
| Accuracy of angle |
0.1° |
| Weight |
About 500kg |
FAQ
| 1.Are you manufacturer? |
Yes, we are a professional manufacturer of mechanical testing equipment.
And we have our own research and development, production, sales, and service team, all products with completely independent intellectual property rights.
| 2.What is the size of your factory? |
Our company has more than 80,000 square meters of factory buildings, three branch factories, 5,000 square meters of office space, and five sales departments, with annual output value of 85 million.
| 3.Do you offer after-sales service? |
The warranty period of our products is one year. After end of the warranty period, if the machine fails, our after-sales service staff will also solve the problem for the customer in the first time.
| 4.What’s the delivery term? |
No special requirements, can be delivered within 15 working days. For customized models, delivery time shall be discussed according to order.
| 5. How to install and use the product? |
We will send you operating instructions and English video by Email.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
