Visual Fe Audible Steel Detector Machine RS422 Food Metal

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: BT1503
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: PLY-WOODEN CASE
Payment Terms: D/A, D/P, T/T, Western Union, L/C
Supply Ability: 100000Set/month
Type:: Metal Detector Application:: Food Metal Detector .needle Metal Detector
Model:: BOTO-220/300(Different Size ,pls Note Your Product Size) Detection Depth:: Different ,as Detail Pages Showing
Sensitivity:: Fe,no-Fe,sus304 Different Weight:: 3-30kg(pls Note Your Prpduct Weight )
Power Supply:: 380/220/110V 50/60Hz 200w Display:: LCD Screen
Customized Support:: OEM, ODM
High Light:

Fe Audible steel detector machine

,

RS422 steel detector machine

,

RS422 Food Metal Detector

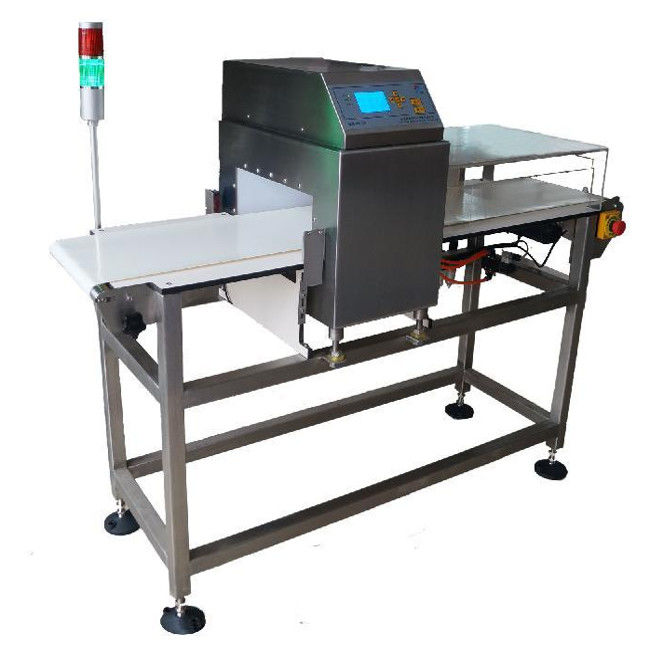

Audible Visual Alarm High Sensitivity Professional Food Metal Detector For Food Industrial Metal Detectors


1. Application

Apply to detect mental leakage (such as iron, copper, lead, stainless steel, etc.) fallen in material and goods, and automatically.





2. Main Performance And Structure Features:

1.The body is made of stainless steel,which is beautiful in appearance,rust prevention and easy to clean.
2.Analog design is combined with digital design,greatly improving reliability and intelligence of the machine.
3.Adopt new touch screen input and large scale integrated circuit,CPU collects analog signals and converts into digital.
4.Adopt the set of user-friendly interface,ensuring that the entire operation is simple,human-machine interface can be seen at a glance and all commands can be done by operating the interface.
5.Dynamically and visually display the dynamic test results of fe and SUS,the sensitivity of current Setting.

3. Description:
Metal Detector For Food industry is new arrival food metal detector . It has touch screen , 10 level adjustable sensitivity and memory 10 kinds of products etc .But also it has more higher reliability and stability on check products with water and salt.
1. Adopt the theory of balance, more reliable;
2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.
3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.
4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.
5. Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs.
6. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without
manual participation to adjust technical parameters.
7. It can store more than 100 kinds of testing data of products.
8. Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs.
9. Suitable for wet, dry ,dust ,dew environment , made of stainless steal ,has HACCP attestation , waterproof IP65

Product Paramenters

Model
BOTO-3015

 BOTO-4015

BOTO-4020

  BOTO-

  4025

BOTO-5020
BOTO-5030
BOTO-6040
Detector Dimension (Width*HeightMM)
300*150
400*150
400*200
400*250
500*200
500*300
600*400
Belt width(MM)
280
370
370
370
470
470
570
Transfer speed
25m / min
Transfer ability
5KG
5KG
7KG
7KG
7KG
7KG
25KG
Sensitivity
FE
1.0mm
1.0mm
1.2mm
1.5mm
1.5mm
2.5mm
3.0mm
NON-FE
1.5mm
1.5mm
2.3mm
2.5mm
2.0mm
3.0mm
4.0mm
SUS304
2.0mm
2.3mm
2.5mm
3.0mm
2.5mm
3.5mm
4.5mm
Operation interface
10 inches color LCD screen
Operating mode
Plane key input (touch optional)
Item memory
100 Products
Stable way
Automatic phase adjustment
Alarm mode
Buzzer,Alarm lamp,Alarm stop Run
Rejector(optional)
Flip Bar Type,Air Blast Type,Pusher on Roller Type,Pusher on Belt Type,Drop Flap Type, Chute Type,Conveyor Retraction Type(other types need to customization)
External interface
USB,RS232/485/422,to store data,Voltage signal or Switch signal,TCP/IP(optional)
Corollary equipment
Ink-jet printer,Check Weigher,Online printer,Labeling machine, etc
Power Source
380/220/110V 50/60Hz
Power Output
About 200W
Measurement
SUS304
Degree of protection
IP54/IP65(IP66 need to be custom)
Environment
0℃-50℃
Remark
1.Above the detection sensitivity is empty machine belt surface accuracy and practical sensitivity by products, environment or metal into position influence.
2.Above machine specifications for the standard specifications, size and other special
requirements, all can be customized.
