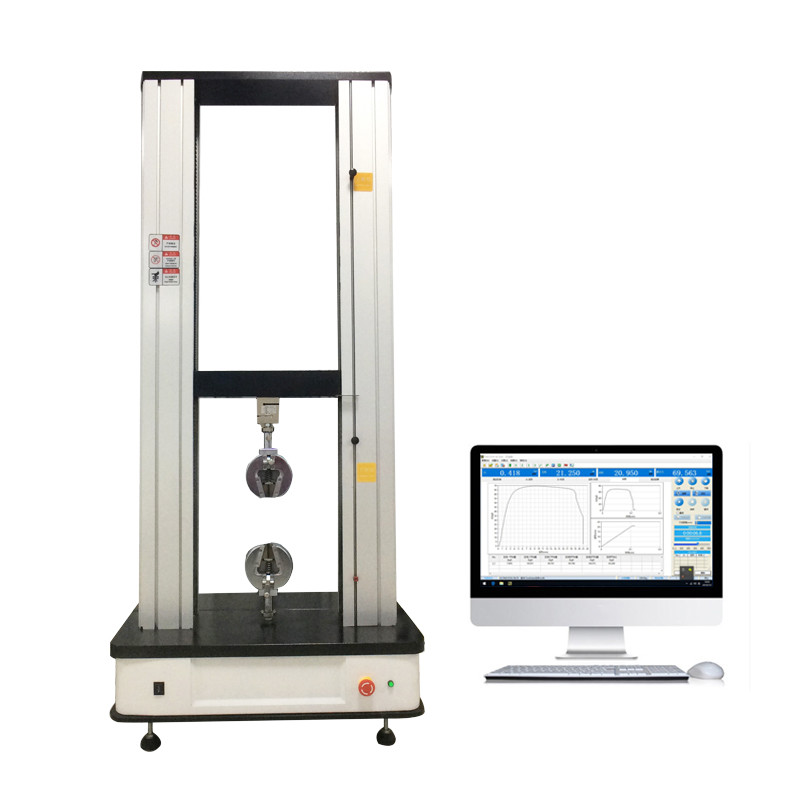

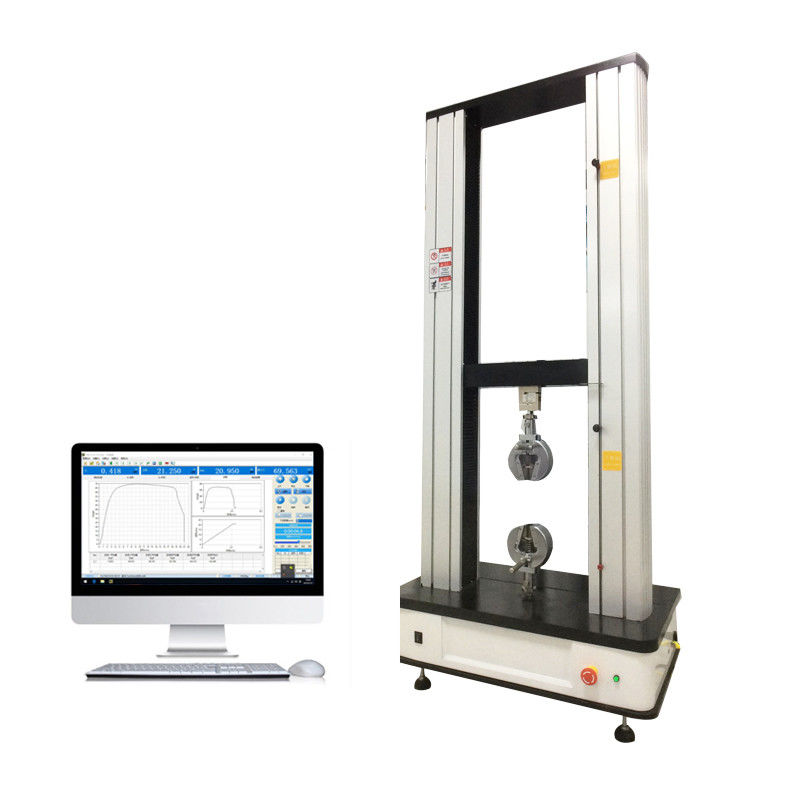

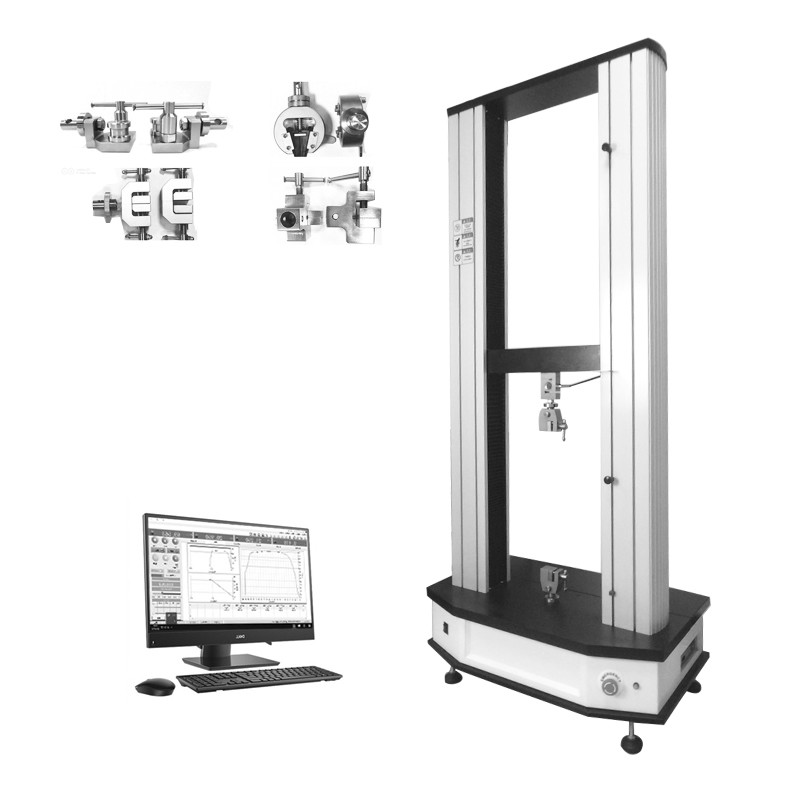

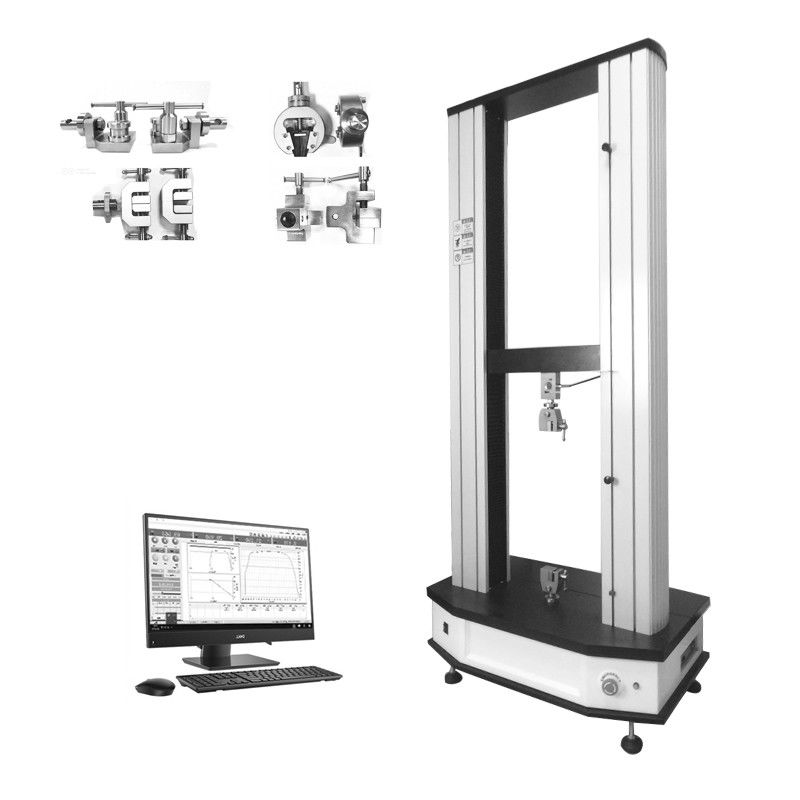

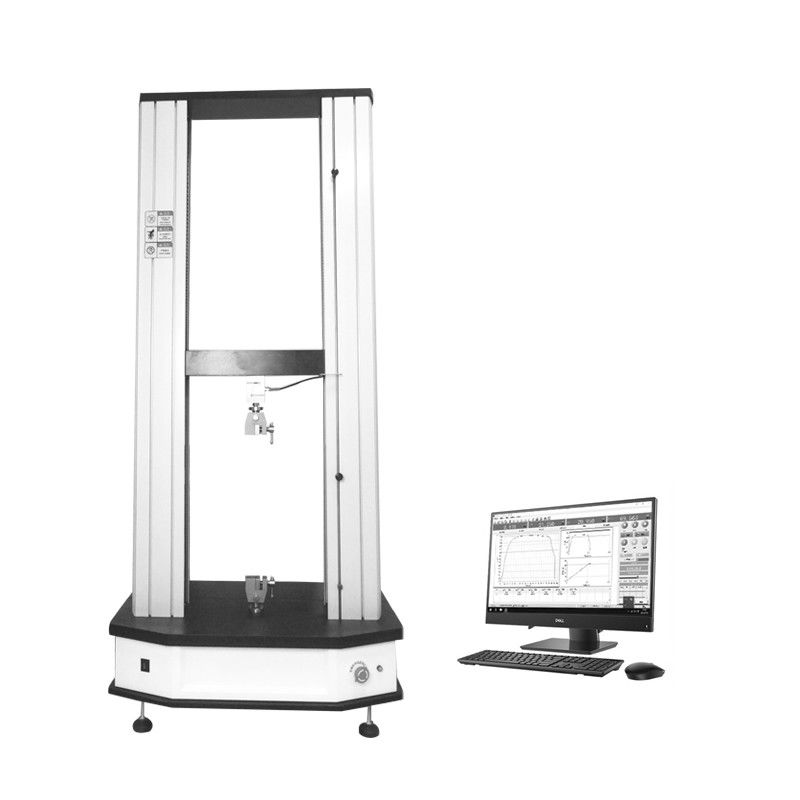

Laboratory Equipment 10KN Utm Hydraulic Universal Testing Machine 500mm

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE
Model Number: HJ-D8
Minimum Order Quantity: 1 SET
Price: 8000USD
Packaging Details: Export carton
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/month
Product Name: Universal Testing Machine Impetus: Servo Drive Controller
Tensile Strength Tester:: 0.001N Structure:: Single Column
Tensile Testeing Machine: For Leather Resolution Of Forc: 1/200000
Material: SUS 304 Stainless Steel Application:: Metal Material, Steel Wire, Bar, Plate, Rubber, Plastic Etc
High Light:

10KN hydraulic universal testing machine

,

500mm 50hz hydraulic universal testing machine

,

sus304 50hz 500mm utm tensile machine

Factory price tension testing laboratory equipment universal test machine

Universal Testing Machine Main Uses

It is mainly suitable for testing of metal and nonmetallic materials, such as rubber, plastic, wire and cable, optic fiber cable, safety belt, belt, leather composite belt, plastic section, waterproof roll, steel pipe, copper,sectional material, spring steel, bearing steel, stainless steel (and its high hardness steel), castings, steel plate and steel.

tensile tester test items
Extrude, compression, bending, shearing, stripping, tearing, two-point extension (with additional extensometer) and so on.

Universal Tensile Tester Performance parameter indicator
Maximum load 10KN(Selection of sensors with different specifications to achieve different accuracy)
Accuracy grade 0.5 class
Effective force measurement range 0.4%~100%(0.5 class)
Force measurement precision Within±0.5%
Test machine resolution Maximum load 1/300000,resolution invariant
Trans cell Basic configuration: pull and pressure sensor (maximum load). Extended configuration: multiple sensors can be added
Effective test width 400mm(can be widened according to customer requirements)
Effective stretch space 800mm(can be higher by customer requirements)
Displacement measurement Within±0.5%
accuracy
Test speed range 0.01~500mm/min
Deformation measurement
accuracy
Within±0.5% ((large deformation or small deformation can be selected according to customer requirements)
Overload protection More than 10% of the maximum load, automatic machine protection
Fixture configuration A set of tensile fixture ,Shearing Accessories
Mainframe size 1200*530*1800mm(long * width * high)
Power supply 220V/50HZ,
Power 0.75KW(according to the different force demand, standard different power motors)
Packed weight 300Kg(include all accessories)

Testing platform
The microcomputer hardware platform can accurately collect and process data in real time. The interface of measurement and control is gentle, intuitive, clear and clear, and easy to operate.

Universal Testing Machine Equipment Function
1.Automatic zeroing
2.Auto return
3.Automatic disk saving
4.The testing process, measurement, display and analysis are all finished by microcomputer
5.The data and curves are displayed dynamically with the experimental process.
6. Experimental results can be re analyzed with arbitrary access.
7.After the test is completed, the force and deformation data of the test curve can be found at point by point. 8.Program control and mechanical dual protection function;
9.Overload protection function;
10.Emergency shutdown function;
11.The tensile, compression, bending, shearing, adhesion, stripping and tear tests of the material can be carried out.V

Laboratory Equipment 10KN Utm Hydraulic Universal Testing Machine 500mm 0



BOTO Testing equipment Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.

BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.

BOTO ADVANTAGE



Laboratory Equipment 10KN Utm Hydraulic Universal Testing Machine 500mm 1



Customers photos



Laboratory Equipment 10KN Utm Hydraulic Universal Testing Machine 500mm 2

Laboratory Equipment 10KN Utm Hydraulic Universal Testing Machine 500mm 3



FAQ



Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.



Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
