| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO |
| Model Number: | BT006 |
| Minimum Order Quantity: | 1 SET |
| Price: | negotiation |
| Packaging Details: | PLY-WOODEN CASE |
| Payment Terms: | D/A, D/P, T/T, Western Union |
| Supply Ability: | 100000Set/month |
| Power:: | Hydraulic | Product Name:: | Automatic Control Concrete Cube Compression Testing Machine |
|---|---|---|---|
| Function:: | It Is Mainly Used In Compression Strength Of The Concrete | Weight:: | 750KG |
| Power Supply:: | 220V 50Hz | Usage: | Universal Testing Machine |
| Display: | LCD Digital Display | Control Type: | Manual Digital Display And Computer |
| High Light: | 750KG Cube Compression Testing Machine,1000kN Cube Compression Testing Machine,750KG concrete cube testing machine |
||
Full Automatic Electric Control Concrete Cube Compression Testing Machine
1. Product description:
* Structure: mainly composed by main unit, oil source and measuring control system.
* Space adjusting way: Electric ball screw adjusting to realize the compression space adjusting
* Measuring control system: The machine adopts hydraulic loading, the electronic testing load. With digital display load, loading rate, keeping maximum load, overload protection and outage data keeping and other.
* Safety protection device: When the test foce exceed the 3% of the maximum test force ,overload protection, the oil pump motor stop.
2. Main Specifications:
| Model | BT-1000D | BT-2000D | BT-3000D |
| Max test force | 1000kN | 2000kN | 3000kN |
| Test space adjusting way | Electric ball screw adjusting | ||
| Control way | Manual control loading process | ||
| Accuracy class | 1 class | ||
| Test force range | 4%~100%F·S | ||
| Test value accuracy | Better than ±1% | ||
| Oil cylinder stroke | 50mm | ||
|
Max distance between upper and lower plate |
320mm | 340 mm | |
| Max distance between two columns | 280mm | ||
| Upper and lower pressure plate | 250×250mm | 270*270mm | |
| Main unit dimension | 1000×500×1450mm | ||
| Power supply | 2.0Kw/AC380V | ||
| Weight | 1000Kg | 1200kg | |

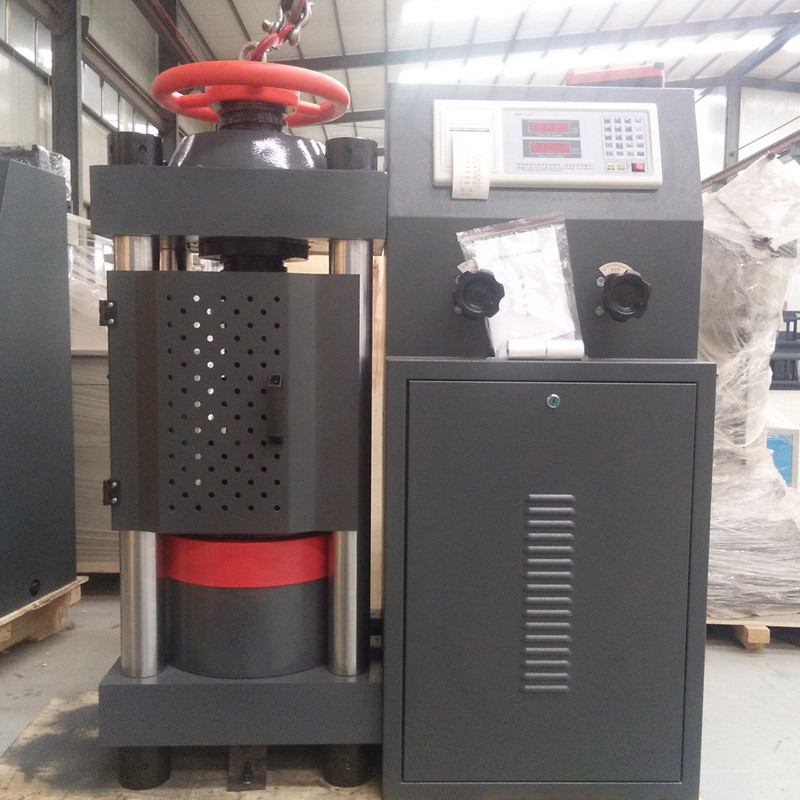

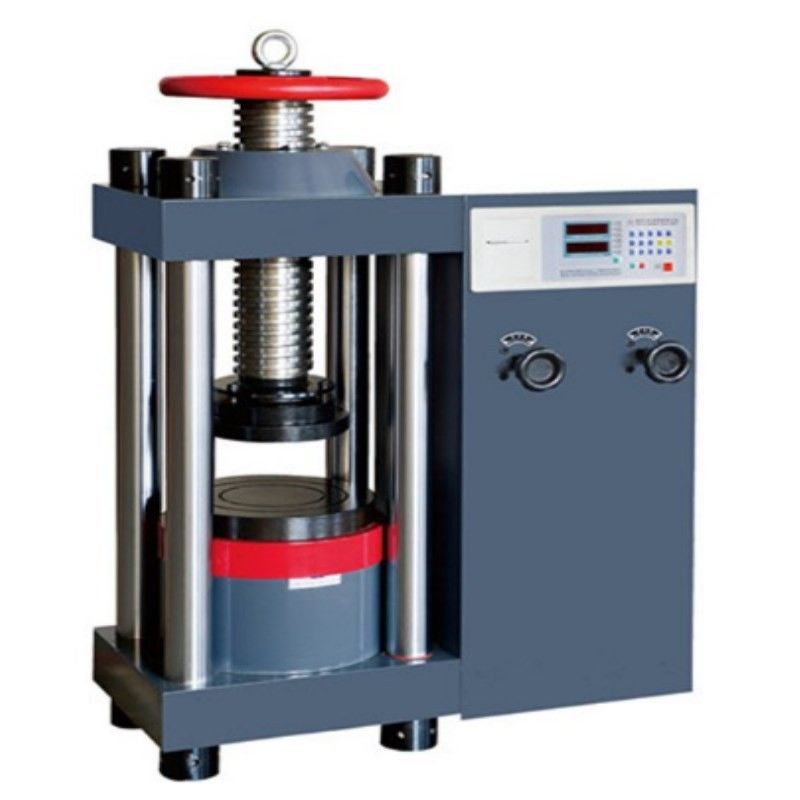

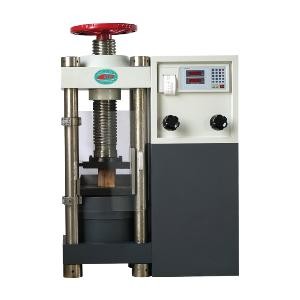

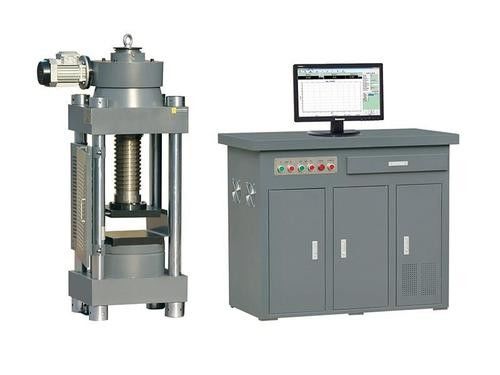

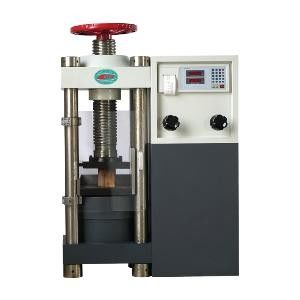

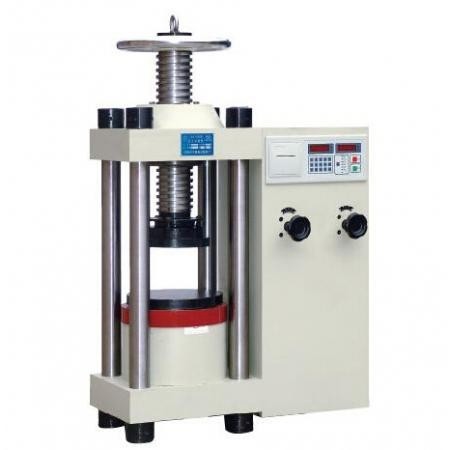

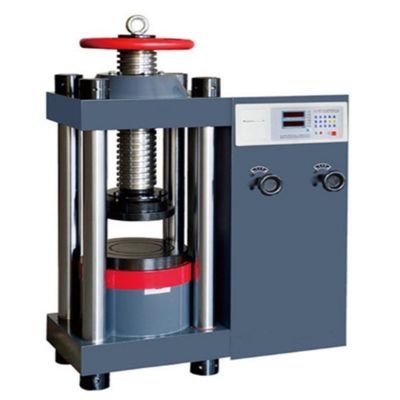

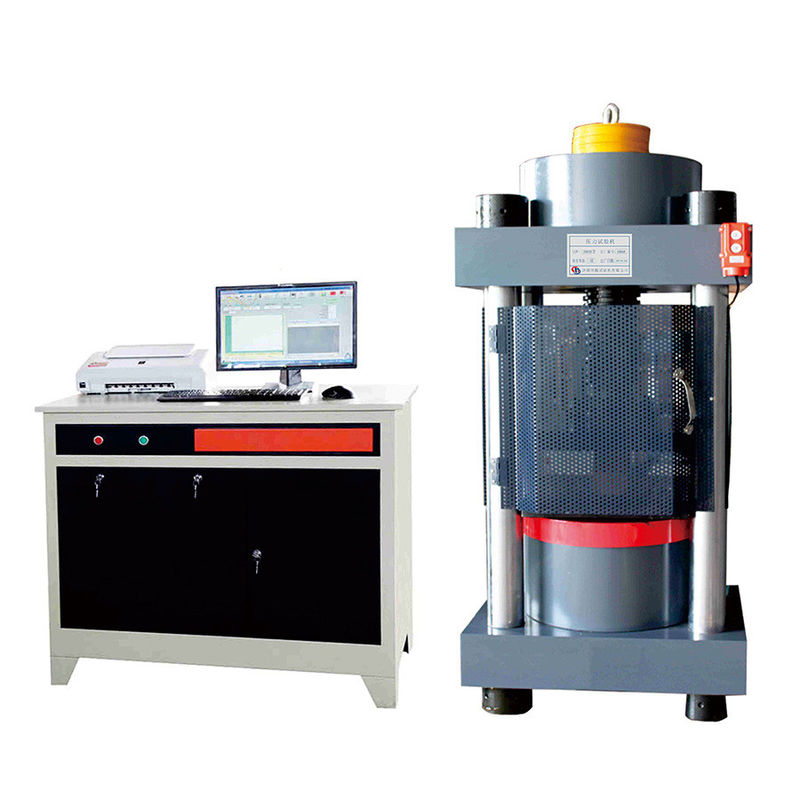

3. Detailed Image:
4. Application:
Concrete pressure testing machine is mainly used for testing the compressive strength, folding resistance ,
maximum pressure of ceramics, cement, cement products, glue sand, new building materials, refractory
materials, engineering materials, stone materials, rubber bearings and other building materials.It is necessary
equipment for the laboratory of roads, railways, Bridges, buildings, building materials and colleges and
universities etc.The concrete pressure testing machine is mainly used for testing the compressive strength of
concrete, ceramic products, ore and other building materials.It is necessary equipment for the laboratory of
roads, railways, Bridges, buildings, building materials and colleges and universities etc.
5. Packaging & Shipping:
1. Packing Method: Horizontal Packing to saving moreipping cost.
2. Packing Materials: Plywood Case metting export long transport requirement.
3. Shiping Time: Shipped within 15-20 days after payment.
4. Shipping Way: Shipped by sea or air is available.
6.FAQ:
Q: Are your company a trading one or a factory ?
A: We have our own factory and we have also register a trading company for more options (in order to make the business more simple) for more than 18 years focusing on test instruments field and 15 years exporting experience.
