JIS Concrete Compression Testing Machine 30mm Computer Control

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: YES-2000
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: PLY-WOODEN CASE
Payment Terms: D/A, D/P, T/T, Western Union
Supply Ability: 100000Set/month
Power:: Hydraulic Product Name:: Automatic Control Concrete Cube Compression Testing Machine
Function:: It Is Mainly Used In Compression Strength Of The Concrete Weight:: 600KG
Power Supply:: 380V/220V / 0.75KW Usage: Universal Testing Machine
Display: LCD Digital Display Control Type: Manual Digital Display And Computer
High Light:

30mm concrete compression testing machine

,

JIS concrete compression testing machine

,

JIS 30mm concrete compression machine

Hydraulic Cube Concrete Compressive Strength Testing Machine with Computer Control



Electronic tensile compression testing machine are designed and manufactured according to ASTM, ISO, DIN,



GB and other international standards. Applicable for wide range of material for tension, compression, bending,



shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely



used in the corresponding industries, research and development, test institutes and training centers etc .



Standards:



GB/T, ISO, ASTM, DIN, JIS, etc.



1. Main Specifications:

Model BT-Y-1000 BT-Y-2000
Test space adjusting way Electric ball screw adjusting
Control way Manual control loading process
Accuracy class 1 class
Test force range 4%~100%F·S
Testing space adjust method Manual adjust
Indicating value accuracy ±1%

Piston stroke

30mm
Diameter of Piston 250mm
Upper platen size 220*250mm (Can be customized)
Display LCD & Computer screen display
Power supply 380V/220V / 0.75KW
Weight 600kg



2. Detailed Image:

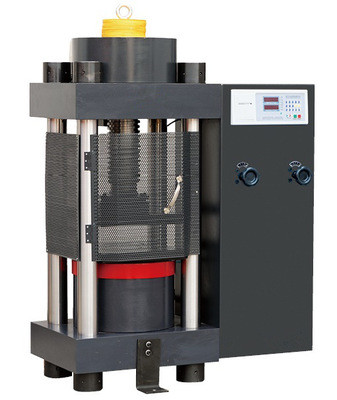

JIS Concrete Compression Testing Machine 30mm Computer Control 0

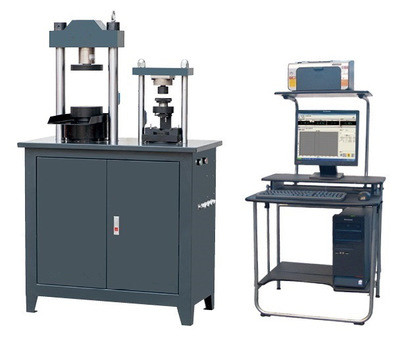

JIS Concrete Compression Testing Machine 30mm Computer Control 1

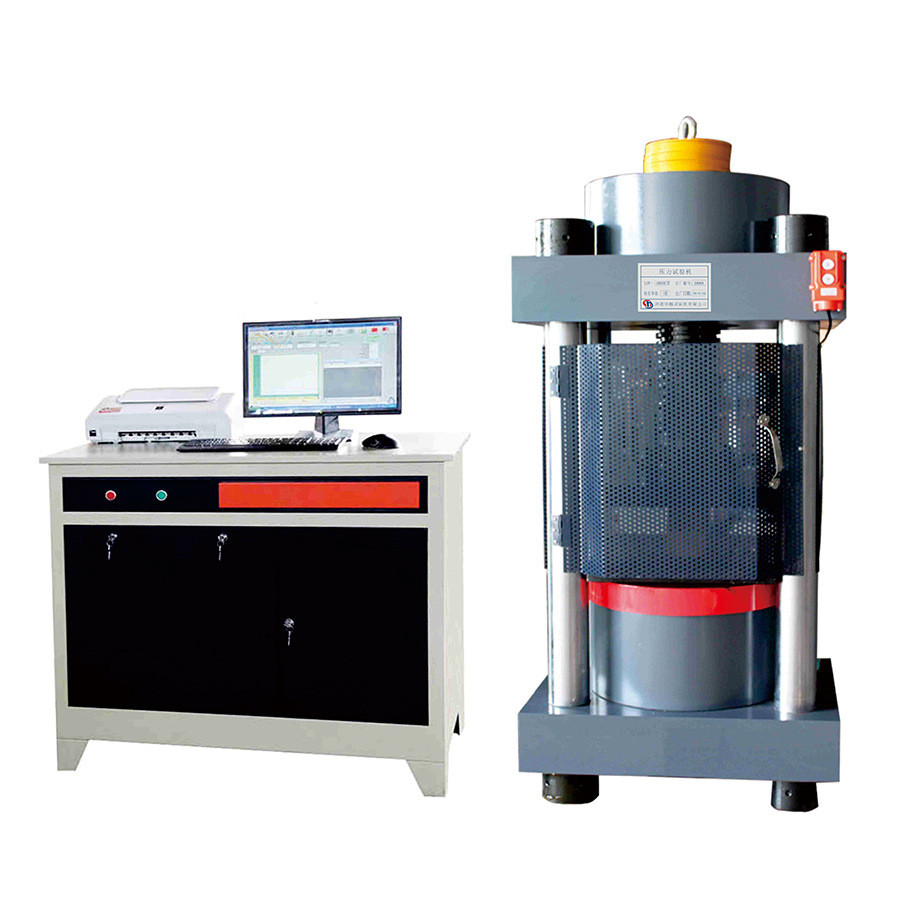

JIS Concrete Compression Testing Machine 30mm Computer Control 2

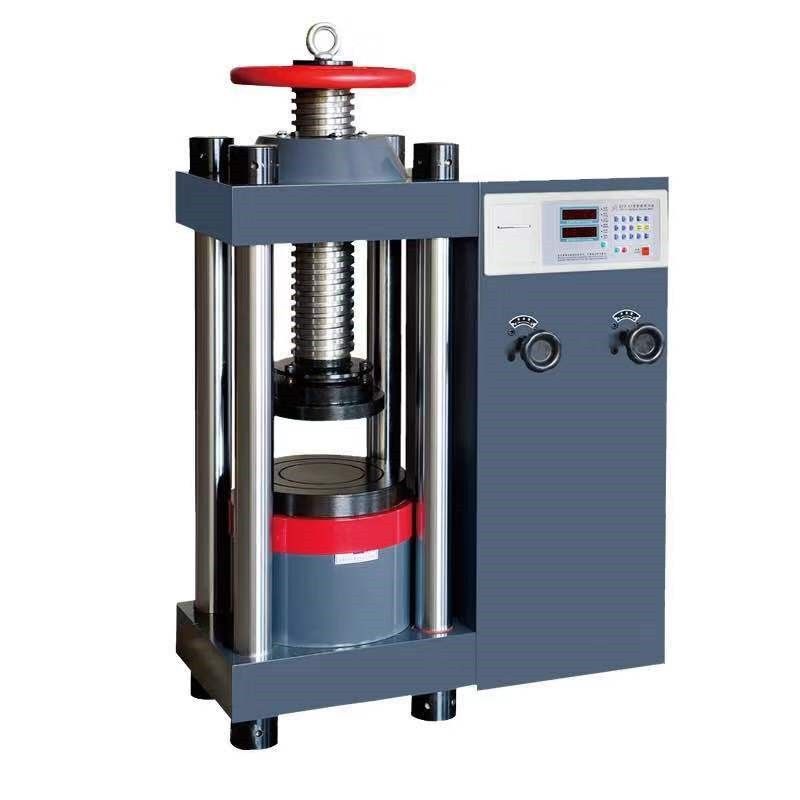

JIS Concrete Compression Testing Machine 30mm Computer Control 3



3. Characteristics:



Automatic Concrete Compression Testing Machine structure is compact, with high precision sensor testing force



and stable value. Test force and loading speed digital display, the maximum peak holding test force, print the



results.the oil pump motor stop.



4. Application:

It is mainly used for compression strength test for building materials, such as brick, cement, concrete specimen



and component and etc. Equipped with specials accessories, it can be used for bending, flexure resistant test of



building materials and compression resistant test of red brick. It meets with the standards, such as ISO 679,



ASTM C39, BS-EN 1881 and other test standard or method. It adopts hydraulic loading, electronic load, a load of



digital display, the loading speed, the maximum load, and remaining functions such as overload protection and



power data.



5. Packaging & Shipping:

1. Packing Method: Horizontal Packing to saving moreipping cost.



2. Packing Materials: Plywood Case metting export long transport requirement.



3. Shiping Time: Shipped within 15-20 days after payment.



4. Shipping Way: Shipped by sea or air is available.

JIS Concrete Compression Testing Machine 30mm Computer Control 4

6.FAQ:

Q: Are your company a trading one or a factory ?

A: We have our own factory and we have also register a trading company for more options (in order to make the business more simple) for more than 18 years focusing on test instruments field and 15 years exporting experience.



Q: How to choose the most suitable products?

A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.



Q: What's the delivery term?

A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.



Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.



Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.



Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.



Q: How to install and use the product?

A:About the machine you grt from us, we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
