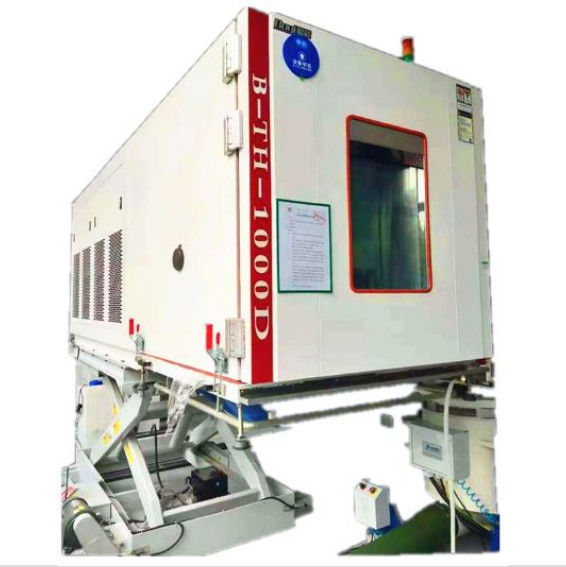

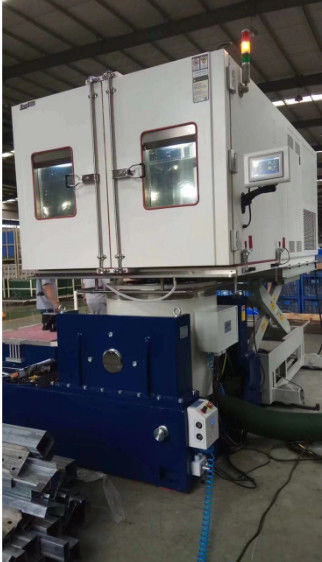

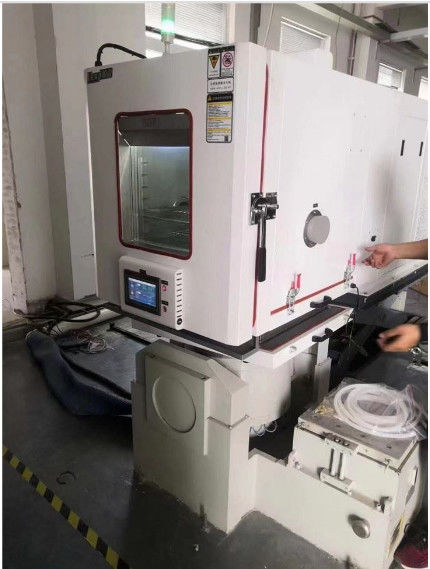

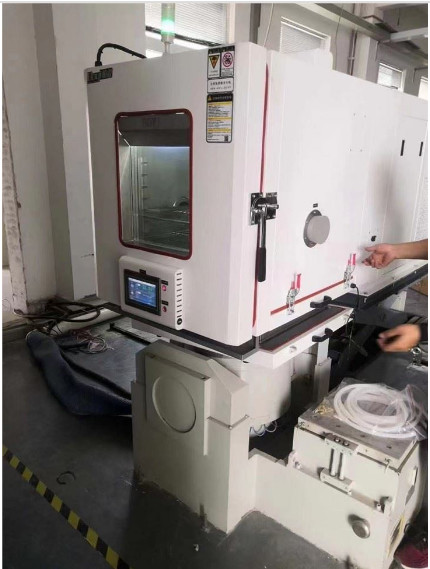

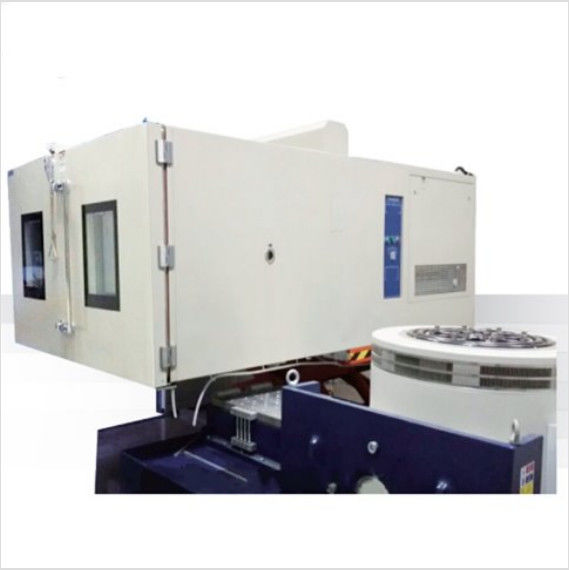

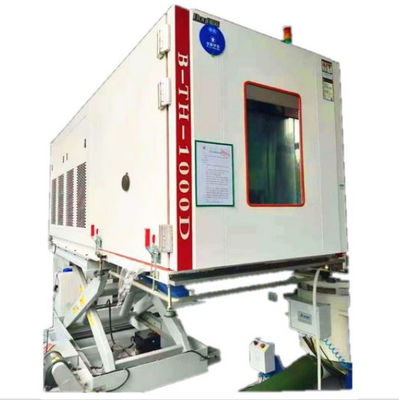

GB5170 Vibration Composite Environmental Test Chambers 190W

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: ISO GB JIS
Model Number: BT-50ZA
Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: PLY-WOODEN-CASE
Delivery Time: 30~60days
Supply Ability: 1000SETS per year
Model:: BT-50ZA Inner Box Size:: W350*H400*D300mm
Carton Size:: W580*H1350*D870mm Temperature Range:: -20℃ ~ 150℃
Temperature Fluctuation:: ±0. 5℃ Temperature Deviation:: ≤±2℃
Heating Time:: About 40 Minutes From Room Temperature To 150°C Cooling Time:: About 60 Minutes From Room Temperature To -20°C
8 Humidity Range:: 20%~98%R. H.
High Light:

Vibration Composite Environmental Test Chambers

,

GB5170 Environmental Test Chambers

,

Environmental Test Chambers 190W

Temperature Humidity Vibration Composite Test Chamber environmental Test Chambers



Product Description

Fulfill the standard:

Performance indicators meet the requirements of GB5170, 2, 3, 5, 6-95 "Testing methods for basic parameters of environmental testing equipment for electrical and electronic products: Low temperature, high temperature, constant damp heat, alternating damp heat test equipment"

Basic environmental test procedures for electrical and electronic products Test A: Low temperature test method GB 2423. 1-89 (IEC68-2-1) Basic environmental test procedures for electrical and electronic products Test B: High temperature test method GB 2423. 2-89 (IEC68-2-2) Electrical and electronic products Product basic environmental test procedure test Ca: Constant humidity test method GB/T 2423. 3-93 (IEC68-2-3) Basic environmental test procedures for electrical and electronic products Test Da: Alternating damp heat test method GB/T423. 4-93 (IEC68-2-30)



Detailed parameter performance: (refers to air-cooled type at room temperature 20℃, when no load)

1. 1 Model: BT-50ZA

1. 2: Inner box size: W350*H400*D300mm

Carton size: W580*H1350*D870mm

1. 3 Temperature range: -20℃ ~ 150℃

1. 4 Temperature fluctuation: ±0. 5℃

1. 5 Temperature deviation: ≤±2℃

1. 6 Heating time: about 40 minutes from room temperature to 150°C (no-load nonlinearity)

1. 7 Cooling time: about 60 minutes from room temperature to -20°C (no-load nonlinearity)

1. 8 Humidity range: 20%~98%R. H.

1. 9 Humidity fluctuation: ±3%R. H.

1. 10 Humidity deviation: ≤3%



Structure and material:

A. Inner box material: stainless steel plate (SUS #304)

B. Outer box material: stainless steel plate through atomization treatment (SUS #304) or cold plate paint (optional)

C. Insulation material: rigid Polyurethane foam and glass wool

D. Air circulation system:

(1) 190W motor

(2) Stainless steel extended shaft

(3) Multi-wing fan (SIRCCO FAN)

E. Box door: single-piece door, single window, left opening, handle on the right hand side

(1) Window 260*340*40mm 3 layers of vacuum layer

(2) Flat embedded handle

(3) Back button: SUS #304



2. Screen display function:

a. Touch input, display options directly on the screen

b. Direct display of temperature and humidity setting (SV) and actual (PV) values (in English)

c. It can display the current program number, segment number, remaining time and cycle times

d. Running cumulative time function

e. The temperature and humidity program setting value is displayed in a graphic curve, with real-time display program curve execution function

f. With a separate program editing screen, directly input temperature, humidity and time



3. Program capacity and control function:

a. Available program groups: up to 100 groups

b. Usable memory capacity: 5000 SEGMENTS in total

c. Commands can be executed repeatedly: each command can be up to 9999 times

d. The production of the program adopts dialogue style, with editing, clearing, and other functions

e. SEGMENTS time setting 0~530Hour59Min

f. With power-off program memory, it will automatically start and continue to execute the program after power is restored

g. Real-time display of graph curve during program execution

h. With date and time adjustment function

i. Key and screen lock (LOCK) function



GB5170 Vibration Composite Environmental Test Chambers 190W 0



Standard configuration:

A. Power cord 4. 0 mm²*3 core

B. One 232 export terminal

C. Stainless steel SUS #304 square punching steel plate rack

D. 8 stainless steel adjustable spacing buckles

E. One 11W energy-saving lighting window lamp

F. One ψ50mm test hole on the left side of the body and one stainless steel hole cover.

G. 1 piece of non-woven fabric for standard test

H. One set of controller instruction manual, one set of operation manual



Surroundings:

(1). The allowable operating temperature range is 0~35℃

(2). Performance guarantee range: 5~35℃

(3). Relative humidity: no more than 85%

(4). Atmospheric pressure: 86~106Kpa

(5). No strong vibration around

(6). No direct sunlight or other heat sources

(7). Natural drainage: The drainage pipe must not be raised in the middle, and the floor of the house must not be extremely inclined.



Specifications Of Temperature & Humidity Chamber



If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.



1. Pre-service

24 Hours online service for your consult.

Help choose right model, and a series of service, person, advise.



2. Middle service

--Give you best offer

--Provide discount for many sets order

--Do customer's request:

--Choose payment term you convienent.

--Promptly production and delivery, inform you in time.

--Can provide invoice value as you like to decrease your tax.



3. After sale service

--1 year warranty service and all life maintenance.

--Technical Egineer are avalible for oversea trainning.

--Free change for some parts

--Remote control technical consult

--Free installation DVD

--Maintenance plan



4. Commitment:

We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.



5. Good Packaging:

Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

GB5170 Vibration Composite Environmental Test Chambers 190W 1


Package&Delivery
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.30days after confirming order,detail delivery date should be decided according to production season and order quantity.

GB5170 Vibration Composite Environmental Test Chambers 190W 2
FAQ
1. How can we guarantee quality?
Continuous testing is performed after production is completed to ensure product stability.
All parts come from manufacturers of world-renowned brands.
2.What can you buy from us?
Checkweigher,Packing machine,CNC machine
3. why should you buy from us not from other suppliers?
We are a manufacturer with ISO9001, CE international certificates,
*12+ years of production experience
* 10+ years of foreign trade experience
*10+ national technology patents
*Exported more than 1,000 units without receiving complaints from customers
4. what services can we provide?
warranty:12 months free warranty, life-long maintenance.
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Japanese,Chinese,
