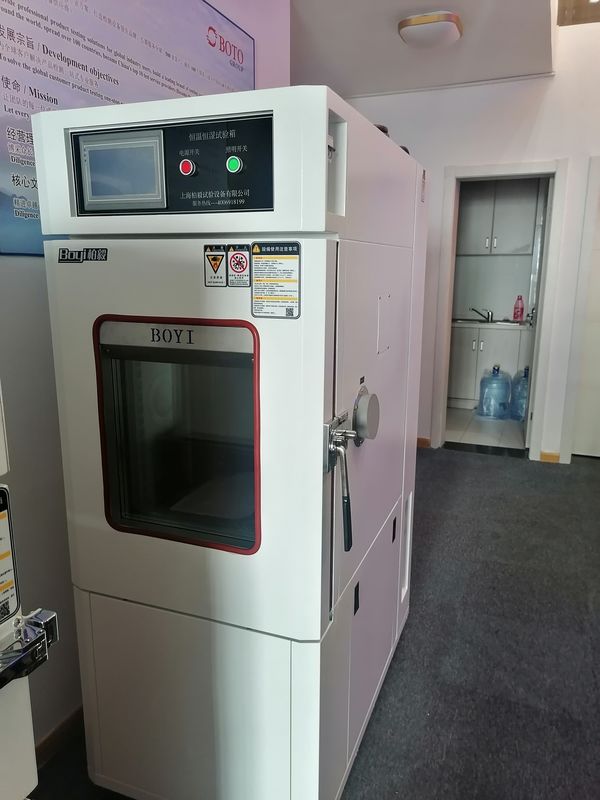

Super Quiet SUS304 Plate Environmental Test Chambers RS232

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: B-T-120
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: PLY-Wooden case
Delivery Time: 20-25work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000set/month
Internal Dim: 45*60*45 External Dim: 75*189*110
Relative Humidity: 20%~98%RH Temp Range: -70°C~150°C
Heat-up Time: About 3°C~5°C/min Pull-down Time: About 0.7°C~1°C/min
Temp Fluctuation: ±0.5°C Temp Uniformity: ±1.0°C
Temp&Humi.Deviation: ±1.0°C/±3.0°CRH Interior: SUS304 Stainless Steel Plate
Power Source: AC:220V/380V 50/60Hz
High Light:

SUS304 Plate Environmental Test Chambers

,

RS232 Environmental Test Chambers

,

PLC Environmental Test Chambers

Programmable High Low Temperature Chamber environmental Test Chambers



This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat,

resist dry, resist humidity and resist cold. That can define performance of material.





Product Description:

This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define performance of material.

Mainly used in national defense industry, aviation industry, automotive parts, electronic components, plastics industry, food industry and other related product development, straightening management engineering test specifications. Its characteristics are as follows:

1. The import of compressors and refrigeration accessories by the well-known brands in the national boundaries ensures the stability of the refrigeration system.

2. The cause of the faults can be displayed and the reason is easy to exclude.

3. The special air supply cycle design, the temperature and humidity distribution uniformity is good.

4. The whole series of imported microcomputer controllers are colored. Color touch screen, Chinese and English system, can be used as a function of setting the city value. It can show the cause of the trouble, exclude easy, super quiet design, effectively reduce the running noise of the equipment, and

5. Super quiet design, effectively reduce the running noise of the equipment.

6. Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.

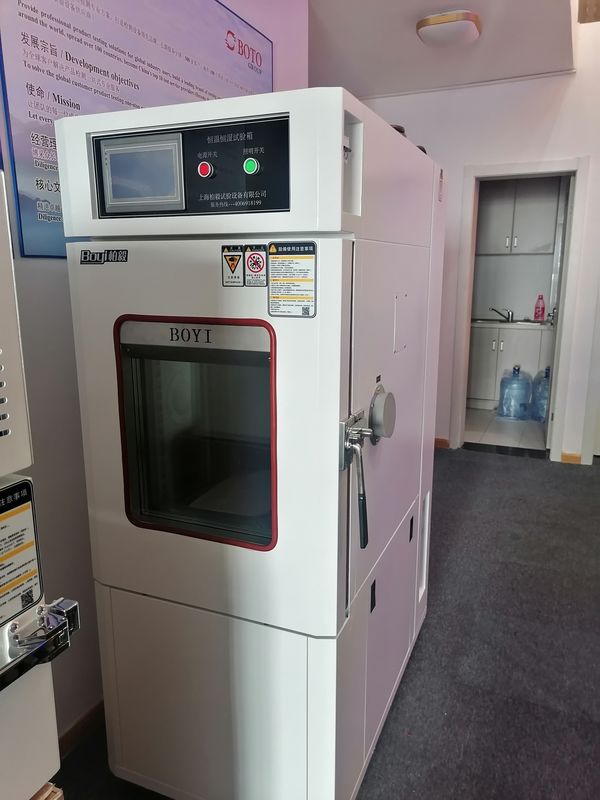

Super Quiet SUS304 Plate Environmental Test Chambers RS232 0

Standards: GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566



Characteristics:

1. Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.

2. Control temperature&humidity well-distributed, precisely and steady.

3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.



Benchtops Temperature & Humidity Test Chamber, High Temperature Test Chamber, Dry Oven, Alternating Temperature Test Chamber, Alternating Temperature & Humidity Test Chamber, Temperature Rapid Change Test Chamber, Temperature & Humidity Rapid Change Test Chamber, Alternating Temperature Alternating Humidity Rapid Change, Thermal shock Test Chamber(Two-zone, Three-zone), Large Walk-in Test Room

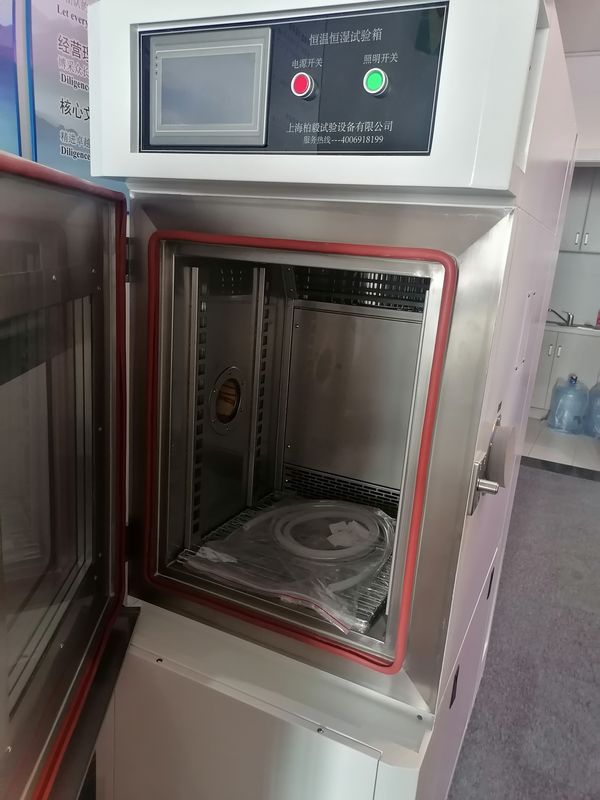

Super Quiet SUS304 Plate Environmental Test Chambers RS232 1



Applications

● To simulate test environment with different temperature and humidity

● Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…

● Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation

● Uncover test unit weakness in a short-term test with accelerated time effect



Chamber Design Features

● High performance and quiet operation (68 dBA)

● Space-saving designed for flush installation to wall

● Full thermal break around doorframe

● One 50mm diameter cable port o left, with flexible silicone plug

● Direct water supply connection for continuous operation

● Accurate wet/dry-bulb humidity measurement system for easy maintain



Programmable Controller

● PIC controller for test chamber

● Step types include: ramp, soak, jump, auto-start, and end

● RS-232 interface to connect computer for output

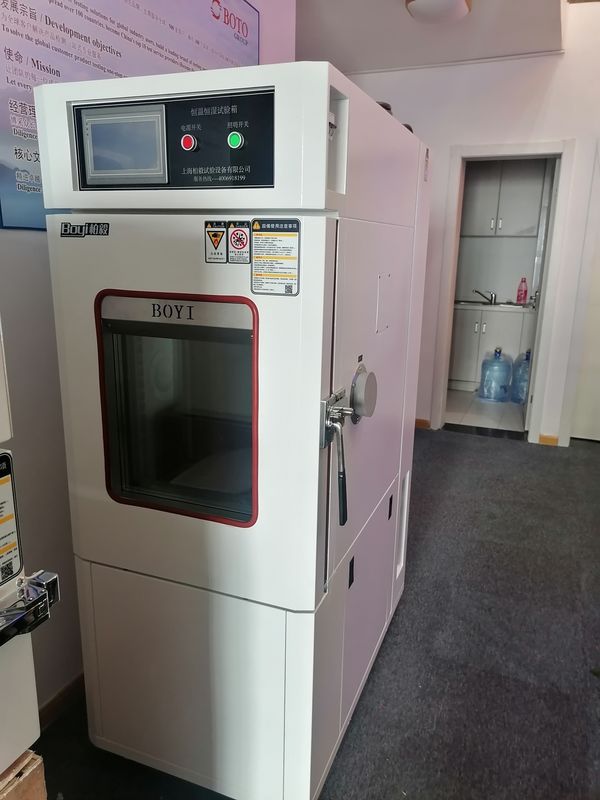

Super Quiet SUS304 Plate Environmental Test Chambers RS232 2

Specifications

Model BT-280 BT-2150 BT-2225 BT-2408 BT-2800
Inner Size
W×H×D(cm)
40×50×40 50×60×50 50×75×60 60×85×80 100×100×80
Outside Size
W×H×D(cm)
93×155×95 100×148×106 117×166×91 140×176×101 170×186×111
Volume (V) 80 L 150L 225L 408L 800L
Temp and Hum Range A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C
RH20%-98%
Function Fluctuation ±0.5°C ±2.5%RH
Deviation ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)
Controller
Analytical
Accuracy
±0.3°C ±2.5%RH
Wind Cycling Way Centrifugal fan-broadband type forced air circulation
Refrigeration Way Single stage compression refrigeration
Refrigerator French Tecumseh
Refrigerants R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way Air-cooled or water-cooled
Water Supplying Way Automatic cycling water supply
Safety device Non- fuse-switch(compressor overload,
refrigerant high low voltage,
over-humidity and temperature protection,
Protection switch,fuse stoppage warning system



Production Process



Super Quiet SUS304 Plate Environmental Test Chambers RS232 3

Super Quiet SUS304 Plate Environmental Test Chambers RS232 4

Super Quiet SUS304 Plate Environmental Test Chambers RS232 5

Super Quiet SUS304 Plate Environmental Test Chambers RS232 6

Production Details

Super Quiet SUS304 Plate Environmental Test Chambers RS232 7

Super Quiet SUS304 Plate Environmental Test Chambers RS232 8



Super Quiet SUS304 Plate Environmental Test Chambers RS232 9



Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.



2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.



3) Order process:

We offer below business term:

Accepted Delivery Terms

FOB, CFR, CIF, EXW, DDP

Accepted Payment Currency

USD, EUR, HKD, CNY

Accepted Payment Type

T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow

Nearest Port

Shanghai, Qingdao, Tianjing,Shenzhen,Guangzhou,or rquired



4) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process. After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products in confirmed shipping time and inform customer.



5) Installation and after sale service



Hot Tags: programmable high low temperature chamber, China, suppliers, manufacturers, factory, buy, cheap



Super Quiet SUS304 Plate Environmental Test Chambers RS232 10





PACKAGE&DELIVERY
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.15-20days after confirming order,detail delivery date should be decided according to production season and order quantity.

Super Quiet SUS304 Plate Environmental Test Chambers RS232 11

FAQ

Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!


Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .


Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.


Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service



Factory introduction

BOTO GROUP LTD.Is a professional manufacturer of environmental test equipment and test service. Our company was established in 1998,the plant covers 55,000 square meters and a construction area of 6,800 square meters, existing 160 workers and we can provide operation video for machines.



Super Quiet SUS304 Plate Environmental Test Chambers RS232 12



Service

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.



Onsite Service: 1.Device installation; 2.Equipment Operation Technology training; 3.Equipment Calibration; 4.Daily maintenance maintenance of equipment.



Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1.Social media 24 hours online communication;
2.Mail Seamless Docking;
3.Video Conferencing;
4.Artificial free door-to-door service



Our Team

Super Quiet SUS304 Plate Environmental Test Chambers RS232 13



Main equipment

Super Quiet SUS304 Plate Environmental Test Chambers RS232 14
