Inner Size: | 200x100x50 | External Size: | 270x130x159 |
---|---|---|---|
Brine Temp: | 35°C±1°C 50°C±1°C | Brine Chamber Volume: | 15L |
Test Chamber Volume: | 108L | Spray Volume: | 1.0~2.0ml/80cm2/h (Collect At Least 16 Hours, The Average) |
Compressed Air Pressure: | 1.00±0.01kgf/c㎡ | PH: | 6.5~7.2 3.0~3.2 |
Spray Method: | Programmable Spray (including The Continuous Spray Interrupted Spray) | Test Room Relative Humidity: | 85%RH Or More |
High Light: | 108L Salt Spray Environmental Test Chambers,Programmable Environmental Test Chambers,80cm2/H Spray Environmental Test Chambers |

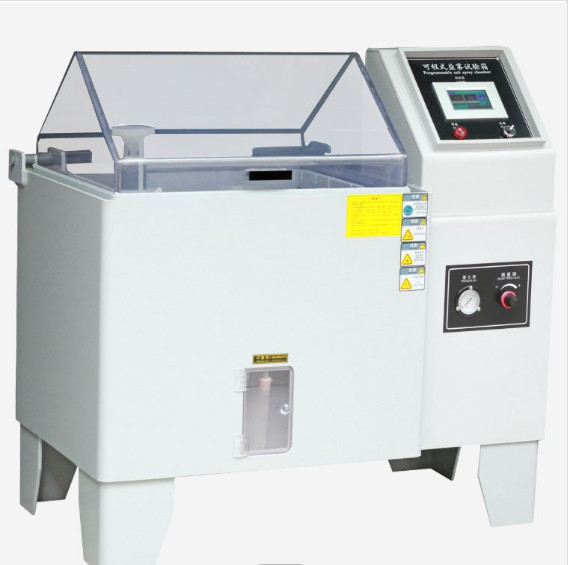

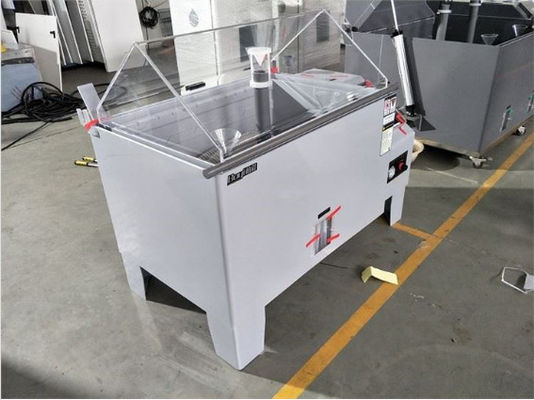

Salt spray corrosion test/testing chamber environmental Test Chambers
Salt Spray Tester is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Introduction:
Salt Spray Tester is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Corresponding Standard:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
EIA - 364-59 ASTM B117
Product Features
1, Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.
2, Reservoirs with mixing system on stand.
3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4, Exposure zone lined with corrosion-resistant PVC sheets.
5, Clear cover allows viewing of test conditions.
6, Peaked cover prevents dripping of condensation onto samples.
7, Water seal and water level protection system.
8, Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9, Automatic DI water fills to humidifying tower.
10, Digital temperature control.
11, Integral over-protection on heaters.
12, Low water cut-off protection on humidifying tower.
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Packaging Dimensions: (WxDxH) 1610*1050*1400mm
Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)
Gross Weight: 150kg
HS Code: 8479899990
Specifications:
Model | BT-60 | BT-90 | BT-120 | BT-160 | BT-200 |
Inner size (cm) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 |
External size(cm) | 107x60x118 | 141x88x128 | 190x130x140 | 230x130x140 | 270x130x140 |
Inside temp | Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method (CASS)50°C±1°C |
||||
Brine temp | 35°C±1°C 50°C±1°C | ||||
Test chamber volume | 108L | 270L | 600L | 800L | 1000L |
Brine chamber volume | 15L | 25L | 40L | 40L | 40L |
Compressed air pressure | 1.00±0.01kgf/c㎡ | ||||
Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | ||||
Test room relative humidity | 85%RH or more | ||||
PH | 6.5~7.2 3.0~3.2 | ||||
Spray method |
Programmable spray (including the continuous spray interrupted spray) |
||||
Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A |
PACKAGE&DELIVERY
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.15-20days after confirming order,detail delivery date should be decided according to production season and order quantity.
COMPANY INFORMATION
BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
Main equipment
In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.
Main market
The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.
Production Details
Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.
Workshop Machine
Certification
TRADING PROCESS
Cooperative partners
FAQ
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
