| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO |
| Model Number: | BT1501 |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiation |
| Packaging Details: | PLY-WOODEN CASE |
| Payment Terms: | Western Union, T/T, D/P, MoneyGram |
| Supply Ability: | 100000Set/month |
| Shell Material:: | As Customer's Requirement | Function:: | Strong Self Diagnosis Function |
|---|---|---|---|
| Belt Speed:: | 0-65m/min | Display:: | LCD Display Check Weigher Metal Detector |
| Operation Display:: | 8 Inches Touch Screen | Certificate:: | CE ROHS |
| Power:: | 100-240V/50HZ | Seale Mark:: | 0.1g |
| Usage:: | Pharmaceutical, Food, Toys, Hardware, Chemical And Other Industries. | Belt Width:: | 150mm Check Weigher Metal Detector |
| High Light: | 65m/min Check Weigher Machine,LCD Display Checkweigher Machine,Pharmaceutical Check Weigher Machine |
||

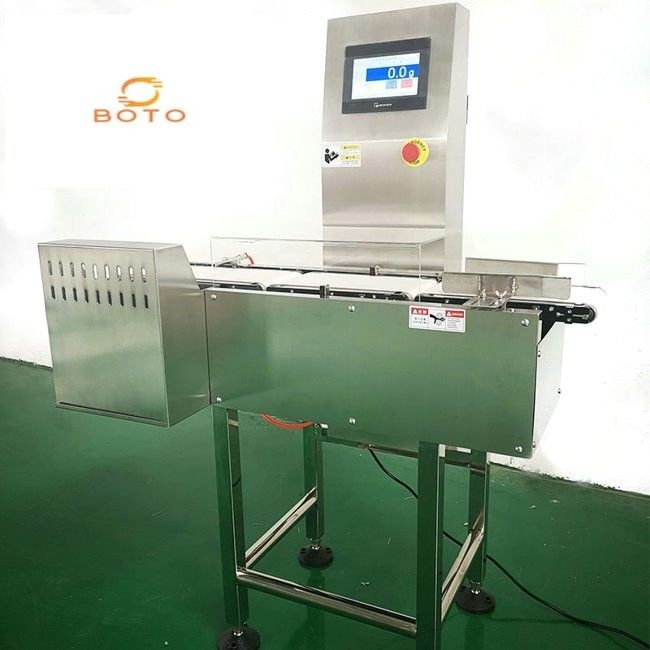

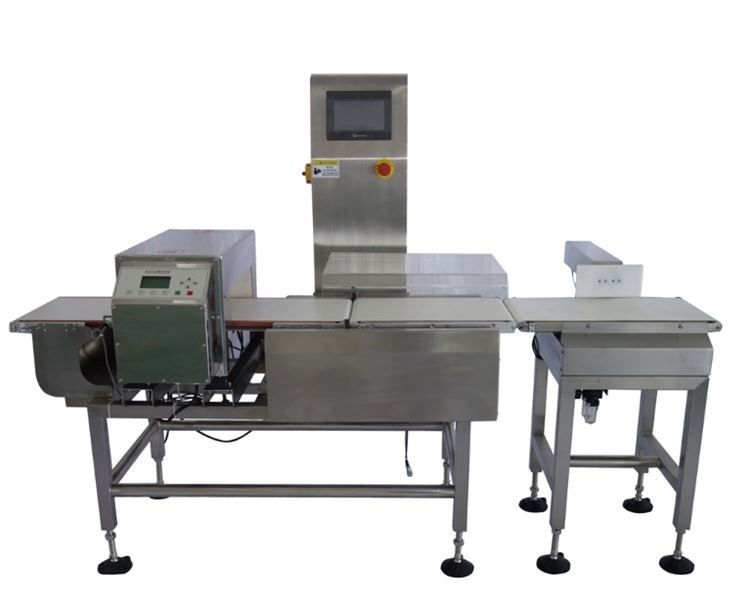

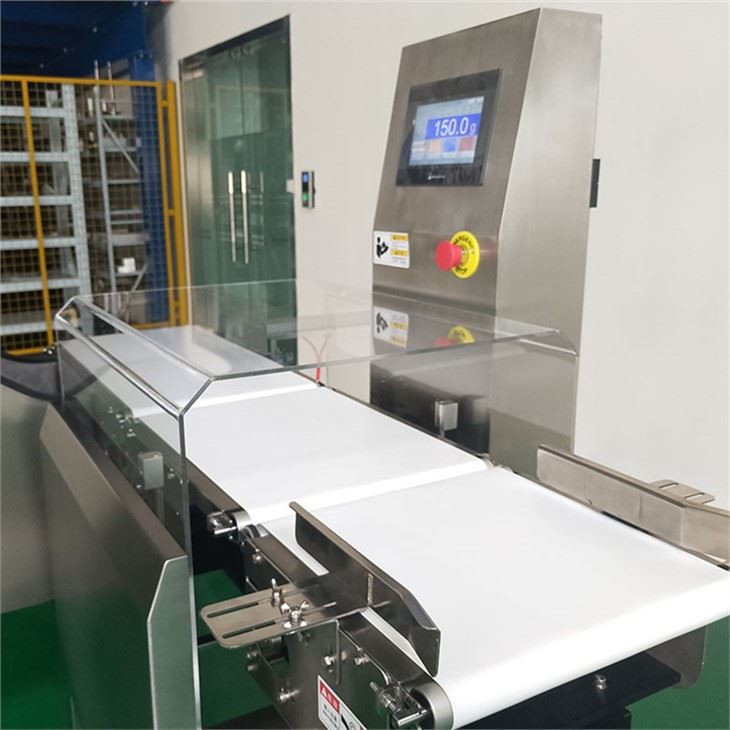

Check weigher Machine
Product description:
The smart checkweigher can detect overweight and underweight unqualified products in the assembly line in real time. Automatic check-weighing of production lines in the pharmaceutical, food, chemical and other industries, whether there are missing parts or instructions in the package, etc. , and the rejection device can automatically reject the defective products.
Features:
1. Large LCD touch screen display, Chinese and English interface, suitable for domestic and foreign customers.
2. High-precision sensor, high detection accuracy and fast detection speed.
3. The graph shows the statistical distribution of the sorting results and grasps the sorting dynamics in real time.
4. 100 kinds of product sorting parameters can be preset, and different products can be quickly switched.
5. High-speed and high-precision digital filtering algorithm, data filtering parameters, and automatic learning.
6. Dynamic zero tracking, including zero tracking when the equipment is continuously running, can automatically correct the weight value.
7. Variable frequency motor drive, effectively improve the stability of equipment operation.
8, Preset data transmission interface, can set or export product sorting parameters via USB.
9. Multiple removal methods are optional, which can remove overweight or underweight products
Application:
Checkweigher is suitable for testing the weight of a small single item whether is qualified or not, and it iswidely used in electronic, food, pharmaceutical, beverage, health-care, chemical industry etc. For example, it can be used in food industry to check the weight of flavour, cake, hams, instant noodles, frozen food, food additives, preservative etc.
Checkweigher substantiates the extensive know-how that the company has accumulated in weighing technology over the years. By including a high-precision weight checking function in the production line, your product quality can improve without any decline in efficiency. The series provides a whole range of features for handling different products, and incorporate new functions in response to modern necessities.
Specification:
| Detection width : | 30-80 cm, Customized |
| Detection height: | 8-50cm Customized |
| Detection sensitivity: | See below table |
| Alarm mode: | The buzzer alarm, the motor automatically stop |
| Transfer speed: | 25 meter / min or you can select adjust speed |
| Power: | 100-265VAC, 50-60Hz (According to customer request) |
| Size: | (150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H) |
| Reject system | Option |
The reality detector sensitivity depends on the products and operating environment . Please kindly see below:
| Detected Height(mm) | 80 | 100 | 150 | 200 | 250 | 300 | 350 |
| Belt Width(mm) | 250 | 250 | 400 | 400 | 400 | 400 | 400 |
| Belt length | 1500 | ||||||
|
Detector sensitivity(mm) |
Fe 0.8 | Fe 1.0 | Fe 1.2 | Fe 1.5 | Fe 2.0 | Fe 2.5 | Fe 3.0 |
| SUS 1.0 | SUS 2.0 | SUS 2.5 | SUS 2.5 | SUS 3.0 | SUS 3.5 | SUS 4.0 | |
| N-Fe 1.0 | N-Fe 1.5 | N-Fe 2.0 | N-Fe 2.0 | N-Fe 2.5 | N-Fe 3.0 | N-Fe 3.5 | |
| Speed of belt | 25M/min (Fixed speed) ; If you need adjust 5-40 M/min , please inform us before order |
||||||
| Load ability | 20KG | ||||||
| Count | 100 | ||||||
| Warning method | Sound and light alarm ; The belt can be stopped, continue run or belt return ( the option you can selected in PLC controller) | ||||||
| Reject Ways | when has auto-reject system ,belt continue and rejecting the goods | ||||||
| Application | Non-package, plastic package ,paper bag or box (non-metallic) product | ||||||
| Work Environment | Temperature -10℃-40℃ ,relative humility 30-90% | ||||||
