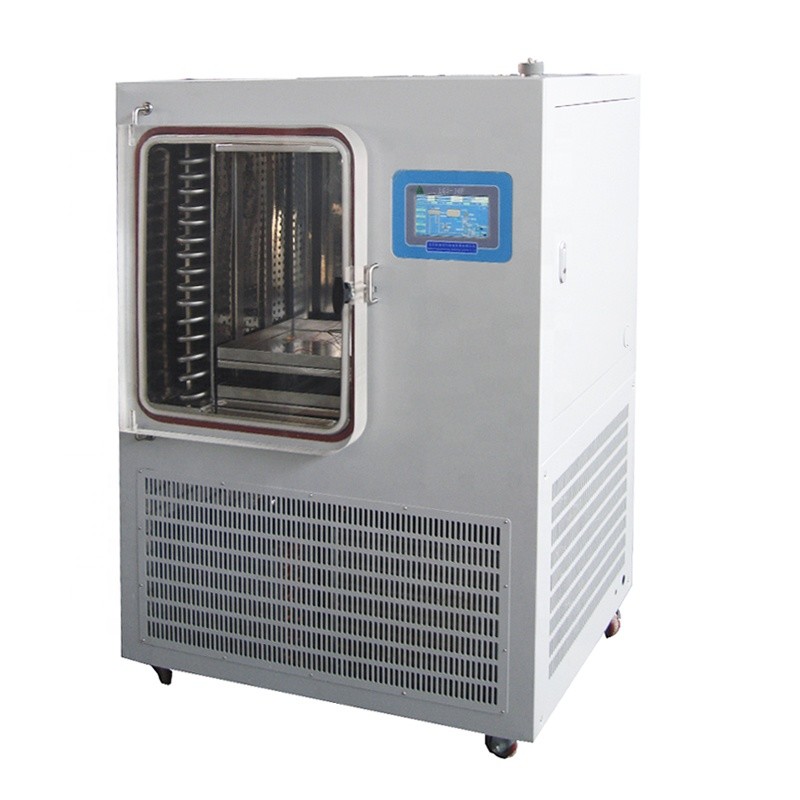

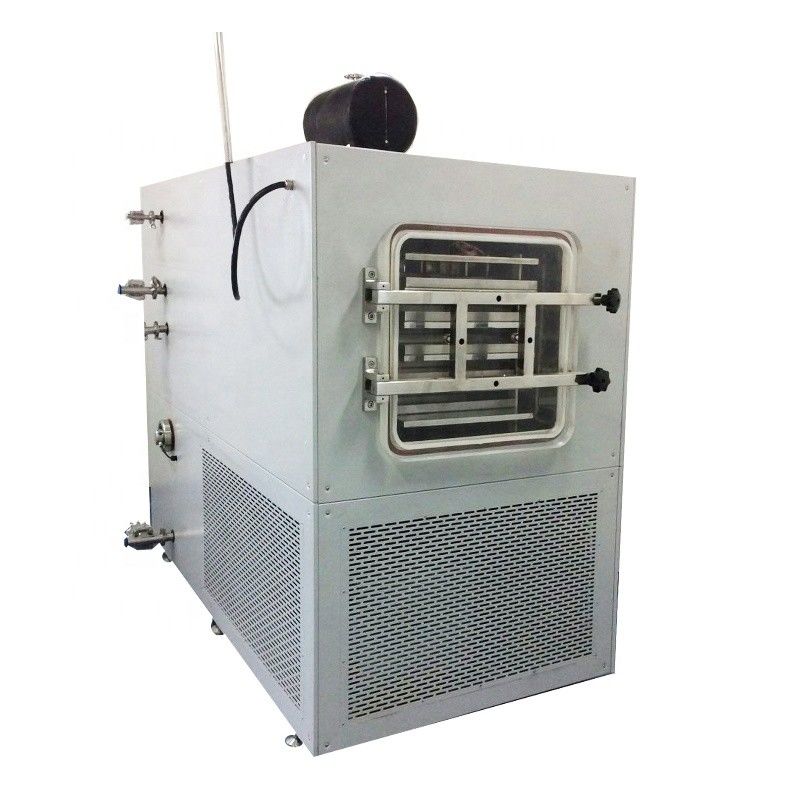

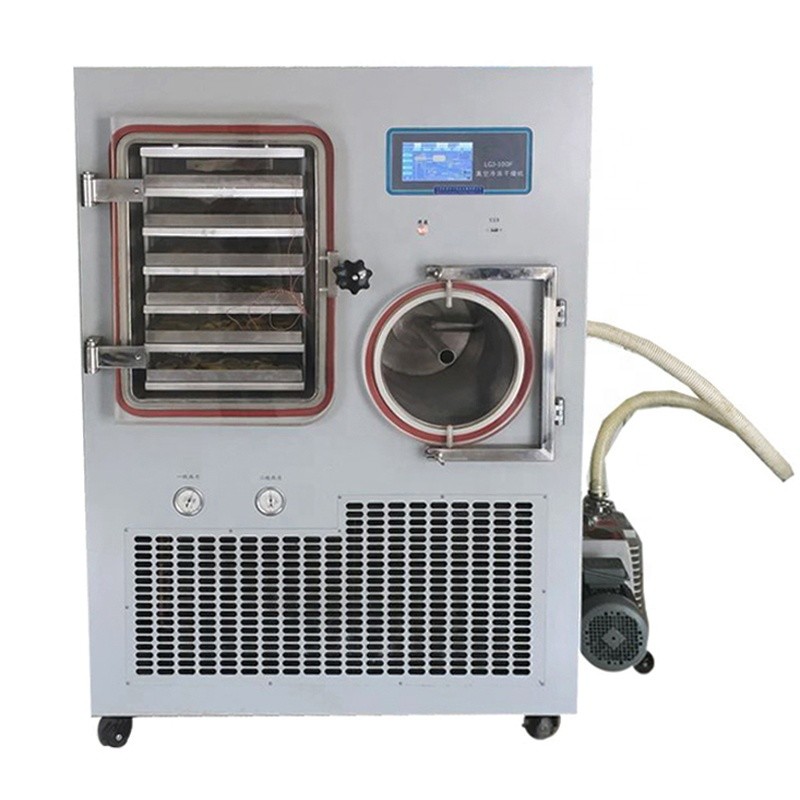

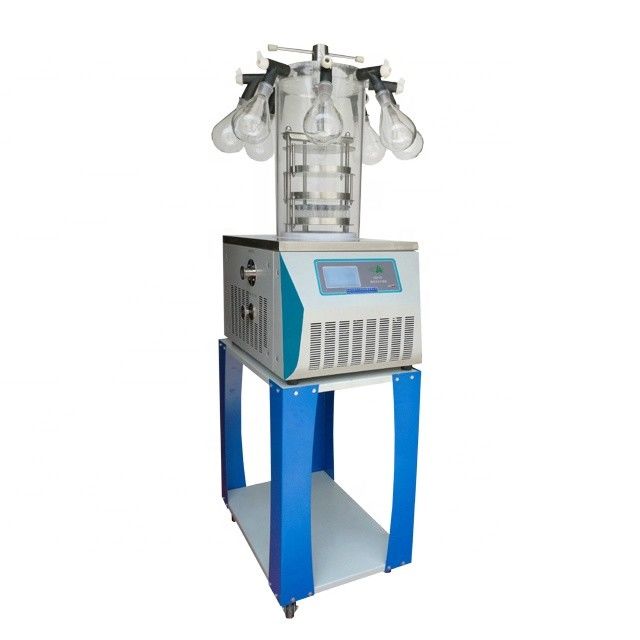

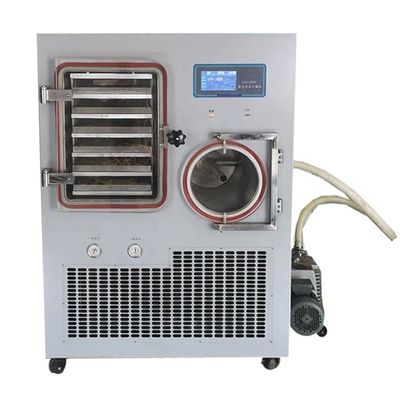

Name: Laboratory Pharmaceutical Lyophilizer Vacuum Freeze Dryer Freeze Dryer
Brand: BOTO
SKU: BT-LGJ Series
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (194 reviews)

^{Laboratory Pharmaceutical Lyophilizer Vacuum Freeze Dryer Freeze Dryer}

^{Instrument introduction}

^{Vacuum freeze dryer: firstly freeze the water-containing material below the eutectic temperature to make the water solid ice, then under a higher vacuum, the ice is sublimated directly into water vapor, and then the water vapor condenser vapor condensation to obtain a dry product technology.}

^{We have LGJ-10/12/18 laboratory small lyophilizer, also have pilot scale LGJ-20/30, 50/100/200 for different capacity requirements. Normal type, Stoppering type. Optional heating function (electric heating, or Silicone oil heating).}

^{Normal type}	^LGJ-20F	^LGJ-30F	^LGJ-50F	^LGJ-100F
^{Freeze-dried area}	^0.3M2	^0.4M2	^0.5M2	^1M2
^{Number of plate}	³⁺¹	⁴⁺¹	⁴⁺¹	⁶⁺¹
^{Plates space}	^70mm	^70mm	^70mm	^70mm
^{Plate size}	^27040015	^30034015	^36048015	^36048015
^{Plate temperature}	^{-50℃ to 70℃}	^{-50℃ to 70℃}	^{-50℃ to 70℃}	^{-50℃ to 70℃}
^{Cold trap temperature}	^≤-75℃	^≤-75℃	^≤-75℃	^≤-75℃
^{Water for cold trap}	^4KG/24Hr	^6KG/24Hr	^8KG/24Hr	^15KG/24Hr
^Defrost	^{electric defrost}	^{Natural defrost}	^{Natural defrost}	^{electric defrost}
^Voltage	^AC220V/50Hz	^AC220V/50Hz	^AC380V/50Hz	^AC380V/50Hz
^Dimension	^8008001550	^8807351320	^9607851450	^{10207801700}

^{Main features

1. It is our company’s patented product . Freezing and drying is finished in the same place. It is easy to operate,and have a good drying effect.

2. The ACRYLIC material is used for the drying chamber door. It is colorless, transparent, and the whole process of lyophilization can be observed.

3. Inflatable (drainage) valves use safety diaphragm valves, which can be connected to an inert gas source, and filled with inert gas after drying to extend material storage time.

4. Patented gas diversion technology, uniform ice catching in cold traps, and strong ice catching capability.

5. Internationally renowned brand compressors, high efficiency, long life, low noise.

6. Separator patented technology and partition temperature fuzzy control technology, the shelf temperature difference is small, the temperature control accuracy is high, and the drying effect is even.

7. The freeze-drying curve optimization control technology can control the cooling rate in the pre-freeze phase, and at the same time, it can control the sample heating rate and the current stage vacuum degree in the sublimation and analytical drying stages.

8. The powerful sensor calibration function ensures the long term accuracy of the measured value.

9. 7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.

10. The professionally designed FD-EMB control system can save hundreds of process recipes. Each recipe contains 50 temperature control zones to improve the process optimization rate.

11. Intelligent data recording system, real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve, export data can be viewed through the computer and print a variety of operations to facilitate process optimization and verification of drying effect.

12. Flexible manual + automatic control, manually used for groping the process, automatically used for mass production.

13. Real-time alarm display and historical alarm query function to facilitate fault diagnosis and equipment maintenance.

14. Setting the user level and password , and decentralizing operation management.}

^{Packing&Shipping:}

^{Packaging

-The glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases;

-Both neutral and customized packaging can be available.

Shipping

-We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the appropriate

one based on your timeline and budget. Besides, you can choose to use your own shipping agent.}

^FAQ:

^{1. The period, scope and condition of the warranty.

(1)We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&quality

problem, we offer replacement, maintenance service.

(2)The damage caused by the transportation problem shall be borne by the seller.

2. How to solve the problem of your equipment?

Please send us email of the problem, pictures or a small video will be much better. we will find the problem and tell you how to

solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.

3.How to shipping the replacement parts?

We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.

4. Could you do customized for us?

We are a manufacturer that can provide all kinds of customized services.}

BOTO Group is a manufacture of lab equipment, if any inquiry, please feel free to contact us for more information. Thank you.

Tag:

Place of Origin:	Shanghai
Brand Name:	BOTO
Certification:	ISO CE
Model Number:	BT-LGJ Series

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	pvc-case
Supply Ability:	1000 per month
