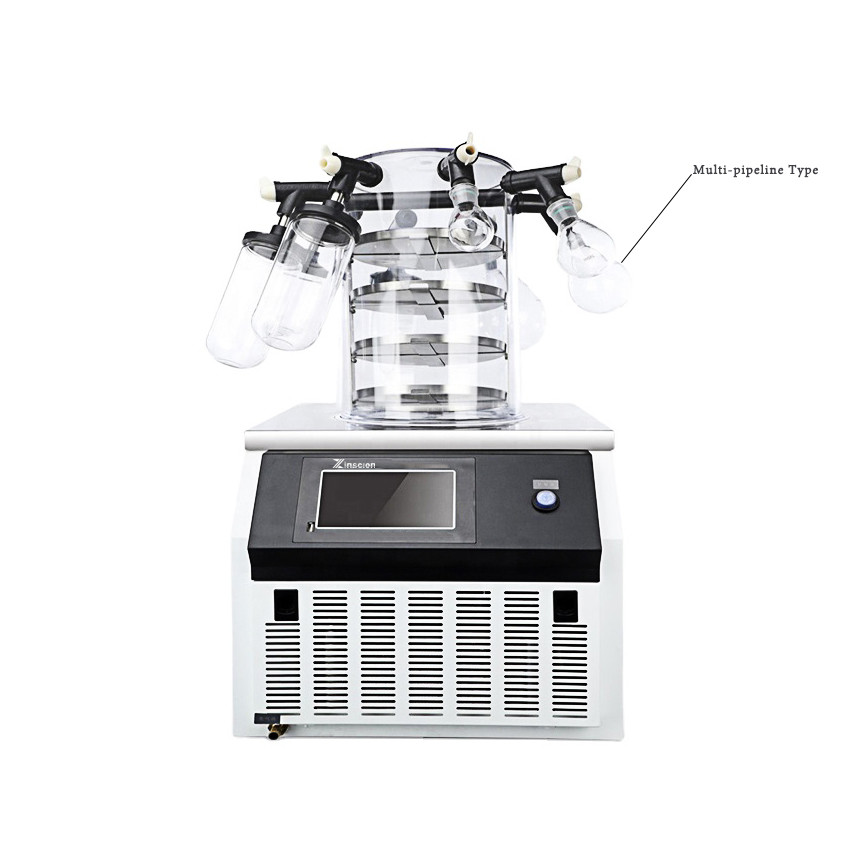

Mini Freeze Drying Lyophilizer Machine Freeze Dryer

Basic Information
Place of Origin: Shanghai
Brand Name: BOTO
Certification: ISO CE
Model Number: BT-ZS-10N Ordinary
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: pvc-case
Supply Ability: 1000000
High Light:

Mini Freeze Drying Lyophilizer Machine

,

Touch Screen Lyophilizer Machine

,

Embedded Circuit Lyophilizer Machine

ZS-10N Freeze Dryer



Features:

Accord with international standards of Green environmental friendly 7" True-color Touch Screen, English Bilingual Interface, display drying curve and history curve; U disk Can storage lyophilized data; Upload software can print curve; Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data;

Large opening trap, no coil inside, with samples pre-freeze function Imported refrigeration compressor, low noise Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean Transparent Bell type drying room, secure and ocular Stainless steel sample holder, common sample plate spacing adjustable Small size and easy to operate Nitrogen inflation valve within



Product Paramenters

ZS-10N
Ordinary
Top-Press
Ordinary Multi-Manifolds
Top-Press Multi-Manifolds
No-load Temperature
<-56℃
<-56℃
<-56℃
<-56℃
Freeze Area
0.12 m2
0.08 m2
0.12 m2
0.08 m2
Plate Load Capacity
1.5 L
1 L
1.5 L
1 L
Ability to Capture Water
3Kg
3 Kg
3 Kg
3 Kg
Vacuum Degree
<10Pa
<10Pa
<10Pa
<10Pa
Machine Dimension
W450×D580×H(380+450) mm
W450×D580×H(380+450) mm
W450×D580×H(380+450) mm
W450×D580×H(380+450) mm
Sample Tray Size
4×Φ200mm
3×Ø180 mm
4×Φ200mm
Ø 3×180 mm
Power
950W
Power Supply
110V/60Hz or 220V/50Hz
interlayer spacing
70 mm
Cold trap size
Ø215×160 mm
The number of Schering bottles
Ø22: 260
Ø22: 165
Ø22: 260
Ø22: 165
Ø16: 480
Ø16: 285
Ø16: 480
Ø16: 285
Ø12: 920
Ø12: 560
Ø12: 920
Ø12: 560
N.W./ G.W
80KG/95KG
85KG/100KG
95KG/110KG
100KG/115KG



Mini Freeze Drying Lyophilizer Machine Freeze Dryer 0



Certifications:

Mini Freeze Drying Lyophilizer Machine Freeze Dryer 1

Packing&Shipping:

Packaging
-The glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the appropriate
one based on your timeline and budget. Besides, you can choose to use your own shipping agent.

Mini Freeze Drying Lyophilizer Machine Freeze Dryer 2

Mini Freeze Drying Lyophilizer Machine Freeze Dryer 3

Mini Freeze Drying Lyophilizer Machine Freeze Dryer 4

FAQ:

1. The period, scope and condition of the warranty.
(1)We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&quality
problem, we offer replacement, maintenance service.
(2)The damage caused by the transportation problem shall be borne by the seller.

2. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find the problem and tell you how to
solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.
3.How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
4. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.
