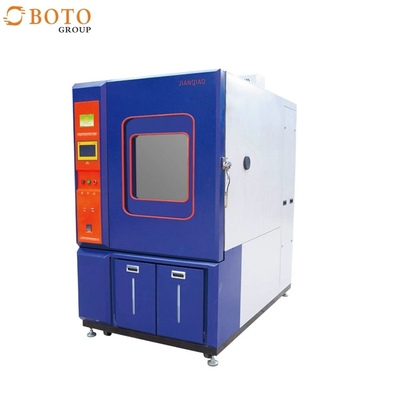

Environmental Test Chambers Small High And Low Temperature Test Chamber Lab Humidity Chamber BT-107 Dry Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE certificate
Model Number: BTHJ-SI9
Minimum Order Quantity: 1 Set
Packaging Details: Plastic+wooden case
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 set/ Month
Usage: Lab Test Material: SUS 304 Stainless Steel
Heat-up Time: About 3-5°C/min Power Source: AC220V 50/60Hz
Controller: OTS Designed Controller With LCD Touch Screen Temp Deviation: ±0.1℃
Pull-down Time: About 0.7-1°C/min Tem Fluctudtiont: ±0.5°C
High Light:

Automatic Solar Power Egg Incubator

,

220V Chicken Egg Hatcher Machine

,

PP Solar Power Egg Incubator

Environmental Test Chambers Small High And Low Temperature Test Chamber Lab Humidity Chamber BT-107 Dry Chamber

Function

1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect

Design Features

1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain

Programmable Controller

1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output

Optional

Other size/temperature/humidity... can be chosen



Specifications

Temperature range:-50ºC~150ºC
Temperature fluctuation:≤±0.5ºC (no load)
Temperature uniformity:≤±2ºC (no load)
humidity range:30~98%R.H(The temperature is 25-80ºC)
Humidity evenness:+2~-3%(>75%RH),±5%(≤75%RH)
Analytic accuracy: temperature:0.1ºC humidity:0.1%RH
heating rate:1~3ºC/min (When no load, the whole journey average)
rate of temperature fall:0.7~1.5ºC/min (When no load, the whole journey average)
total power: about12KW
power supply: 380v 50hz







Environmental Test Chambers Small High And Low Temperature Test Chamber Lab Humidity Chamber BT-107 Dry Chamber 0

Environmental Test Chambers Small High And Low Temperature Test Chamber Lab Humidity Chamber BT-107 Dry Chamber 1

Company Profile



BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



Environmental Test Chambers Small High And Low Temperature Test Chamber Lab Humidity Chamber BT-107 Dry Chamber 2



Main equipment

Environmental Test Chambers Small High And Low Temperature Test Chamber Lab Humidity Chamber BT-107 Dry Chamber 3

In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



Main market

Environmental Test Chambers Small High And Low Temperature Test Chamber Lab Humidity Chamber BT-107 Dry Chamber 4



The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.



Production Process

Environmental Test Chambers Small High And Low Temperature Test Chamber Lab Humidity Chamber BT-107 Dry Chamber 5

Environmental Test Chambers Small High And Low Temperature Test Chamber Lab Humidity Chamber BT-107 Dry Chamber 6

Environmental Test Chambers Small High And Low Temperature Test Chamber Lab Humidity Chamber BT-107 Dry Chamber 7

Environmental Test Chambers Small High And Low Temperature Test Chamber Lab Humidity Chamber BT-107 Dry Chamber 8



Production Details



Environmental Test Chambers Small High And Low Temperature Test Chamber Lab Humidity Chamber BT-107 Dry Chamber 9

Environmental Test Chambers Small High And Low Temperature Test Chamber Lab Humidity Chamber BT-107 Dry Chamber 10

Environmental Test Chambers Small High And Low Temperature Test Chamber Lab Humidity Chamber BT-107 Dry Chamber 11
