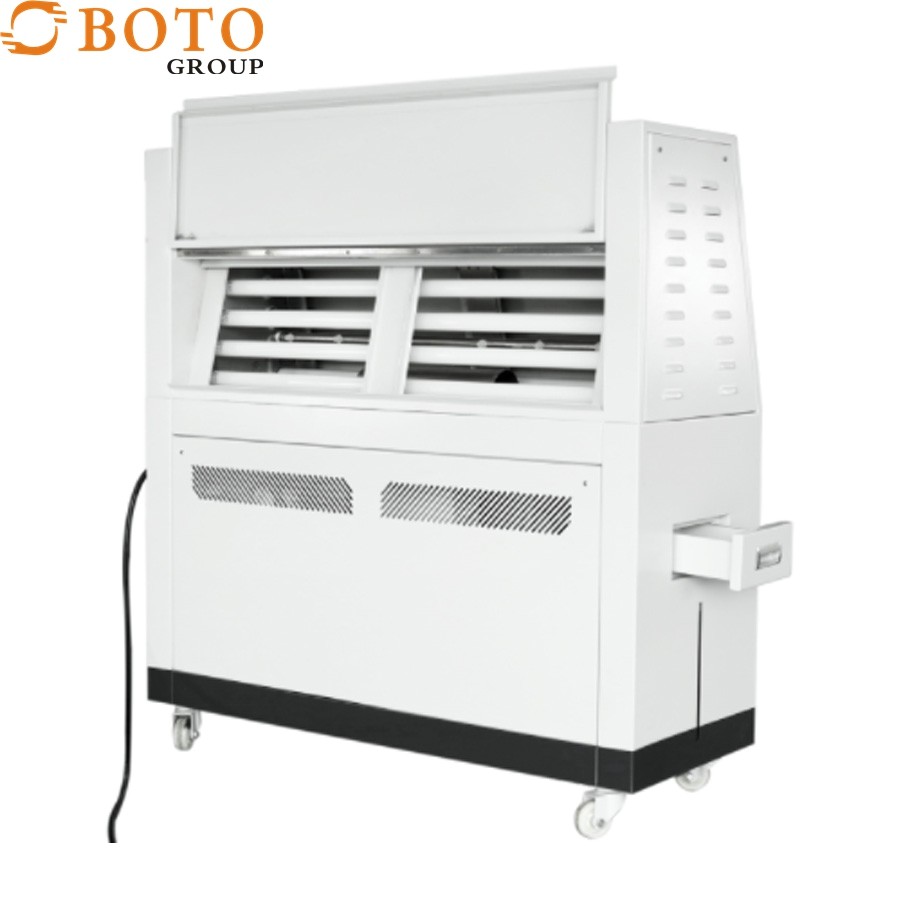

Environmental Weathering Test Chamber For Aging Tester With UV Light Machine

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: B-ZW
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: PLY-WOODEN CASE
Delivery Time: 20-30workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000Set/month
Power:: Electronic Certification:: ISO, CE
Customized Support:: OEM, ODM Material:: SUS#304 Stainless Steel Plate
Temperature Range:: Ange: RT+10℃~70℃ Irradiance:: 1.0W/m2
Package: Strong Wooden Package Testing Time:: 0~999H, Adjustable
High Light:

1.0W/m2 Environmental Test Chambers

,

SUS304 UV Light Environmental Test Chambers

,

Weathering Uv Aging Testing Chamber

Environmental Weathering Test Chamber For Aging Tester With UV Light Machine
Product Description
Product description: This uv aging testing chamber is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.
Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 0

Applications

1. Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature. 2. To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation. 3. Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.
Item
Specification
Chamber dimension (W*D*H)
1300*500*1460mm
Chamber material
SUS#304 stainless steel
Temperature range
RT to 70℃
Temperature fluctuation
≤±1.0℃
Temperature uniformity
3℃
Humidity range:
≥75%RH
Controller
Programmable controller, LCD touch screen
Control mode
Balance temperature humidity control (BTHC)
Test cycle setting
Exposure, condensation and water spray test cycle is programmable
Water spray cycle
Spray 18mins in every 120mins / spray 12mins in every 60mins
Water usage
8L/day
Distance from sample to lamp
55±2mm
Centre distance between lamps
65~70mm
Irradiance range
0.45~0.90W/m2
Lamp power
40W/Piece
UV lamps
Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime)
Testing time
0~999H, adjustable
Specimen Size
75×290mm (24pcs) / 75x150mm (48pcs), maximum thickness 5mm
Protection system
Overload short circuit protection
Over temperature protection
Water lacking protection
Earth leakage protection
Auto shut off protection

Chamber Structure

The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate. The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.

Control System: Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature. The radiometer probe is fixed so as to avoid the frequent installation and disassembly. The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement. The radiation intensity is not more than 50W/m2. The illumination and condensation can be controlled independently or alternating and circularly. Test Specimen Mounting: The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, uv aging testing chamber is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.




Production Process



Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 1






Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 2

Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 3

Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 4

Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 5



Production Details

Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 6

Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 7

Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 8

Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.



Company Profile



BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



Main equipment

  • Constant Temperature and Humidity Test Chamber
  • Salt Spray Test Chamber / Corrosion Cyclic Salt Spray Test Chamber
  • UV Accelerated Aging Test Chamber
  • Mini Environmental chamber / Desktop Environmental Test Chamber
  • Walk in Constant Temperature and Humidity Lab
  • High Temperature Chamber and Other Lab Test Equipment etc.

Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 9



The factory has the ability to calibrate, and the customer can also designate a ISO 17025 accredited third-party organization to calibrate and issue a calibration report.



Certification

Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 10

The certificate is valid until June 17, 2024



Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 11

Cooperative partners

Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 12



BOTO ADVANTAGE



Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 13

Customers photos



Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 14

Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 15

OUR TEAM

Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 16

Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.











Environmental Weathering Test Chamber For Aging Tester With UV Light Machine 17
