| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE certificate |
| Model Number: | B-T-1000(A~E) |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Plastic+wooden case |
| Delivery Time: | 5-15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 set/ Month |
| Model: | B-T-1000(A~E) | Name: | Rapid Temperature Test Chamber |
|---|---|---|---|
| Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| Power Source: | AV：220V/380V 50/60Hz | Power（KW）: | 1KW~2KW |
| Temp Uniformity: | ±1.0℃ | Temp&Humi.Deviation: | ±1.0℃/±3.0℃RH |
| High Light: | MIL-STD-2164 Climatic Test Chamber,2KW Rapid Temperature Test Chamber,Insulated Enclosure Climatic Test Chamber |
||

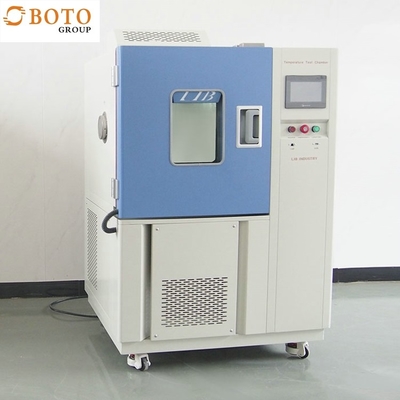

MIL-STD-2164 Climatic Test Chamber Rapid Temperature Test Chamber GJB-1032-90
Description:
A Rapid Temperature Test Chamber is a type of environmental chamber that is designed to rapidly change the temperature of a sample or product under test. These chambers are commonly used in industries such as electronics, automotive, and aerospace, where the thermal performance of components and materials is critical. The chamber typically consists of an insulated enclosure with a temperature control system that can quickly raise or lower the temperature. The temperature range of these chambers can vary depending on the application, but they typically operate between -70°C to +200°C. The Rapid Temperature Test Chamber can be equipped with a variety of sensors and data acquisition systems to monitor and record the temperature, humidity, and other environmental conditions during testing. The chamber may also have a variety of additional features, such as air circulation systems, thermal shock capabilities, and vibration testing capabilities. These chambers are used to simulate real-world temperature conditions that a product or material may experience during its lifetime. This allows manufacturers to test the reliability and performance of their products under extreme temperature conditions, ensuring that they meet the required standards and specifications.
Manufacturer:
| Model | dry heat | B-T-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) |
| damp and ho | B-TH-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) | |
| Internal Dim (CM) | 40x50x40 | 45x60x45 | 60x75x50 | 70x90x80 | 100x100x100 | |
| External Dim(CM) | 75x203x203 | 75X189X110 | 90X177X130 | 100X180X103 | 130X190X123 | |
| Relative Humidity | 20％-98％RH | |||||
Temp Range |
-70℃~180℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ E:-70℃) | |||||
| heat-up time | 1℃-15℃／min |
|||||
| Pull down time | 1℃-15℃／min | |||||
| Temp Fluctudtiont | ±0.5℃ | |||||
| Temp Uniformity | ±1.0℃ | |||||
| Temp&Humi.Deviation | ±1.0℃/±3.0℃RH | |||||
| Interior | SUS#304Stainless steel plate | |||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||
| Power Source | AV:220V/380V 50/60Hz | |||||
| Power(KW) | The technical proposal shall prevail | |||||
Our company:
Packing/Shipping:
FAQ
1.What's your MOQ?
At present we haven't strict policy for this, so welcome orders with any quantity.
2. Are you a factory or trade company?
We are a manufacturer located in Hunan. You will be welcomed to visit our factory or we also can share our factory vedio for you at any time.
3. We are not professional for operation and installation of your machine?
While it is not a stumbling block, our machine is easy to operate, no need to professional training, and the instruction manual and video sent to you are enough. What's more, we have professional engineers and they can solve all questions.
