-70 To +150c Temperature Humidity Environmental Test Climatic Chambers

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE TUV ISO
Model Number: B-T-225
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 15 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 set/month
Model: B-T-225 Power: 2kw~6.5kw
Internal Dim: 60*75*50 CM External Dim: 90*177*130 CM
Relative Humidity: 20%~98%RH Interior: SUS#304Stainless Steel Plate
Temp Range: -70°C~150°C Pull-down Time: About 0.7~1°C/min
Power Source: AC:220V/380V 50/60Hz Exterior: Coating Or SUS#304 Stainless Steel Plate
Heat-up Time(min): About 3~5°C/min Temp Fluctuation: ±0.5°C
Temp Uniformity: ±1.0°C
High Light:

Humidity Environmental Test Climatic Chambers

,

6.5kw Environmental Test Chambers

,

SUS304 Environmental Test Chambers

Programmable High Low Temperature Chamber Temperature Humidity Test Chamber



This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define performance of material.

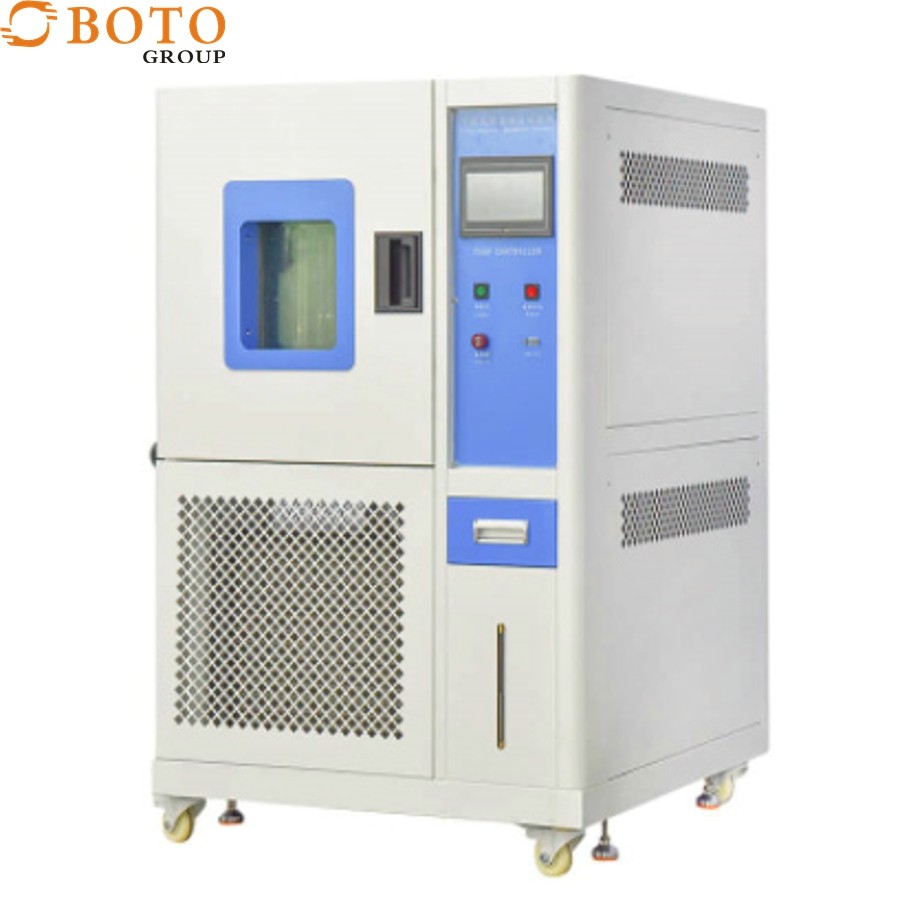

-70 To +150c Temperature Humidity Environmental Test Climatic Chambers 0

Product Description

This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define performance of material.

Mainly used in national defense industry, aviation industry, automotive parts, electronic components, plastics industry, food industry and other related product development, straightening management engineering test specifications. Its characteristics are as follows:

1. The import of compressors and refrigeration accessories by the well-known brands in the national boundaries ensures the stability of the refrigeration system.

2. The cause of the faults can be displayed and the reason is easy to exclude.

3. The special air supply cycle design, the temperature and humidity distribution uniformity is good.

4. The whole series of imported microcomputer controllers are colored. Color touch screen, Chinese and English system, can be used as a function of setting the city value. It can show the cause of the trouble, exclude easy, super quiet design, effectively reduce the running noise of the equipment, and

5. Super quiet design, effectively reduce the running noise of the equipment.

6. Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.

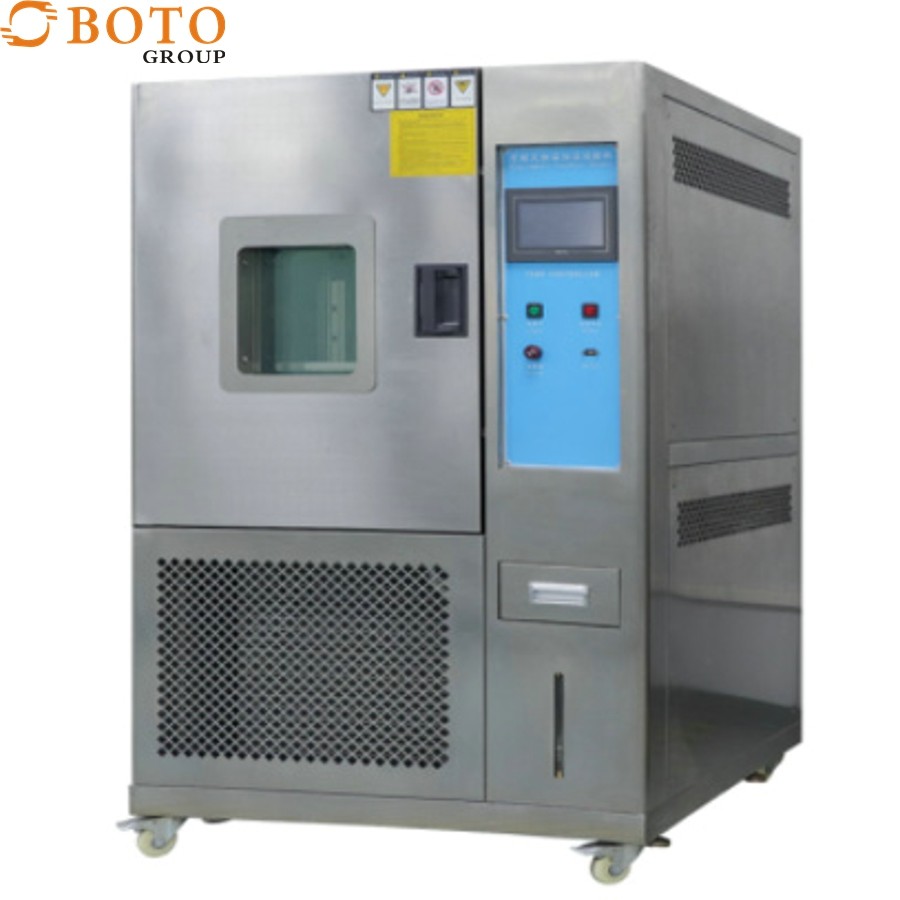

-70 To +150c Temperature Humidity Environmental Test Climatic Chambers 1

Standards: GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566



Characteristics:

1. Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.

2. Control temperature&humidity well-distributed, precisely and steady.

3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.



Benchtops Temperature & Humidity Test Chamber, High Temperature Test Chamber, Dry Oven, Alternating Temperature Test Chamber, Alternating Temperature & Humidity Test Chamber, Temperature Rapid Change Test Chamber, Temperature & Humidity Rapid Change Test Chamber, Alternating Temperature Alternating Humidity Rapid Change, Thermal shock Test Chamber(Two-zone, Three-zone), Large Walk-in Test Room

-70 To +150c Temperature Humidity Environmental Test Climatic Chambers 2

Applications

● To simulate test environment with different temperature and humidity

● Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…

● Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation

● Uncover test unit weakness in a short-term test with accelerated time effect



Specifications



Model BT-280 BT-2150 BT-2225 BT-2408 BT-2800

Inner Size

W×H×D(cm)

40×50×40 50×60×50 50×75×60 60×85×80 100×100×80

Outside Size

W×H×D(cm)

93×155×95 100×148×106 117×166×91 140×176×101 170×186×111
Volume (V) 80 L 150L 225L 408L 800L
Temp and Hum Range

A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C

RH20%-98%

Function Fluctuation ±0.5°C ±2.5%RH



Chamber Design Features

● High performance and quiet operation (68 dBA)

● Space-saving designed for flush installation to wall

● Full thermal break around doorframe

● One 50mm diameter cable port o left, with flexible silicone plug

● Direct water supply connection for continuous operation

● Accurate wet/dry-bulb humidity measurement system for easy maintain



Programmable Controller

● PIC controller for test chamber

● Step types include: ramp, soak, jump, auto-start, and end

● RS-232 interface to connect computer for output

-70 To +150c Temperature Humidity Environmental Test Climatic Chambers 3

-70 To +150c Temperature Humidity Environmental Test Climatic Chambers 4

-70 To +150c Temperature Humidity Environmental Test Climatic Chambers 5



Features:



1. Small size, special design and overlapping, not occupying planar space, suitable for laboratory use.

2. Low power consumption, energy saving and consumption reduction; low noise, low radiation, green

environmental protection.

3. High efficiency, communication mode using Qualcomm software F4 controller to complete a variety

of tests at the same time.





















Component & Spare Parts Used for the Chamber



-70 To +150c Temperature Humidity Environmental Test Climatic Chambers 6-70 To +150c Temperature Humidity Environmental Test Climatic Chambers 7



TECUMSEH compressor DANFOSS Filter







-70 To +150c Temperature Humidity Environmental Test Climatic Chambers 8-70 To +150c Temperature Humidity Environmental Test Climatic Chambers 9



DANFOSS expansion valve AIRMENDER Gas Liquid Separators





Packing & Delivery



1.Standard exported package: Internal anticollision protection, external export wooden box packaging.



2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.



3. Responsible for the damage during the shipping process, will change the damage part for you for free.



4.15-20days after confirming order,detail delivery date should be decided according to production season

and order quantity.

-70 To +150c Temperature Humidity Environmental Test Climatic Chambers 10-70 To +150c Temperature Humidity Environmental Test Climatic Chambers 11





Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
