Environmental Test Chambers High Temperature Chamber Laboratory Equipment GB/T2423.2 Machine

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE
Model Number: DHG-9140A 101A-2S
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: PLY-Wooden case
Delivery Time: 12-20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000set/year
Brand Name: BOTO Model: DHG-9140A 101A-2S
Interior Dimension: 550*450*550 Carton Size: 680*590*885
Temperature Fluctuation: ±1℃ Temperature Resolution Resolution: 0.1℃
Power: 2000W Mains Inpu: 220V 50HZ
High Light:

15120 Capacity Egg Incubator

,

5.6KW Chicken Egg Hatching Machine

,

380V Chicken Egg Hatching Machine

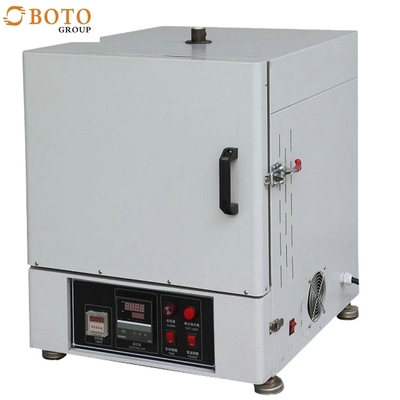

Environmental Test Chambers High Temperature Chamber Laboratory Equipment GB/T2423.2 Machine



Introduction:

High Temperature Oven can provide a stable test space for preheating, drying, changes about physics and chemistry testing . It supplies precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.Applications:Plastic Rubber Materials,Adhesive Tape,Food,Pharm,Daily-used chemical,etc.

Advantages

1.Precision temperature controller provides accurate, stable conditions of constant temperature, in order to facilitate the test
or dry conducted.
2.The liquid expansion over-temperature power protection devices, to ensure the safety of the test article.
3.With adjustable air intake and exhaust ports, according to the test conditions of different options ,Choose to resize or switch.
4.Timing device for LED Digital constant timing, providing complete use Conditional design.
5.Machine can be designed rely on customers requirements,such as the test cable hole,casters,controller’s position ect.
6.Machine continuous running time is above three month
7.Alarm device ,when over-temperature protection action and timing is complete ,that alarm will inform and automatic shut down.

Environmental Test Chambers High Temperature Chamber Laboratory Equipment GB/T2423.2 Machine 0

Environmental Test Chambers High Temperature Chamber Laboratory Equipment GB/T2423.2 Machine 1

Chamber Materials

1.Inner chamber materials:SUS stainless steel plate
2.External chamber materials:Special steel, galvanized anti-rust treatment, outside with Advanced wear-resistant resin paint
coating.
3.Insulation material: aluminum silicate glass wool
4.The clapboard Material: Stainless Steel
5.Stainless steel electric heater Material: fin heat pipe type
6.Time control: 0 ~ 999H/M/S adjustable.
7.The rmometry body: T thermocouple

product description:



  • PD-SO
model B-RUL-45 B-RUL--60 B-RUL-80 B-RUL-100
design dimension 45x45x45 60x60x60 80x80x80 100x100x100
carton size 103x123x77 118x138x92 138x158x112 158x178x132
  RT+10℃-200℃(1300°℃)
economy

model



DHG-9030A
101A-0S
DHG-9070A
101A-1S
DHG-9140A
101A-2S
DHG-9240A
101A-3S
DHG-9420A
101A-4S
DHG-9620A
volume 30L 70L 136L 220L 420L 620L
Interior dimension 350*350*350 450*350*450 550*450*550 600*500*750 640*585*1355 840*600*1355
mmW*D*H carton size 480*470*685 580*470*785 680*590*885 730*640*1085 780*750*1880 980*800*1880
temperature fluctuation ±1℃ ±1℃ ±1℃ ±1℃ ±1℃ ±1℃
temperature resolution 0.1℃ 0.1℃ 0.1℃ 0.1℃ 0.1℃ 0.1℃
temperature control range RT+10-250℃ RT+10-250℃ RT+10-250℃ RT+10-250℃ RT+10-200℃ RT+10-200℃
mains input 220V 50HZ 220V 50HZ 220V 50HZ 220V 50HZ 220V 50HZ 220V 50HZ
input powe 650W 1500W 2000W 2400W 4000W 4800W
volume 30L 70L 136L 220L 420L 620L



Our Company:

Environmental Test Chambers High Temperature Chamber Laboratory Equipment GB/T2423.2 Machine 2

Environmental Test Chambers High Temperature Chamber Laboratory Equipment GB/T2423.2 Machine 3

Environmental Test Chambers High Temperature Chamber Laboratory Equipment GB/T2423.2 Machine 4

Environmental Test Chambers High Temperature Chamber Laboratory Equipment GB/T2423.2 Machine 5

Environmental Test Chambers High Temperature Chamber Laboratory Equipment GB/T2423.2 Machine 6

FAQ
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE
maintenance,while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or sky video chat if necessary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
