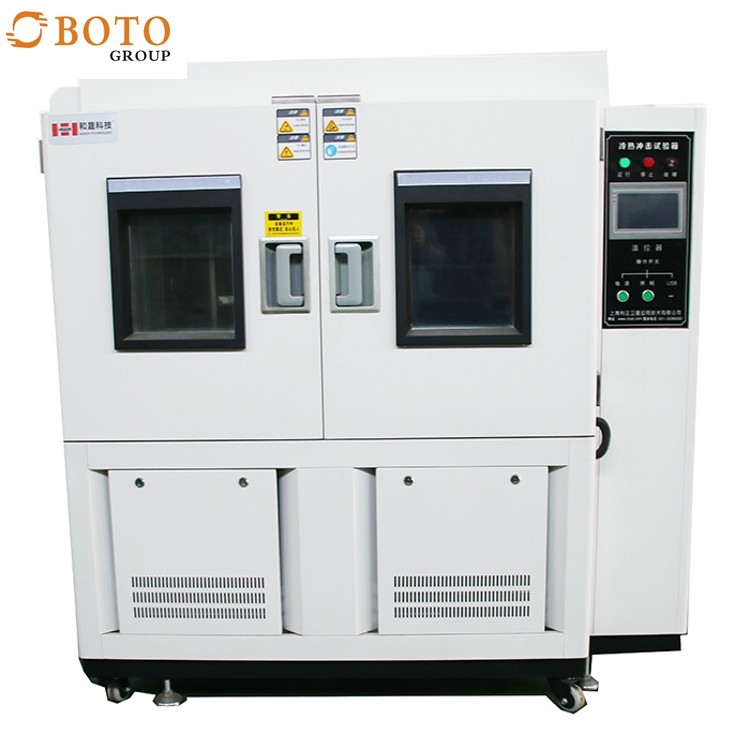

Lab Drying Oven Three Box-Type Hot And Cold Impact Chamber B-TCT-402 GB/T2423.1.2-2001

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE certificate
Model Number: BTCY-3168
Minimum Order Quantity: 1 Set
Price: Discussible
Packaging Details: wooden case
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 set/ Month
Model: B-TCT-402 Internal: 40x35x35
External Dim: 143x210x170 Low Temp Range: Automatic Egg Turning
Test Temp Rang: -40℃-150℃ HighTemp Rang: +80℃~200℃
Interior: SUS#304Stainless Steel Plate Exterior: Coating Or SUS#304Stainless Steel Plate
High Light:

5280 Capacity Chiken Egg Incubator

,

200W Automatic Egg Incubator Machine

,

5cm Panel Egg Incubator Machine

Lab Drying Oven Three Box-Type Hot And Cold Impact Chamber B-TCT-402 GB/T2423.1.2-2001



Product Description

Mainly used in national defense industry, aviation industry, automotive parts, electronic components, plastics industry, food industry and other related product development, straightening management engineering test specifications. The regenerative cold and hot shock tester is widely used in electronic parts, semiconductors, metals, chemicals, materials and other testing equipment. Its characteristics are as follows:
1. Touch-controlled color man-machine interface + PLC + J import temperature controller
2. Setting cycle and defrosting times;
3. Display of abnormal and fault points with simple teaching reminders for troubleshooting;
4. Comprehensive system safety protection and power outage memory;
5. Multiple safety protection: refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection
6. Air-cooled or water-cooled cooling can be selected according to customer's requirements.



Lab Drying Oven Three Box-Type Hot And Cold Impact Chamber B-TCT-402 GB/T2423.1.2-2001 0

Lab Drying Oven Three Box-Type Hot And Cold Impact Chamber B-TCT-402 GB/T2423.1.2-2001 1

Lab Drying Oven Three Box-Type Hot And Cold Impact Chamber B-TCT-402 GB/T2423.1.2-2001 2

Common fault:

1. In the high temperature test, if the temperature change does not reach the test temperature value, you can check the electrical system and remove the fault one by one. If the temperature rises slowly, it is necessary to check the wind circulation system to see whether the regulating baffle of the wind circulation is open normally. On the contrary, it is necessary to check whether the motor of the wind circulation is running normally. If the temperature overshoot is severe, then the setting parameters of PID need to be adjusted. If the temperature rises directly and overtemperature protection, then the controller fails and the control instrument must be replaced.



2. Low temperature can not reach the test index, it is necessary to observe the change of temperature. Does the temperature drop slowly, or does the temperature tend to rise after the temperature reaches a certain value? The former is to check whether to do low temperature test before drying the studio, so that the studio to keep dry after the test sample into the laboratory and then do the test, the laboratory test sample is placed too much, so that the wind in the laboratory can not be fully circulated, after eliminating the above reasons, it is necessary to consider whether the fault in the refrigeration system, In this way, it is necessary to ask the professional personnel of the manufacturer to overhaul. The latter phenomenon is caused by the use of the equipment environment is not good, the equipment placed in the environment temperature, placing position (the distance between the box and the wall) to meet the requirements (in the equipment operation and use instructions are specified).

Lab Drying Oven Three Box-Type Hot And Cold Impact Chamber B-TCT-402 GB/T2423.1.2-2001 3

Lab Drying Oven Three Box-Type Hot And Cold Impact Chamber B-TCT-402 GB/T2423.1.2-2001 4



product description:

Model B-TCT-401 B-TCT-402 B-TCT-403) B-TCT-501 B-TCT-502 B-TCT-503 B-TCT-601 B-TCT-602 B-TCT-603
Internal (CM) 40x35x35 50x40x40 60x50x50 40x35x35 50x40x40 60x50x50 40x35x35 40x50x40 60x50x50
External Dim(CM) 143x210x170 154x212x170 166x220x180 143x210x170 156x210x170 166x220x180 143x210x170 156x210x190 166x220x180
Low Temp Range -10℃--60℃ -10℃~-70℃ -10℃--80℃
Test Temp Rang -40℃-150℃ -55℃~150℃ -65℃~150℃
HighTemp
+80℃-200 ℃ lvarious specifications applicablel
Recovery time 3 to 5 minutes
Temp Fluctudtiont ±2 ℃(various specifications applicable)
Interior SUS#304Stainless steel plate
Exterior Coating or SUS#304Stainless steel plate
Power Source AV:380V 50/60Hz
Power(KW) 16KW 19KW 19KW 19KW 20.5KW 22KW 19KW 26KW 33KW


Our company:

Lab Drying Oven Three Box-Type Hot And Cold Impact Chamber B-TCT-402 GB/T2423.1.2-2001 5

Lab Drying Oven Three Box-Type Hot And Cold Impact Chamber B-TCT-402 GB/T2423.1.2-2001 6

Lab Drying Oven Three Box-Type Hot And Cold Impact Chamber B-TCT-402 GB/T2423.1.2-2001 7

Lab Drying Oven Three Box-Type Hot And Cold Impact Chamber B-TCT-402 GB/T2423.1.2-2001 8

Packing/Shipping:
Lab Drying Oven Three Box-Type Hot And Cold Impact Chamber B-TCT-402 GB/T2423.1.2-2001 9
Lab Drying Oven Three Box-Type Hot And Cold Impact Chamber B-TCT-402 GB/T2423.1.2-2001 10

FAQ:

1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 14-month warranty after shipment. Generally,

we offer 12 months for the FREE maintenance, while considering of sea transportation,

we can extend 2 months for our customers.

If your machine doesn’t work, you can send E-mail to us and we will try our best to find

the problem by email or skype video chat if neccesary. After confirmation of the problem,

we can send you new spare parts or provide on-site repair.



2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery

time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider

making a special arrangement for you.



3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine.

4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our

officail website directly.
