Internal Size: | 40x50x40 Cm | External Size: | 75(W)x203(H)x203(D) Cm |
---|---|---|---|
Relative Humidity: | 20%-98%RH | Temp Range: | -70℃~180℃ |
Temp Rising Time: | 1-15℃/min (linear Or Nolinear Is Optional) | Temp Falling Time: | 1-15℃/min (linear Or Nolinear Is Optional) |
Temp Fluctuation: | ±0.5℃ | Temp Uniformity: | ±1℃ |
Temp&humidity Deviation: | ±1℃ / ±3%RH | Internal Material: | 304 Stainless Steel Plate |
Exteral Material: | Coating Or 304 Stainless Steel Plate | Voltage & Frequency: | 220V/380V 50/60Hz |
High Light: | AC220V Environmental Test Chambers,Rapid Change Environmental Test Chambers,SS304 Temperature Humidity Chamber |

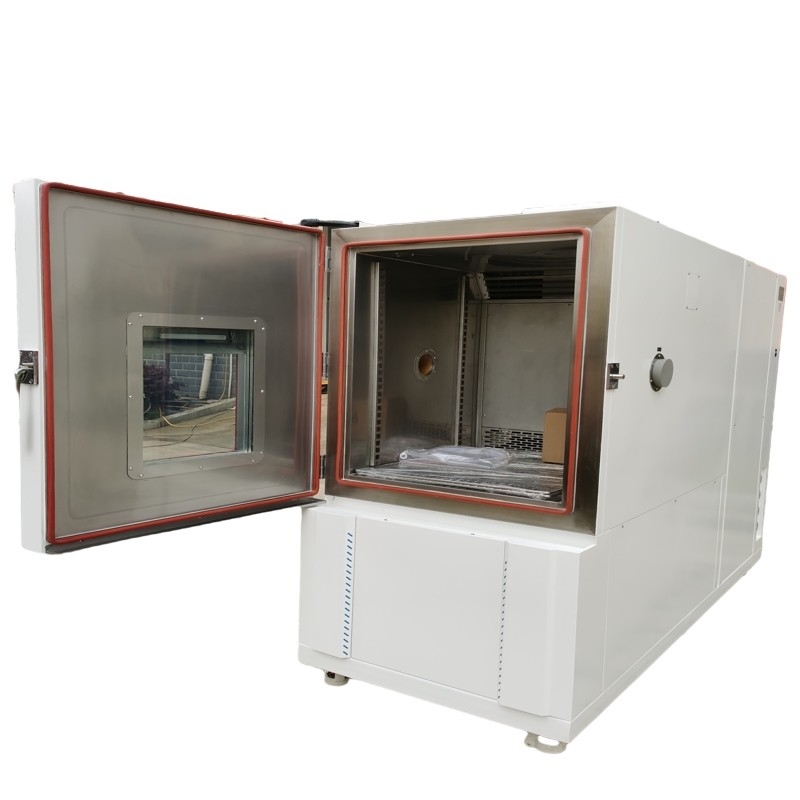

Environment Customized Rapid Temperature Test Chamber
Product Description
APPLICATIONS
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
CHAMBER DESIGN FEATURES
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain
Specification
Model | BT-80(A-F) | BT-150(A-F) | BT-225(A-F) | BT-408(A-F) | BT-800(A-F) | BT-1000(A~F) |
Internal size WxHxD(cm) | 40x50x40 | 50x60x50 | 60x75x50 | 60x85x80 | 100x100x80 | 100x100x100 |
External size WxHxD(cm) | 120x165x115 | 130x170x125 | 140x185x130 | 165x195x155 | 185x200x175 | 190x210x185 |
Weight (about) | 150KG | 180KG | 250KG | 350KG | 500KG | 520KG |
Technical parameter
Temperature range | Low temperature: A: +25 °C B:0°C C:-20°C D:-40°C E:-60°C F:-ZO°C) High temperature: 100°C(150°C) |
Humidity range | 20%~98% R.H. (10%~98%R.H); (5%~98% R.H is a special selection condition) |
Distribution accuracy | 0.1P 0.1%R.H./±2.0P ±3.0%R.H. |
Temp and humi control accuracy | ±0.5t) ±2.5%R.H. |
Heating/cooling time | Heating about: 3°C/min Cooling: 1°C /min |
Internal and external materials | The inner and outer boxes are made of SUS304# stainless steel plate |
Insulation material | High temperature resistant high density ethyl chloroformate foam insulation material |
cooling system | Air-cooled / single-stage compressor (-20°C); two-stage compressor (-40°C - 70 °C) |
Safety device | No fuse switch, compressor overload protection, super humidity over temperature protection, water shortage alarm protection |
power supply | AC220V 50/60Hz & 1 # AC380V 50/60Hz3§ |
Standard:
China Machine Rapid Rate Change Temperature High Low Temperature Cycle Test Chamber
GB/Bb T2423.2-89 high temperature test method GB2423.1-89 test A: low temperature test method 6
Ab IEC60068-2-1 low temperature test method GJB150.4-1986 test at low temperature
EIA - 364-59 test at low temperature IEC60068-2-38 temperature cycle
IEC60068-2-78 constant temperature IEC60068-2-30 temperature cycle
WHY CHOOSE US?
FAQ
1.What's your MOQ?
At present we haven't strict policy for this, so welcome orders with any quantity.
2. Are you a factory or trade company?
We are a manufacturer located in Hunan. You will be welcomed to visit our factory or we also can share our factory video for you at any time.
3. We are not professional for operation and installation of your machine?
While it is not a stumbling block, our machine is easy to operate, no need to professional training, and the instruction manual and video sent to you are enough. What's more, we have professional engineers and they can solve all questions.
4. How about packaging? If machine damaged, what should I do ?
Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement. Damage haven't happened before, if happen, we will arrange replacement.
5. We haven't do business before, how can I trust your company and machine?
We are a factory with more than 13 years and without any complaints on Alibaba. and our machine have exported to many countries and have a good feedback.
6. If I want to visit your factory, is the traffic convenient ?
Our company traffic is very convenient, it is only 10 minutes by car or taxi from our city light rail to our company, we also can arrange the shuttle bus for you to our factory.
7. Does your product have CE certification ?
Yes, we not only have the CE certification,but also have the FCC,ISO,etc.
8. If there is not any size meet my need, can I customized ?
Of cause, we are the 20 years factory that with the rich experience in custom made service,not only can provide the customized service,but also can provide the professional advice.
9.How is the after-sales service?
Our support is guaranteed for 12 months.
For all my customers, we will help you repair. Send us questions through text, images or videos, and we will tell you about them and help you fix them.
If the machine parts are damaged during the warranty period, we can send you a new machine parts free of charge. We have English specifications, online service personnel, video teaching of machine operation, and our machine operation is very simple.
