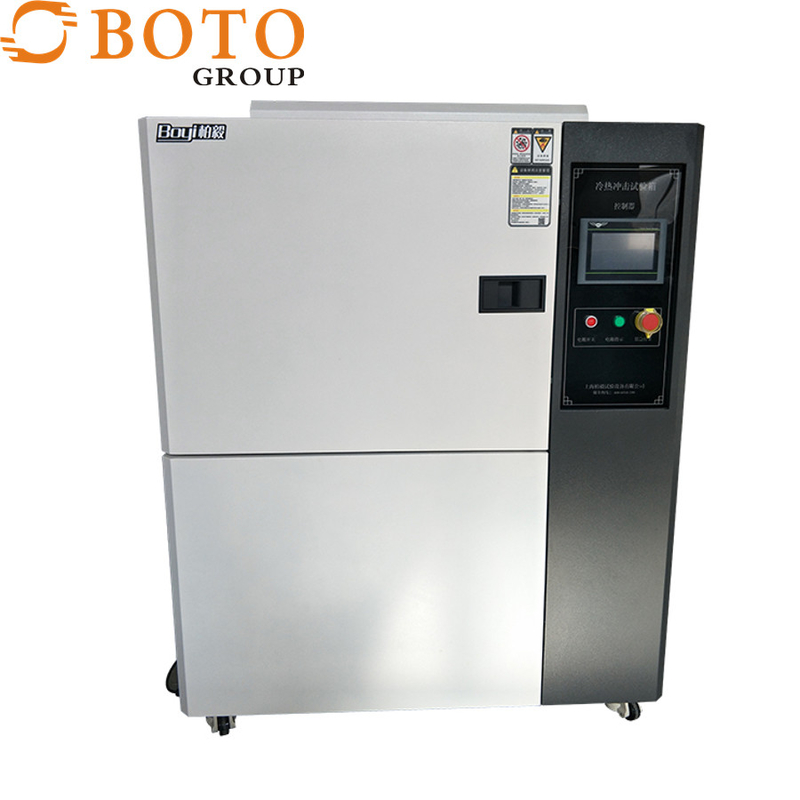

Two Box Type Hot And Cold Impact Temperature Shock Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE, ISO9001
Model Number: B-TCT-401
Minimum Order Quantity: 1 set
Packaging Details: strong wooden case
Delivery Time: 15-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800 set/year
Internal Size: 30x30x30 Cm External Size: 118(W)x185(H)x180(D) Cm
Relative Humidity: 20%-98%RH Low Temp Range: -10℃~60℃
Test Temp Range: -40℃~150℃ Internal Material: 304 Stainless Steel Plate
Exteral Material: Coating Or 304 Stainless Steel Plate Voltage & Frequency: 220V/380V 50/60Hz
High Temp Range: +80℃~200℃ Recovery Time: Within 3 Mins
High Light:

Two Box Thermal Shock Test Chamber

,

98%RH Thermal Shock Test Chamber

,

SUS304 Plate Thermal Shock Test Chamber

Two Box-type Hot and Cold Impact (Temperature Shock) Chamber



Product Description



Rapid temperature experiment chamber is suitable for aerospace products, information electronic instruments and meters, materials, electrical products, electronic products, all kinds of electronic components in the case of rapid temperature change of product performance indicators.



APPLICATIONS



1. To simulate test environment with different temperature and humidity

2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test

3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation

4. Uncover test unit weakness in a short-term test with accelerated time effect



Two Box Type Hot And Cold Impact Temperature Shock Chamber 0



CHAMBER DESIGN FEATURES

1. High performance and quiet operation (68 dBA)

2. Space-saving designed for flush installation to wall

3. Full thermal break around doorframe

4. One 50mm diameter cable port o left, with flexible silicone plug

5. Accurate wet/dry-bulb humidity measurement system for easy maintain



Two Box Type Hot And Cold Impact Temperature Shock Chamber 1



Product Parameters
Model
B-TCT-401 B-TCT-402 B-TCT-403 B-TCT-501 B-TCT-502 B-TCT-503 B-TCT-601 B-TCT-602 B-TCT-603
Internal Size(cm)
30×30×30 40×40×40 50×50×50 30×30×30 40×40×40 50×50×50 30×30×30 40×40×40 50×50×50
External Size (W*H*D) 118×185×180 128×195×190 138×205×200 118×185×180 128×195×190 138×205×200 118×185×180 128×195×190 138×205×200
Sample Weight 5KG 10KG 20KG 5KG 10KG 20KG 5KG 10KG 20KG
Low Temp Range
-10℃~ -60℃ -10℃~ - 70℃ -10℃~ - 80℃
Test Temp Range -40℃~150℃ -55℃~150℃ -65℃~150℃
High Temp Range +80 ℃ ~ 200 ℃ (various specifications applicable)
Recovery time Within 3 minutes
Interior material SUS#304Stainless steel plate
Exterior material Coating or SUS#304Stainless steel plate
Voltage/ Frequence AC:380V 50/60Hz
Remarks
The height includes height of blower casing&foot wheel.
Performance measuremed at ambient teperature of +23℃ without load.
Usable temperature range +5℃~+35℃



WHY CHOOSE US?



Two Box Type Hot And Cold Impact Temperature Shock Chamber 2



Two Box Type Hot And Cold Impact Temperature Shock Chamber 3



Hope for your cooperation and welcome to join us!

Two Box Type Hot And Cold Impact Temperature Shock Chamber 4





FAQ



1.What's your MOQ?

At present we haven't strict policy for this, so welcome orders with any quantity.



2. Are you a factory or trade company?

We are a manufacturer located in Hunan. You will be welcomed to visit our factory or we also can share our factory video for you at any time.



3. We are not professional for operation and installation of your machine?

While it is not a stumbling block, our machine is easy to operate, no need to professional training, and the instruction manual and video sent to you are enough. What's more, we have professional engineers and they can solve all questions.



4. How about packaging? If machine damaged, what should I do ?

Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement. Damage haven't happened before, if happen, we will arrange replacement.



5. We haven't do business before, how can I trust your company and machine?

We are a factory with more than 13 years and without any complaints on Alibaba. and our machine have exported to many countries and have a good feedback.



6. If I want to visit your factory, is the traffic convenient ?

Our company traffic is very convenient, it is only 10 minutes by car or taxi from our city light rail to our company, we also can arrange the shuttle bus for you to our factory.



7. Does your product have CE certification ?

Yes, we not only have the CE certification,but also have the FCC,ISO,etc.



8. If there is not any size meet my need, can I customized ?

Of cause, we are the 20 years factory that with the rich experience in custom made service,not only can provide the customized service,but also can provide the professional advice.



9.How is the after-sales service?

Our support is guaranteed for 12 months.

For all my customers, we will help you repair. Send us questions through text, images or videos, and we will tell you about them and help you fix them.

If the machine parts are damaged during the warranty period, we can send you a new machine parts free of charge. We have English specifications, online service personnel, video teaching of machine operation, and our machine operation is very simple.
