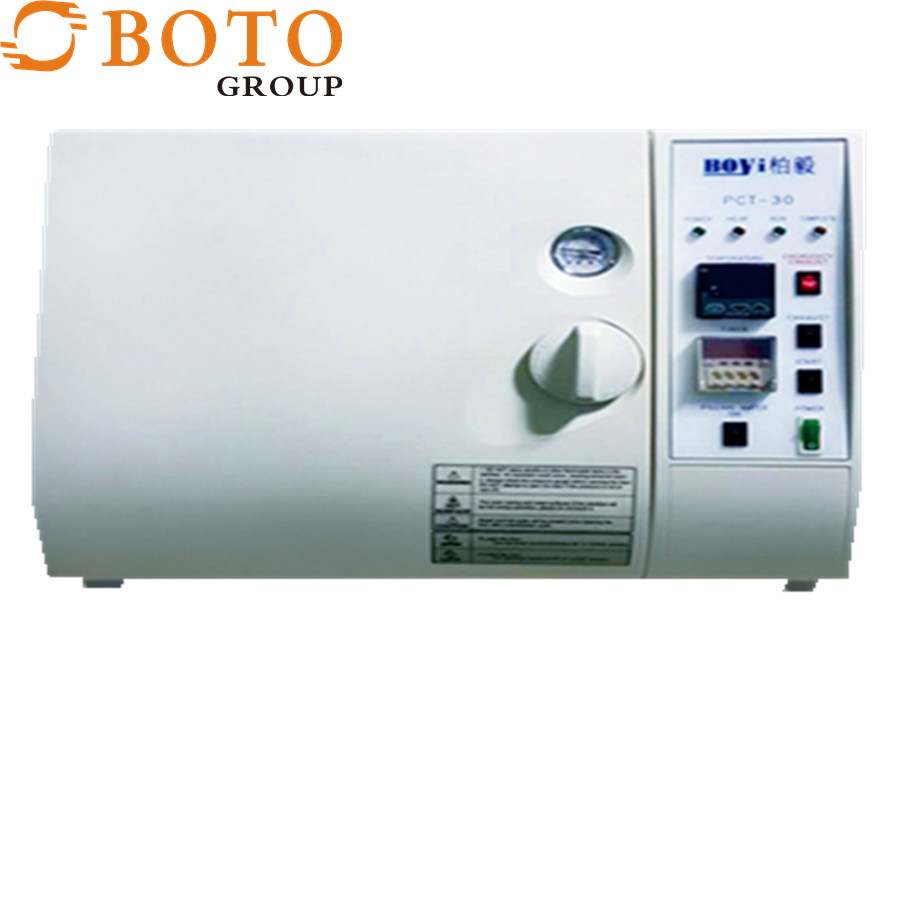

IC Semiconductor Pct Chamber Pressure Cooker Aging Test Chamber For Laboratory

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: ISO
Model Number: B-PCT-30-L
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: PLY-Wooden case
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15000set/year
Model: B-PCT-30-L Internal Dim: 30x45
External Dim: 54x67x45 Temperature Range: 100℃~135℃
Humidity Range: 100%RH Internal Material: Stainless Steel Sheet#SUS-316
External Material: Stainless Steel Sheet#SUS-304 Power Source: AC:220V 15A 50/60Hz
High Light:

IC Semiconductor Pct Chamber

,

SUS316 Aging Test Chamber

,

Environmental Laboratory Aging Test Chamber

Pressure Cooker Aging Test Chamber PCT test chamber Environmental Test Chambers



Product description

High pressure accelerated life testing machine laboratory equipment testing equipment lab machine PCT pressure chamber.It is mainly used to test the physical and other related properties of electrical, electronic products, components, parts, metal materials and their magnetic materials under the simulated climate conditions of high temperature, high temperature, high humidity and pressure, judge whether the performance of products can meet the requirements through verification, and provide help for the design, improvement, verification and delivery inspection of products.

IC Semiconductor Pct Chamber Pressure Cooker Aging Test Chamber For Laboratory 0

Use
PCT test box is mainly used in the electrician, electronic products, components, spare parts, metal materials and its magnetic materials in the simulated high temperature and under high temperature and high humidity and pressure conditions, testing products and other related physical properties, through the test to determine whether the performance of the product can meet the requirements, so that for product design, improvement, verification and inspection.



Features
1. Adopting imported high resistance solenoid valve double-way structure, reducing the failure rate in use to the greatest extent.
2. Independent steam chamber to avoid direct impact of steam on products, so as not to cause partial damage of products.
3. The labor-saving structure of the door lock solves the locking difficulties and shortcomings of the disc handle of the first generation of products.
4. The cold air in the front row of the test is designed to exhaust cold air in the test (air discharge from the test barrel) to improve the pressure stability and reproducibility.
5. Super long effect experiment operation time, long time experiment machine operation 1000 hours.
6. Water level protection, detection and protection through the water level Sensor in the laboratory.
7. TANK pressure resistance design, the pressure resistance of the box body (140℃) 2.65kg, in line with the water pressure test 6kg.
8. Safety protection pressure discharge button, emergency safety device two-stage automatic pressure discharge button.



Structure
1. Inner drum material: stainless steel #SUS-316
2. The outer barrel is made of #SUS-304 stainless steel
3. Control system: RKC-CB100 microcomputer made in Japan is used to control saturated steam temperature, LED display is adopted for time controller, pressure gauge is displayed by pointer, PID microcomputer is used to automatically control saturated steam temperature, and manual water inlet valve is used.



Spec



Model B-PCT-30-L
Internal dim(cm) 30x45
External dim(cm) 54x67x45
Temperature range 100℃~135℃ steam-saturation temperature
Humidity range 100%RH
Pressure range 0.5Kg~2.0Kg/cm2 Safety pressure 5Kg/cm*G
Time range 000Hr~999Hr
Duration of sustained injection 0.00Kg~2.00Kg/cm2 In about 45 minutes
Power source single phase 220V 15A 50/60Hz
Temperature fluctuation ±0.5℃
Temperature display accuracy 0.1℃
Pressure fluctuation ±0.02Kg
Humidity fluctuation ±1%RH
Humidity uniformity ±5%RH



Detail picture

IC Semiconductor Pct Chamber Pressure Cooker Aging Test Chamber For Laboratory 1





IC Semiconductor Pct Chamber Pressure Cooker Aging Test Chamber For Laboratory 2



PACKAGE&DELIVERY
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.15-20days after confirming order,detail delivery date should be decided according to production season and order quantity.



FAQ

Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!


Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .


Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.


Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service



Factory introduction

BOTO GROUP LTD.Is a professional manufacturer of environmental test equipment and test service. Our company was established in 1998,the plant covers 55,000 square meters and a construction area of 6,800 square meters, existing 160 workers and we can provide operation video for machines.





Service

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.



Onsite Service: 1.Device installation; 2.Equipment Operation Technology training; 3.Equipment Calibration; 4.Daily maintenance maintenance of equipment.



Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1.Social media 24 hours online communication;
2.Mail Seamless Docking;
3.Video Conferencing;
4.Artificial free door-to-door service



Our Team

IC Semiconductor Pct Chamber Pressure Cooker Aging Test Chamber For Laboratory 3



IC Semiconductor Pct Chamber Pressure Cooker Aging Test Chamber For Laboratory 4
