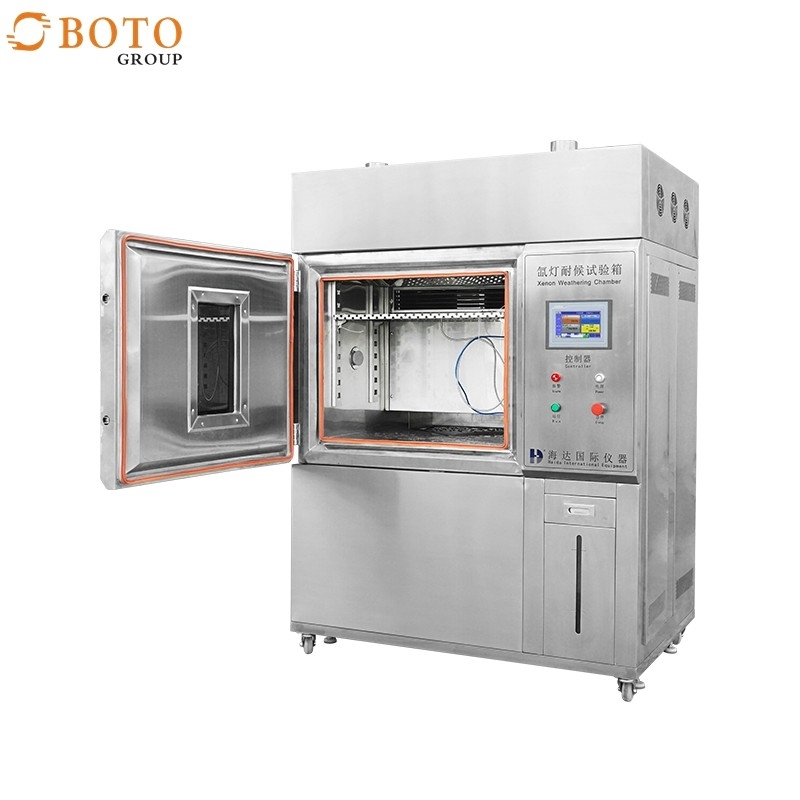

Automatic Stainless Steel Environmental Test Chamber Xenon Weathering Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-E711-2
Minimum Order Quantity: 1set
Packaging Details: standard packing
Delivery Time: negotiated
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35set per month
Chamber Temperature:: 40±3℃ Blank Panel Temperature:: 65±3℃
Filter:: Daylight Filter Outer Chamber Material:: Stainless Steel
Customized Support:: OEM Power:: Electronic, Electronic
Temperature Uniformity:: ≤3℃ Humidity Range:: 50%-90%
Control System:: PLC Controller, Touch Screen Door Seal:: Silicone Rubber Seal
Inner Chamber Material:: SUS 304 # Stainless Steel
High Light:

Automatic SS Environmental Test Chambers

,

PLC Xenon Arc Test Chamber

,

SUS304 Uv Accelerated Weathering Tester



Automatic Stainless Steel Environmental Test Chamber Xenon Weathering Test Chamber

Product Description



MAIN FEATURE:



1. Ventilation system: Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system

2. Back panel thermometer: adopt wired transmission technology, which highly improve the control accuracy.

3. Temperature sensor: PT100 platinum resistance thermocouple.

4. Equip with intelligent temperature and humidity controller, with PID adjustment and rapid self-turning. It can set several parameters to do cyclic test, directly digital temperature display for easy reading.

5. Multiple protective devices: Over temperature protection, water leakage alarm, over pressure of compressor, electricity leakage protection, alarm and auto power offer protection. In order to protect Xenon light, the light will turn off automatically once open the door.



MAIN PARAMETER



Item Specification
Internal Dimension (W*D*H) 800*800*800mm
External Dimension (W*D*H) 1450*1350*2150mm
Inner chamber material SUS 304 # Stainless Steel, Anti-rust, easy to clean
Outer chamber material Stainless steel
Chamber Temperature 40±3℃
Temperature Uniformity ≤3℃
Blank panel temperature 65±3℃
Humidity Range 50%-90%
Irradiated intensity 0.35±0.02w/m²at 340nm
Xenon lamp power 6.5KW water-cooled xenon lamp x 1pc
Control system PLC controller, touch screen
Distance from specimen to arc center 250~300mm, Effective exposure area 6400cm2
Max. Sample dimension 200*90mm Thickness<20mm
Filter Daylight filter
Door seal Silicone rubber seal
Temperature sensor PT100 high precision temperature sensor
Air circulation system Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity
Cooling ventilator Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system
Cooling ventilator France Tecumseh compressor
Power AC380V, 50Hz, three phase
Safety Protection

Over heat protection for fan,

Over load protection for cooling system,

Over pressure protection for cooling system,

Over temperature protection,

Over heat and over flow protection for water pump,

Leakage protection, Water shortage protection,

Auto stop after failure warning



Production Process

Automatic Stainless Steel Environmental Test Chamber Xenon Weathering Test Chamber 0

Automatic Stainless Steel Environmental Test Chamber Xenon Weathering Test Chamber 1

Automatic Stainless Steel Environmental Test Chamber Xenon Weathering Test Chamber 2

Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.
