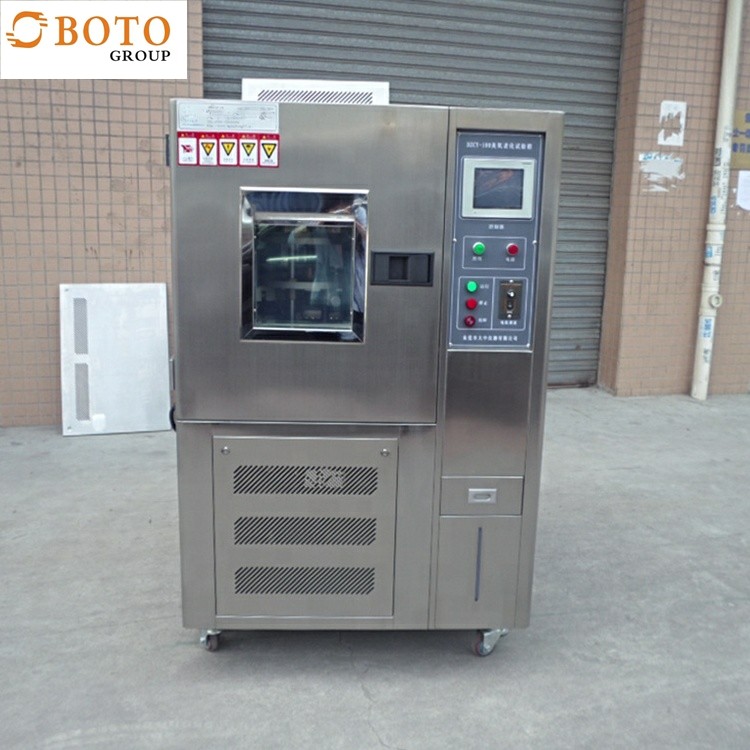

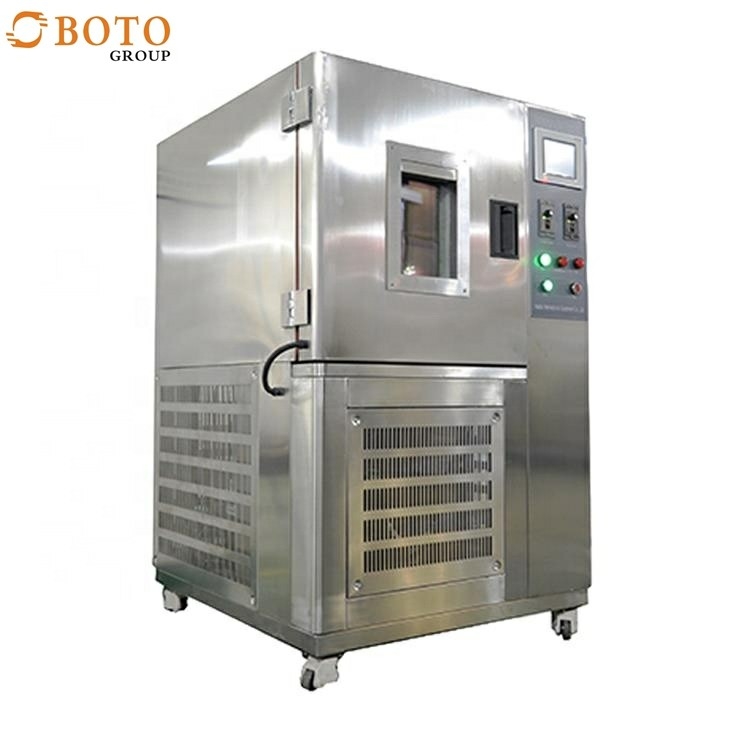

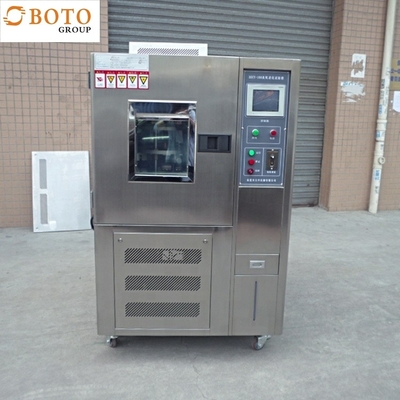

Programmable Ozone Weathering Treatment Aging Tester

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-NG-CY
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Power:: Electronic Function:: Resistance To Ozone Aging Performance Test
Application:: Vulcanized Rubber, Thermoplastic Rubber, Cable Ozone Concentration Range:: 0~500pphm
Temperature Deviation:: ±0.5°C Temperature Range:: RT+10°C~60°C
Temperature Uniformity:: ±2°C Ozone Concentration Deviation:: 10%
Power Supply:: 380V, 50/60HZ
High Light:

Ozone Weathering Environmental Test Chambers

,

Programmable Weathering Environmental Test Chambers

,

Vulcanized Rubber Environmental Test Chambers

Programmable Ozone Weathering Treatment Aging Tester





Summary:

The Ozone aging test chamber is mainly suitable for polymer materials and products (rubber) of the resistance to ozone aging performance test. Ozone content in the atmosphere is very low, but it is the main factors of polymer materials aging. Ozone aging test chamber simulating and strengthen the ozone condition in the atmosphere, get approximate to actual use or reproduction of the test results in a short time. The study of ozone effect regulation to rubber products, quickly identify and evaluate rubber materials resistance to ozone and antiozonant protection efficiency method,and then take effective aging proof measures to improve the service life of rubber products.



The Environment Ozone Aging Test Chamber is mainly adopted for rubber products testing such as vulcanized rubber, thermoplastic rubber, cable insulation sheathing products, intermittent static tensile dynamic tensile deformation, or deformation under dynamic stretching and static stretching alternating, confined to light with constant ozone concentration in the air and constant temperature chamber exposed to detection, scheduled on the specimen occurred from the specimen surface cracking or other properties of the degree of change, resistance to ozone in order to assess the rubber aging properties.

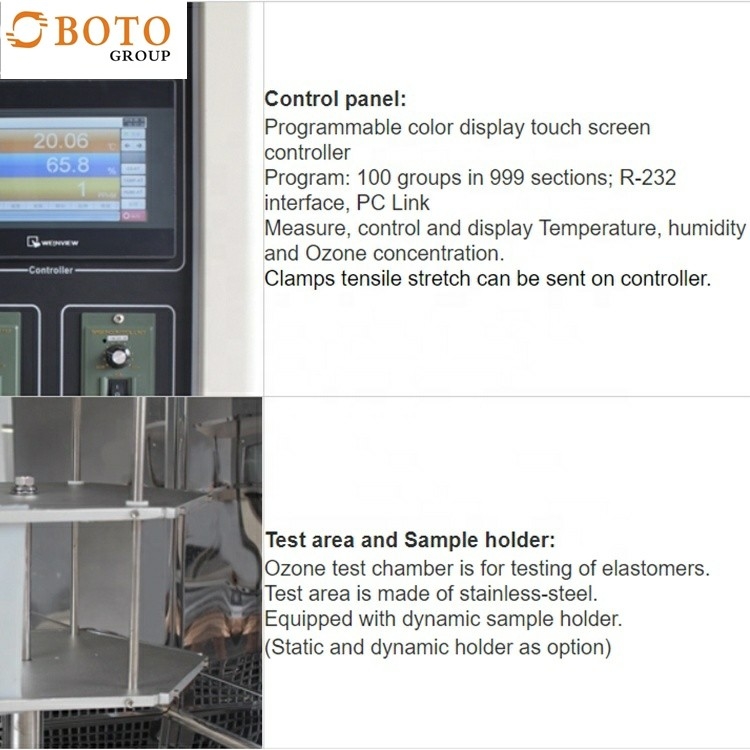

Control System:

1, With imported micro-computer LCD controller to control the temperature.
2, PID control
3, With auto calculation function to reduce the setting inconvenience.
4, Heater: fin type radiator pipe nickel-chromium alloy u-shaped heater, auto calculate with high accuracy PID + SSR control
5, Temperature measurement: SUS#304, PT 100



Speficiations:



Model BT-CY80 BT-CY150 BT-CY225 BT-CY408 BT-CY800 BT-CY1000
Inner size W*H*D(cm) 40*50*40 50*60*50 50*75*60 60*85*80 80*100*100 100*100*100
Outer size W*H*D(cm) 85*140*95 95*150*115 95*165*115 105*175*135 145*190*135 155*195*150
Inner material SUS 304 stainless steel
Temperature range RT+10°C~60°C
Temperature deviation ±0.5°C (no load)
Temperature uniformity ±2°C (no load)
Ozone concentration range 0~500pphm (or custom made)

Ozone concentration

deviation

10%
Sample rack speed 360 degree rotating sample holder
Controller Touch screen programmable controller
Ozone generator using voltage silent discharge tube produce ozone




Featuress:

1, Internal material is imported high quality mirror stainless steel plate.

2, External material adopts stainless steel

3, Insulation material: high-density glass fiber

4, Use long axial fan motor and high and low temperature resistant aluminum alloy wing type wind turbines to force vertical air circulation.

5, Chamber door adopts double layer high and low temperature resistant silicone seal ensure the airtight test area.

6, Chamber bottom has high quality universal wheel and fixed foot cup.

7, Observation window uses multilayer hollow tempered glass.

8, Exhaust system: exhaust the high concentration ozone from the test chamber to avoid to poison.

Programmable Ozone Aging Test Chamber, Rubber Ozone Aging Test Machine Ozone Weathering Treatment Aging Tester ManufacturerProgrammable Ozone Aging Test Chamber, Rubber Ozone Aging Test Machine Ozone Weathering Treatment Aging Tester Manufacturer



Company inftroduction

BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
