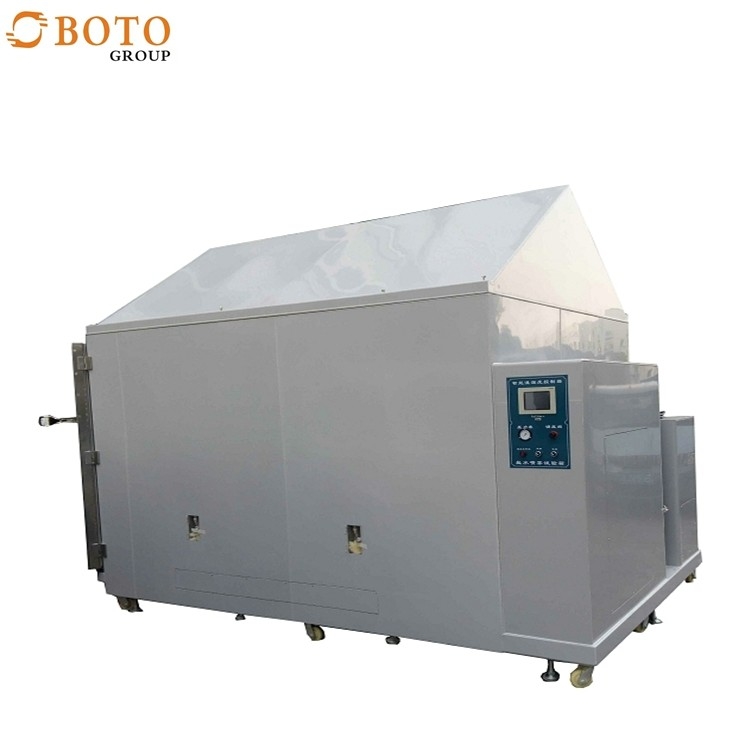

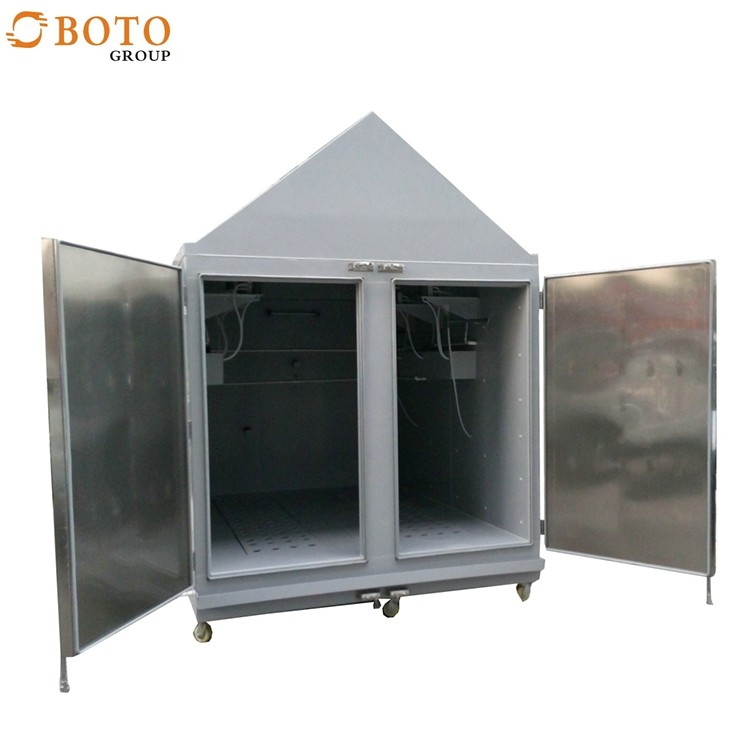

Temperature Humidity And Salt Spray Corrosion Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-HD-E809-3
Minimum Order Quantity: 1set
Price: 15000-38000 USD
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Brine Tank Capacity:: 110L Temperature Range:: Room Temperature ~ 60℃
Temperature Uniformity:: ≤±2℃ Humidity Range:: 30~98% R.H.
Power:: Electronic Room Temperature: ~ 60℃: ≤±0.5℃
Temperature Precision:: ±1℃ Humidity Precision:: ±3% R.H.
High Light:

110L Salt Spray Corrosion Test Chamber

,

PLC Corrosion Test Chamber

,

Programmable Corrosion Test Chamber

Temperature Humidity And Salt Spray Corrosion Test Chamber

Products Description
Temperature Humidity And Salt Spray Corrosion Test Chamber 0

PRODUCT FEATURES
1, Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.
2, Reservoirs with mixing system on stand.
3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4, Exposure zone lined with corrosion-resistant PVC sheets.
5, Clear cover allows viewing of test
conditions.
6, Peaked cover prevents dripping of condensation onto samples.
7, Water seal and water level protection system.
8, Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9, Automatic DI water fills to humidifying tower.
10, Digital temperature control.
11, Integral over-protection on heaters.
12, Low water cut-off protection on humidifying tower.
Product Paramenters
Model
BT-E809-3
Internal Size(WxDxH)
2500x1000x1500mm
External Size (L×W×H)
3100x2200x1800mm
Controller
PLC controller, touch screen, programmable, high definition
Temperature Range
Room temperature ~ 60℃
Room temperature ~ 60℃
≤±0.5℃
Temperature Uniformity
≤±2℃
Temperature Precision
±1℃
Humidity Range
30~98% R.H.
Humidity Precision
±3% R.H.
Test Mode
Salt Spray Mode, Wetting Mode, Drying Mode
Tempt. And Humidity Mode.
Heater System
Ti-alloy high speed electrical heating system.
Humidity & De-humidity System
Two independent system. Float level controller to prevent electrical misoperation
Test Chamber Temperature
Salt Spray Method (NSS ACSS)35±1℃
Corrosion-resistant Testing Method (CASS) 50±1℃
Saturated air Barrel Temperature
Salt Spray Method (NSS ACSS)47±1℃
Corrosion-resistant Testing Method (CASS) 63±1℃
Brine Temperature
35℃±1℃
Spray Quantity
0.5~2.5 ml / 80cm2 / hr
PH value
Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume
3.75m3
Brine Tank Capacity
110L
Multiple Safety Protection Devices
Current discharge protection, over-load protection, over temperature protection, shortage protection. With indicate lights
Water Supply
Auto-filling and drainage
Air Supply
8 bar air compressor
Power source
Single-phase, 230±10%V, 50Hz





Temperature Humidity And Salt Spray Corrosion Test Chamber 1
