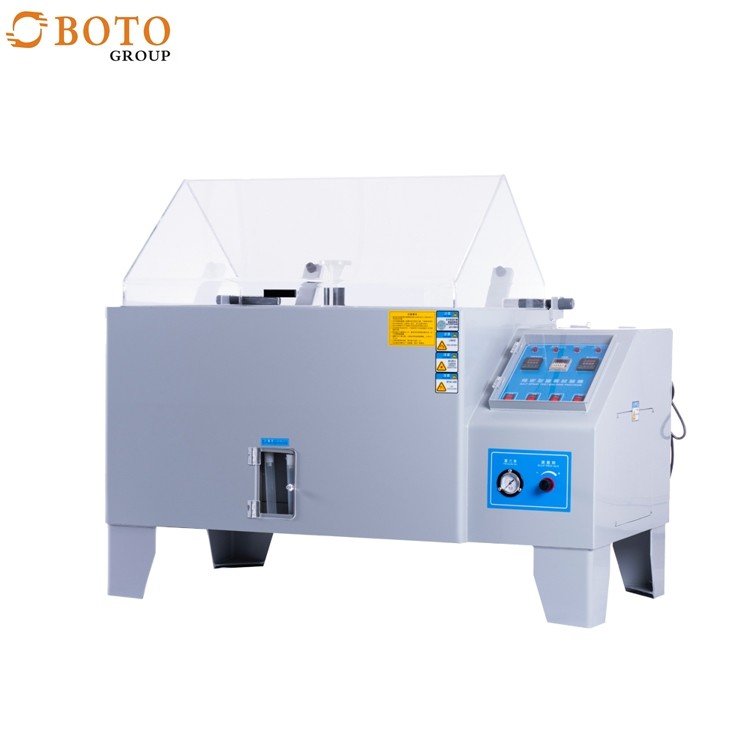

Economic Intelligent Nozzle Salt Spray Fog Corrosion Tester

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-XB-Z
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 268 Set/Sets per Month
Power:: Electronic, Electronic, AC220V 50HZ 4A Body Materials:: Whole PVC Board System
Laboratory Temperature:: NSS.ACSS 35°C ±1°C/ CASS Spray Volume:: 1.0~2.0ml/80cm2/h
PH:: 6.5~7.2 3.0~3.2 Standards:: ASTM B117, GB/T2423.17
Spraying Mode:: Continuous Spraying Temp. Air:: NSS.ACSS 47°C±1°C/CASS 63℃±1℃
Uses:: Composite Salt Spray Test Chamber
High Light:

Intelligent Salt Spray Corrosion Tester

,

AC220V Salt Spray Corrosion Tester

,

ASTM B117 Salt Spray Corrosion Tester

Economic Intelligent Nozzle Salt Spray Fog Corrosion Tester



The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.


Economic Intelligent Nozzle Salt Spray Fog Corrosion Tester 0
Model
BT-XB-60
BT-XB-90
BT-XB-120
BT-XB-160
BT-XB-200
Inner size (cm)
60x45x40
90x60x50
120x100x50
160x100x50
200x100x50
External size(cm)
107x60x118
141x88x128
190x110x140
230x130x140
270x150x150
Inside temp
Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method
(CASS)50°C±1°C
Brine temp
(NSS ACSS) 35°C±1°C (CASS) 50°C±1°C
Test chamber volume
108L
270L
600L
800L
1000L
Brine chamber volume
15L
25L
40L
40L
40L
Compressed air pressure
1.00±0.01kgf/cm2
Spray volume
1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average)
Test room relative humidity
85%RH or more
PH
6.5~7.2 3.0~3.2
Spray method
Programmable spray (including the continuous spray interrupted spray)
Power
AC220V1Φ10A
AC220V1Φ15A
AC220V1Φ20A
AC220V1Φ20A
AC220V1Φ30A
Economic Intelligent Nozzle Salt Spray Fog Corrosion Tester 1




Economic Intelligent Nozzle Salt Spray Fog Corrosion Tester 2

Economic Intelligent Nozzle Salt Spray Fog Corrosion Tester 3
Economic Intelligent Nozzle Salt Spray Fog Corrosion Tester 4

Cooperative partners
Economic Intelligent Nozzle Salt Spray Fog Corrosion Tester 5

Factory display
Economic Intelligent Nozzle Salt Spray Fog Corrosion Tester 6



Production Details



Economic Intelligent Nozzle Salt Spray Fog Corrosion Tester 7
Economic Intelligent Nozzle Salt Spray Fog Corrosion Tester 8


Economic Intelligent Nozzle Salt Spray Fog Corrosion Tester 9

BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



Economic Intelligent Nozzle Salt Spray Fog Corrosion Tester 10





Main equipment include:

  • Constant Temperature and Humidity Test Chamber
  • Salt Spray Test Chamber / Corrosion Cyclic Salt Spray Test Chamber
  • UV Accelerated Aging Test Chamber
  • Mini Environmental chamber / Desktop Environmental Test Chamber
  • Walk in Constant Temperature and Humidity Lab
  • High Temperature Chamber and Other Lab Test Equipment etc.

 Economic Intelligent Nozzle Salt Spray Fog Corrosion Tester 11



In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



Main market:



Economic Intelligent Nozzle Salt Spray Fog Corrosion Tester 12



The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.
