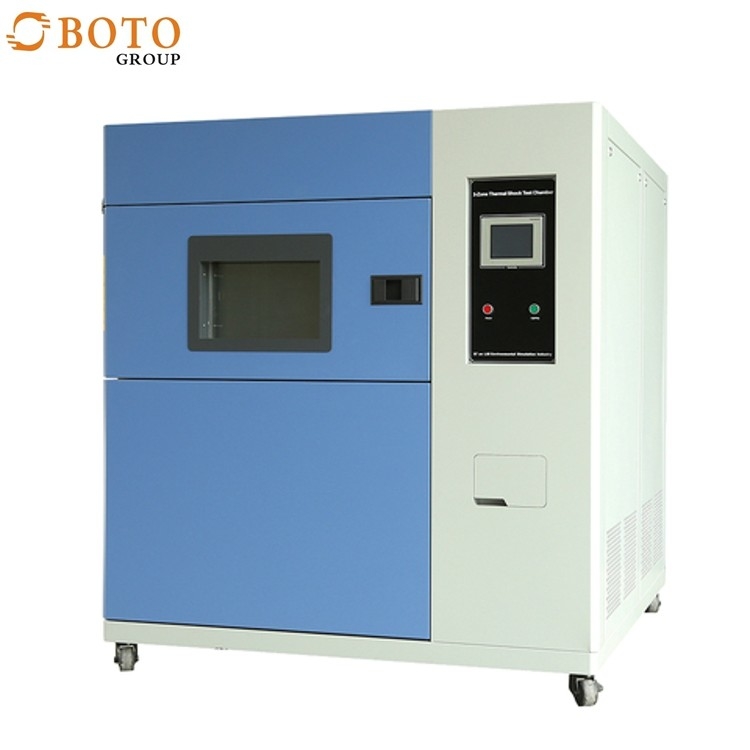

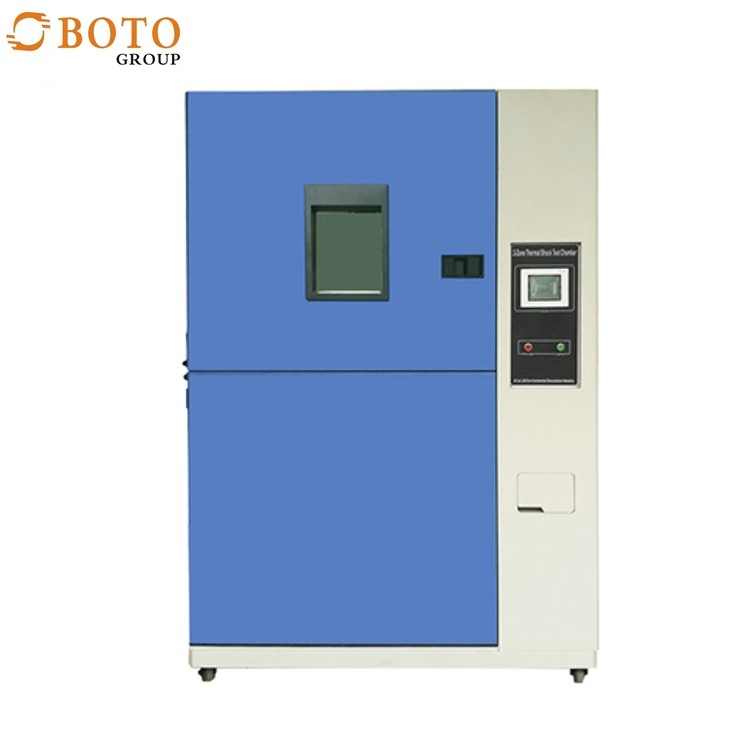

CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber

CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-3TS-300
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Month
Contact Now
Power:: Electronic Power Supply:: 380V 50Hz
Standard:: ASTM Function:: Inspection
Package:: Standard Wooden Box Max Load:: 25 KG
Color:: Blue
High Light:

Thermal Shock Cycle Climatic Test Chamber

,

Temperature Impact Climatic Test Chamber

,

ASTM Climatic Test Chamber

Advantage of Temperature Impact Climatic Test Chamber

1. Aluminum piece of refrigeration,Faster cooling rate
2. 2pcs shelf,Height can be adjustable; Can be remove
3. Cable hole:supply power to workroom's specimen, to better finish testing


CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber



Product Description


CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 0

Specifications of Temperature Impact Climatic Test Chamber
Model
BT-3TS-100
BT-3TS-210
BT-3TS -300
Internal dimensions(mm)
500*500*400
700*600*500
700*780*550
Overall dimensions(mm)
1150*1950*2100
1350*2100*2200
1350*2250*2300
Sample Loads
10kg
15kg
25kg
Pre-heat room
+220℃

Ambient temperature to ~ + 200℃, within in 30 minutes.

Pre-cool room
-70℃
Ambient temperature to ~ -70℃, within in 30 minutes
Test room
Ambient temperature +20 to +200°C
–65 to -5°C
Recovery time
Within 15 minutes
Temperature fluctuation
≤±0.5℃
Temperature deviation
≤±3℃
Controller
Programmable color LCD touch screen controller
Cooling system
Mechanical compression refrigeration system
Refrigerating unit
French TECUMSEH compressor
Refrigerant
R404A, R23
Exterior material
Steel Plate with protective coating
Interior material
SUS304 stainless steel
Observation window
Interior lighting
Standard configuration
2 pieces of stainless steel shelves, Φ 50 round cable port
Power Supply
380V 50HZ
Environmental conditional
5℃～+40 ℃ ≤85% RH





Product Details of Temperature Impact Climatic Test Chamber
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 1
Test Area
Pneumatic damper type thermal shock chamber. Pre-hot room, pre-cool room and test room configuration 2 pieces of adjustable and removable sample rack.
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 2
Control Panel
Programmable color display touch screen controller. Programs reach to 999 groups and 999 sections Ethernet ,USB (option),APP,
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 3
Large Viewing Window
Interior lighting Window coated with conducting film to protect it from frost.
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 4
Cable Port
Φ 50 round cable port at the left side of workroom, and seal with silicone screw plug.
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 5
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 6

2TS thermal shock test chamber


CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 7

Temperature humidity chamber


Company introduction
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 8
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 9

CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 10
Certifications
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 11
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 12

Production line workshop
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 13
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 14

Company cooperative partners
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber 15
