LCD Touch Screen Xenon Arc Test Chamber 1100*1800*1200mm Low Noise Computer Control

China LCD Touch Screen Xenon Arc Test Chamber 1100*1800*1200mm Low Noise Computer Control supplier
LCD Touch Screen Xenon Arc Test Chamber 1100*1800*1200mm Low Noise Computer Control supplier LCD Touch Screen Xenon Arc Test Chamber 1100*1800*1200mm Low Noise Computer Control supplier LCD Touch Screen Xenon Arc Test Chamber 1100*1800*1200mm Low Noise Computer Control supplier

Large Image :  LCD Touch Screen Xenon Arc Test Chamber 1100*1800*1200mm Low Noise Computer Control

Product Details:

Place of Origin: CHINA
Brand Name: HST
Certification: CE ISO FCC

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Standard Export Wooden Package
Delivery Time: 7-20 days
Payment Terms: T/T, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Diameter Of Spraying Nozzle: Φ0.8mm Control: Computer Control
External Size(W*H*D): 1100*1800*1200mm Humidity Range: 40%Rh~60%Rh
Xenon Light Source: :2.2kw Air Cooled (DC) Temperature Range: 50ºC ~ 80ºC

Air Cooled LCD Touch Screen Xenon Lamp Weather Resistance Test Chamber

Product Description

Technical specifications
Model NO. HST-XL-400
Power AC 110V +/-10% 50Hz
Inner chamber size (W*H*D) 700*750*700mm
External chamber size (W*H*D) 1100*1800*1200mm
Temperature range 50ºC ~ 80ºC
Humifdity range 40%RH ~ 80%RH
Temperature fluction ±0.5ºC
Temperature uniformity ±3.0ºC
Black temperature ±0.5ºC
Xenon light source 2.2KW air cooled (DC)
Lamp 1 set
Raining time 1~ 999 min, continuous rainning adjustable
Raining period 1~ 240 min, intermittent (interval) adjustable
Water spraying time 18 min spray/102 min not spray (ajustable)
Raining pressure 0.12~ 0.15 Mpa
Diameter of spraying nozzle Φ0.8mm
Heating power 2.0KW
Humidification 2.0KW
Distance between specimen shelf & light 500mm (shelf can load maximum 20kg)
Sample frame rotate speed 0~5r/min (ajustable)
Wavelength 280nm ~ 800nm
Irradiance Full wave range (280nm ~ 800nm) 300W/m² ~ 800W/m², UV wave range (300nm ~ 400nm) 20W/m² ~ 60W/m²



Structure & material
Material for internal chamber: Lamp installed on the top, irradiance area within 500*500mm, spin racks one the bottom (Speed 0-5r/m, adjustable its height), SUS#304 high grade stainless steel.


Material for external chamber: Well painted cold rolled steel

Modulator tube: Lamp tubes horizontally installed on the top of the test area.

Heating pipe: Nico-chrome heating pipe

Humidification: Vapor generator

Specimen shelf: Stainlees steel


Main features
1. Equipped with black board temperature meter to adjust temperature inside the chamber.

2. Xenon lighting time control

3. Spraying period control

4. Cycling use of water

5. Water shortage of fault alarm and over-temperature

6. Equipped with viewing window

7. Equipped wit irradiance meter to show light intensity inside the chamber.


Refrigenration system
1. Refrigerating compressor: Whole sealing compressor originally imported from France.

2. Refrigerant: DuPont R404 (USA)

3. Condenser: Air cooling coil condenser

4. Evaporator: Fin type multi-section evaporator

5. Expanding system: Danfoss expansion valve (Denmark)

6. Other accessories: Drier filter (ALCO, USA), Electromagnetic valve (Castel, Italy)


Operating system
1. Touch screeen controller, 7.5' PLC control, LCD color display in English & Chinese, interactive control interface.

2. Sensor: PT100 platinum resistance thermometer sensor (Class A)

3. Light source irradiation meter: For monitoring the exposure intensity

4. Major components adopt schneider products.

5. Controlling method: Heat balance adjustment method

6. Light time: Condensation time and rain spraying time can be all set on the controller with RS-232 (or USB option)

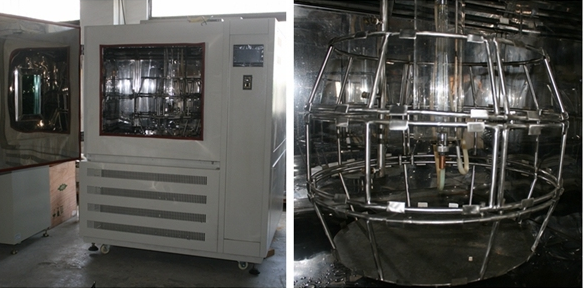

Product details



LCD Touch Screen Xenon Arc Test Chamber 1100*1800*1200mm Low Noise Computer Control



LCD Touch Screen Xenon Arc Test Chamber 1100*1800*1200mm Low Noise Computer Control

Test standard
The Xenon-lamp weather resistance test chamber is able to meet testing standard JISD0205-1987, GB/T16422.2-1999, ISO4892-2, ASTMG155, GB/T1865-2009, GB/T2423.24-199.


After-sales service
1. Free parts for 12 months.
2. One year warranty, during in this year, we provide free maintenance. Beyong the warranty, we provide accessories with low cost, lifetime maintenance service is available
