Short Time Constant Sand And Dust Test Chamber Programmable Recycled For Auto

China Short Time Constant Sand And Dust Test Chamber Programmable Recycled For Auto supplier
Short Time Constant Sand And Dust Test Chamber Programmable Recycled For Auto supplier Short Time Constant Sand And Dust Test Chamber Programmable Recycled For Auto supplier Short Time Constant Sand And Dust Test Chamber Programmable Recycled For Auto supplier

Large Image :  Short Time Constant Sand And Dust Test Chamber Programmable Recycled For Auto

Product Details:

Place of Origin: CHINA
Brand Name: HST
Certification: CE ISO FCC

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Standard Export Wooden Package
Delivery Time: 7-20 days
Payment Terms: T/T, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Humidity: 20-98%R.H Screen Line Size: 75μm
Sand Table Size: 150μm-850μm Interior Material: SUS304 Stainless Steel
Usage: Auto Testing Machine Power: Electronic

Small Time Programmable Controlle Laboratory Constant Sand and Dust Resistant Chamber for Auto Testing

Product Description

Laboratory Constant Sand and Dust Resistant Chamber simulate a comprehensive environment to test the exposure of automotive and electronic components at concentrated levels of dust in order to validate products seal integrity.



Standards:

Standards and Test Methods:

  • GB/T2423.37-2006 Environmental testing for electric and electronic products - Part 2: Test methods - Test L:Dust and sand
  • GB4208-2008 IP (Ingress Protection) Code
  • GB/T4942.1-2001 Classfication of Degrees of Protection Provided By Enclosures of Rotating Electrical Machines (IP Code)
  • GB11564-2008 Retro Reflector for Motor Vehicles
  • GB7000.1-2002/IEC60589-1999 General Safety Requirements and Tests for Luminaires
  • GB/T10485-2008 IP (Ingress Protection) Code



Specification:

Model HST-SD-500 HST-SD-1000
Working-room Dim(WxDxH) 800x800x800 1000x1000x1000
Temperature of heated dust RT~60°C
Humidity <30%R.H
Sand size 150m 850m
Dust size <149m
Ingredient of sand and dust Silic powder (95% SiO2)
Test time set 0.01min~99H59min ( can set ), continuous 8 hours
Main unit dimension (WxDxH) 1200x1050x1730mm 1400x1250x1950mm
Main unit weight 300 Kg 400 Kg
Power supply

AC220V 50Hz 2KW

or

specified by user

AC220V 50Hz 2.2KW

or

specified by user



Features of Sand and Dust Resistant Chamber:

  • HASTON  dust testing chamber vertical circulation airflow carries dust and the test dust can be recycled;
  • Using a single high-power low-noise centrifugal fan, according to the test requirements to adjust wind speed by conversion speed regulator.
  • The whole ventilation uses imported stainless steel plate, The bottom of the air duct is connected with the conical hopper, the air inlet and outlet of the fan are directly connected with the air duct, and then the top diffuser of the working chamber is connected to the working chamber body in proper position to form an "O" closed vertical blowing dust circulation system, so that air flow can flow smoothly and the maximum dust dispersed evenly;

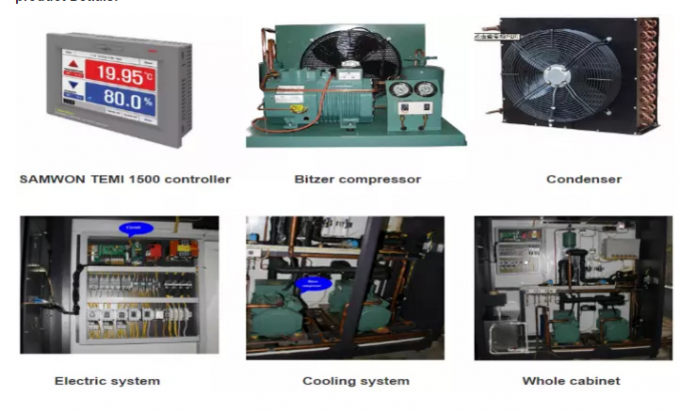

product Detials:

Short Time Constant Sand And Dust Test Chamber Programmable Recycled For Auto



Applicaton:



Our Services

OEM&ODM Service

8 years' experience in environmental testing equipment manufacture with professional R&D team give us ability to provide best equipments and solution to you quickly.



Guaranteed Quality

Certifications: ISO 9001, strictly comply with ISO17025 and international standard ANSI / NCSL-Z-540-1. Test equipment in line with GB,IEC,BS,ASTM,UL,JIS,CE,GOST and other standards. Eash set of equipment is strictly check by QC team before shippment to ensure quality and long-term stability, we also provide the latest technical information and operation video and English operation muanual with delivery.



24-hours Service

Hot-line will be open 24 hours. Fell free to provide your suggestion. When you find any problems during testing process we prmise we would reply you within 24 hours and provide the solution within 3-5 working days.
