IP5x IP6x Stainless Steel Sand Dust Test Chamber , Dust Testing Equipment For School / Factory

China IP5x IP6x Stainless Steel Sand Dust Test Chamber , Dust Testing Equipment For School / Factory supplier
IP5x IP6x Stainless Steel Sand Dust Test Chamber , Dust Testing Equipment For School / Factory supplier IP5x IP6x Stainless Steel Sand Dust Test Chamber , Dust Testing Equipment For School / Factory supplier IP5x IP6x Stainless Steel Sand Dust Test Chamber , Dust Testing Equipment For School / Factory supplier IP5x IP6x Stainless Steel Sand Dust Test Chamber , Dust Testing Equipment For School / Factory supplier

Large Image :  IP5x IP6x Stainless Steel Sand Dust Test Chamber , Dust Testing Equipment For School / Factory

Product Details:

Place of Origin: CHINA
Brand Name: Haston
Certification: CE ISO FCC
Model Number: HST-SD-1000A

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Standard Export Wooden Package
Delivery Time: 20-30 days
Payment Terms: T/T, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Service Type: OEM / ODM / Non-Standard Available Application: School, Hospital, Lab, Factory
Testing Humidity: 45%Rh~85%Rh Material: Stainless Steel
Test Time: 0~999.9hr Settable Power Supply: 3 Phase 380V 60/50Hz

IP5x & IP6x Stainless Steel Sand And Dust Test Chamber For School, Hospital, Lab, Factory

Production description
Dustproof Testing Sand And Dust Test Equipment Price is suitable fo r all mechanic,electric, electronoc, automoblie, motorcycle,automobile and other products and spare parts to do dustproof test . It is used to evaluate whether products can resistivity and storage, running or not in air of dry sand or dust. It is applied to IEC-529, GB4208-93, GB2423.37-89 and GJB150.12.

For Dust Test Machne, large observation window with bright lights to keep the box, and use of tempered glass embedded heating element. Dust test chamber provides testing as per various iec 60529 for IP5x & IP6x, JIS, is, DOT mil standard, Combination of various testing cycles are available in a completely mono block construction. All settings can be done in an ergonomically designed control panel with accurate and uniform dust agitation

Specifications and technical parameters
Model HST-SD-500A HST-SD-1000A HST-SD-1500A
Internal Dim.W*H*D(mm) 800*800*800 1000*1000*1000 1000*1500*1000
Metal mesh dimension wire diameter is 50um, separation distance between wire 75um
The dosage of talcum power 2 kg for each stere of test chamber volume
(the use times are not allowed to exceed 20 times).
The talcum power usage 2kg/m3 ~ 4kg/m3
Testing Temp. 20°C±15°C
Testing humidity 45%RH~85%RH
Material Exterior Cold rolled plate+Powder Coated or SUS#304
Interior SUS#304
Controller Imported digital programmable touch screen controller
Vacuum system Equipped with pressure gage, air filter, three pieces of pressure regulation,
and connection tube ,vacuum pump is optional
Test time 0~999.9hr settable
Other Components Chamber lamp, Wiper, Casters with adjusters
Power supply 3 phase 380V 60/50Hz
Customization service Non-standard or special requirements are all welcome



Chamber Design Features
1. Chamber material: Imported high grade stainless steel inner tank (SUS304) mirror panels, the exterior is made of power coated cold-rooled plate or SS 304 stainless steel plate , increasing the appearance of the texture and cleanliness.

2. Equipment containing dust vertical circulation of air, dust can be reused for testing; Device itself has a good sealing performance, test, laboratory test can clearly observe the situation; Device equipped with a vacuum system to meet the needs test; Equipment dust the bottom of the device can be replaced.

3. Transparent window is convenient to observe specimen during testing.

4. Blow fan adopts stainless steel shell, high sealing and wing speed, low noise.

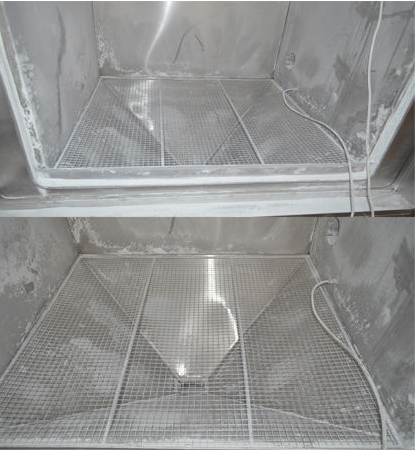

5. Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.

IP5x IP6x Stainless Steel Sand Dust Test Chamber , Dust Testing Equipment For School / Factory


Our Factory
Short introduction about HASTON factory:
We are a long history testing equipment manufacturer, in the past 8 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber,haston is in the leading position in the industry and we have got more than 30pcs patents.

HASTON main test equipments:
Environmental test chambers, temperature (humidity) chamber,Thermal shock chamber, High low temperature test chamber, Salt spray test chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in constant temperature and humidity test chamber,Vacuum oven, Drying Cabinet, electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber, Powe battery crush and puncture test machine, Battery shock impact test machine, Battery Squeeze test machine, battery short circuit tester, Battery burning jet test equiopment, Battery needling test machine, etc
