Simulation Cold Thermal Shock Test Equipment Three Chambers Design PID+PWM+SSR Control

China Simulation Cold Thermal Shock Test Equipment Three Chambers Design PID+PWM+SSR Control supplier
Simulation Cold Thermal Shock Test Equipment Three Chambers Design PID+PWM+SSR Control supplier Simulation Cold Thermal Shock Test Equipment Three Chambers Design PID+PWM+SSR Control supplier Simulation Cold Thermal Shock Test Equipment Three Chambers Design PID+PWM+SSR Control supplier Simulation Cold Thermal Shock Test Equipment Three Chambers Design PID+PWM+SSR Control supplier Simulation Cold Thermal Shock Test Equipment Three Chambers Design PID+PWM+SSR Control supplier

Large Image :  Simulation Cold Thermal Shock Test Equipment Three Chambers Design PID+PWM+SSR Control

Product Details:

Place of Origin: CHINA
Brand Name: Haston
Certification: CE ISO FCC
Model Number: HST-TS-100C

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Standard Export Wooden Package
Delivery Time: 20-30 days
Payment Terms: T/T, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Controller: Program-Controlled Liquid Crystal Touch Screen Structure: Three Chambers Design
Cooling Method: Water Cooling / Air Cooling Power Source: AC380V 3 5 Lines, 50/60Hz
Inside Material: SUS304 Stainless Steel Output Method: PID+PWM+SSR Control Mode

PID+PWM+SSR Control Three Chambers Design Simulation Cold Thermal Shock Test Chamber

Product Description

Simulation Climate Environment Cold Thermal Shock Test Equipment
Thermal Shock Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment , that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Testing box is divided into two parts, one is high-temperature zone, another is low-temperature zone, the testing samples are placed in the moving basket, using unique heat storage and cool storage, the cylinder taking basket moves up and down in hot zone and cold zone to complete the extremely high and low temperature impact testing.

Applicable range
Simulation Climate Environment Cold Thermal Shock Test Equipment are applicable for testing the changes in physical of the electronic chip IC, PCB, semiconductor ceramic and polymer materials. And composite material and material structure's result which under continuous environment with high temperature or low temperature shock in short time; it means this product can test the material's chemical change or physics change by expansion and contraction within short time. It's application to metal, plastic, rubber, food, electronic etc.alternation environment

Specifications and technical parameters
Model HST-TS 271916 100A 150A 252A 31.5B 100B 150B 252B 31.5C 100C 150C 252C
Structure precooling box, preheating box, test box; two-box or three box selectable
Valve device Forced air valve device
Inside material SUS304 stainless steel
Outside material SUS304 stainless steel or cold rolled steel with power spraying.
Test plate Stainless steel plate
Refrigerating system Semi-hermetic double-stage compressor
Cooling way Water-cooled/Air Cooled
Environmental temp. 0ºC~+30ºC
Preheating temp. +60ºC~+180ºC +60ºC~+180ºC +60ºC~+180ºC
Precooling temp. -10ºC~-55ºC -10ºC~-65ºC -10ºC~-80ºC
High temp. shock +60ºC~+150ºC +60ºC~+150ºC +60ºC~+150ºC
low temp. shock -10ºC~-40ºC -10ºC~-50ºC -10ºC~-60ºC
Temp. deviation +2ºC
Simulation load(kg) 10 10 15 20 5 10 15 20 5 10 15 20
High temp.shock speed(3-box) RTºC~+150ºC/5min RTºC~+150ºC/5min RTºC~+150ºC/5min
low temp.shock speed(3-box) RTºC~-40ºC/5min RTºC~-50ºC/5min RTºC~-60ºC/5min
High temp.shock speed(2-box) -40ºC~+150ºC/5min -50ºC~+150ºC/5min -60ºC~+150ºC/5min
Low temp.shock speed(2-box) +150ºC~40ºC/5min +150ºC~55ºC/5min +150ºC~65ºC/5min
Preheating time(min) 25 30 40 45 25 30 40 45 25 30 40 45
Precooling time(min) 60 75 100 110 70 85 100 110 70 85 100 110
Temperature sensor PT100
Controller Program-controlled liquid crystal touch screen
Setting range -100ºC~200ºC/TI, E: OH OOM ~999H 59M/ CYCLE: 0 CYCLE~10000 CYCLE
Resolution ratio Temperature: 0.01ºC/time:1min
Output method PID+PWM+SSR control mode
Additional feature Air outlet and inlet perception inspection control/ RS-232 remote monitoring management system
Safety device 1.With no-fuse protection switch.
2.Control system with phase sequence protection and low voltage electrical protection.
3. Over load protection device for refrigeration compressor
4.Refrigeration compressor high and low voltage protection switch.
5.With over-heat protection switch.
6.Refrigeration compressor over oil pressure protection.
7.Overload protection for circulation fan motor
Customized service Welcome to Non-standard,Specail requirements,OEM/ODM orders.



Simulation Cold Thermal Shock Test Equipment Three Chambers Design PID+PWM+SSR Control

Simulation Cold Thermal Shock Test Equipment Three Chambers Design PID+PWM+SSR Control

Features(Simulation Climate Environment Cold Thermal Shock Test Equipment)

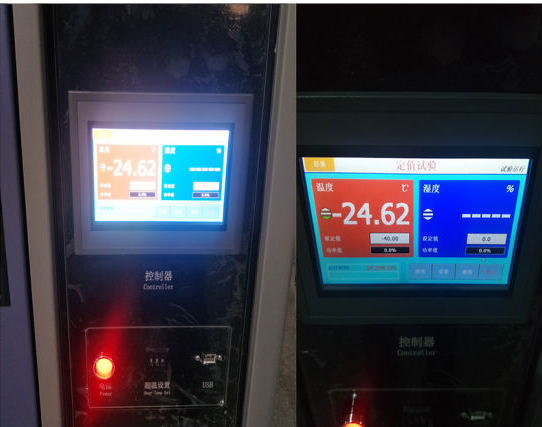

1. With the 7 inches large color control screen, the running status are displayed clearly.
2.User can save 32 test programs written by themselves.is over 20, and it avoid the chemical couple from stainless steel or aluminum.
3. According to reset time requirments, the machine can automatically set precooling and preheating temperature to adjust the working status of the machine to be optimal.
4.Lowest error, high speed, test samples exposure smooth.
5. Energy saving, low consumption, low noise design.
6. Friendly human-computer interface, with full functions of program setting and troubleshooting
7. The chambers are all designed into integral three boxes if the inside size less than 1 cubic meter and equipped with a unique subequipment, it could satisfy test request of different sizes. If the inside size more than 1 cubic meter, the chambers are designed into split two-box type.
8. Intelligent color microcomputer control system as below:

1): Two-box or three-box programmable mode.
2): Sensor inspection control of air outlet and inlet.
3): Server Valve dynamic automatic load control.
4): 150ºC(60)ºC~(10)-65ºC test range.
5): Wind direction switch time within 10 sec.
6): Cold and hot shock temperature recovery within 5 min.
7): 50% energy saving and automatic server.
8): IPC( PC base) industrial computer controller.
9): LCD Chinese/English switchable liquid crystal display screen with dust prevention touch keyboard.
10): CM remote monitoring management system.
11): RAMP isothermal accelerating make the machine has long-term using life.
12): LK8900 color microcomputer control system.
13) 0.01ºC accurate temperature controllable analytical ability.
14): 1000H/STEP the time can be controlled for each step.
15): Fully automatic accurate control and safe guard coordination system.
16): 12 bit D/A temperature converter. 17): LIMIT precooling and preheating overtemperature protective device.

9. high competitive factory price with high quality and power after-sales service
