Plc Intelligent Salt Spray Test Chamber For Electronic Products / Metal Materials

China Plc Intelligent Salt Spray Test Chamber For Electronic Products /  Metal Materials supplier
Plc Intelligent Salt Spray Test Chamber For Electronic Products /  Metal Materials supplier Plc Intelligent Salt Spray Test Chamber For Electronic Products /  Metal Materials supplier Plc Intelligent Salt Spray Test Chamber For Electronic Products /  Metal Materials supplier Plc Intelligent Salt Spray Test Chamber For Electronic Products /  Metal Materials supplier

Large Image :  Plc Intelligent Salt Spray Test Chamber For Electronic Products / Metal Materials

Product Details:

Place of Origin: CHINA
Brand Name: HST
Certification: CE ISO FCC
Model Number: HST-SS

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Standard Export Wooden Package
Delivery Time: 7-20 days
Payment Terms: T/T, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Working Temperature Range: Room Temperature +5°C~65°C Salt Fog Settlement: 1~2ml/80cm2.h
Exterior Chamber Material: P.V.C&P.P Mist Volume:: 0.5~3.0
Color: Silver Controller Type: PLC Touch Screen Controller

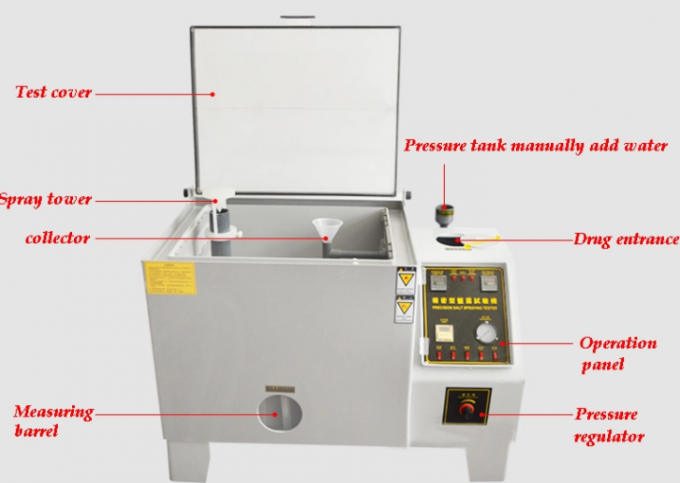

PLC Intelligent Salt Spray Atmosphere Corrosion Test Cabinet
Equipment summary:
PLC Intelligent Salt Spray Atmosphere Corrosion Test Cabinet used to test the corrosive resistance of
products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling,
anti-rust oil.

Corresponding standard:
GB/T 2423.17-1993 salt spray test
GB/T 2423.18-2000 salt spray test
GB/T 10125-1997 salt spray test
ASTM.B117-97 salt spray test
JIS H8502 salt spray test
IEC68-2-11 salt spray test
IEC68-2-52 1996 salt spray test
GB.10587-89 salt spray test
CNS.4159 CASS Accelerated acetic acid copper salt spray test
GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

QUICK DETAILS
The salt spray corrosion test chamber can assess the ability of salt spray corrosion on materials and its protective layer, and the similar process quality of similar protective layers. At the same time, it can assess the ability of certain products to resist salt spray corrosion; this product is suitable for parts and electronic components. Salt spray corrosion tests on components, protective layers of metallic materials, and industrial products.

Technical parameters:

Model PLC Intelligent Salt Spray Atmosphere Corrosion Test Cabinet
Inside box size(cm)60x45x4090x60x50120x80x50
Outside box size(cm)107x60x118141x88x128190x110x140
Testing room temperatureSalt test (NSS ACSS)35℃±1℃/Corrosion Test (CASS)50℃±1℃
Pressure barrel temperatureSalt test (NSS ACSS)47℃±1℃/Corrosion Test (CASS)63℃±1℃
Brine temperature35℃±1℃ 50℃±1℃
Testing room Capacity108L270L480L
Brine tank capacity15L25L40L
Salt concentration

The concentration of sodium chloride 5% or the 5%
concentration of sodium chloride add 0.26g per liter of
copper chloride (CuCl2 2H2O)

Air pressure1.00±0.01kgf/cm2
Spray volume1.0~2.0ml/80cm2/h
Testing room relative humidity85% above
PH6.5~7.2 3.0~3.2
Spray form

Programmable spray (Including continuous and
intermittent spray)

powerAC220V1Φ10AAC220V1Φ15AAC220V1Φ20A


FUNCTIONS
1.PVC integrated shell and inner box
2. Automatic defogging, automatic water, water temperature protection
3. With full detection system, lights can be displayed when a fault occurs
4. Japan's Omron or Japan R & D LED digital display P, I, D + S, S, R microcomputer integrated controller
5. The salt water tank adopts a concealed water level observation window, the cover is transparent organic glass, and the heat insulation is good and the spray state is intuitive
6. Precision glass nozzle (PYREX) has uniform mist diffusion and naturally falls on the test piece. It can work continuously for 4000 hours without crystallizing salt blocking.
7. With double over-temperature protection, insufficient water level warning;
8. The temperature controller uses digital display, PID control temperature, error ± 0.3 °C;
9. The test chamber is heated by steam directly, the heating rate is fast and uniform, and the standby time is reduced;
10. The spray tower is equipped with a conical diffuser, which has the functions of guiding fog, adjusting the amount of mist and evenly falling fog.
11. The saturated air barrel adopts SUS304 stainless steel high-temperature barrel, which has good heat preservation effect and provides the required humidity in the laboratory;
12. With the function of defogging, this function can be used when the test is terminated or temporarily stopped, and the salt spray gas in the remaining test chamber can be forcibly discharged to the outside.


Advantage:
1. Temperature control: Japan's Omron or Japan's R & D LED digital display P, I, D + S, S, R. microcomputer integrated controller
2. Temperature sensor: platinum resistance. PT100Ω/MV
3. Heating system: fully independent system, corrosion resistant titanium alloy electric heating heater
4. Spray system: tower spray device plus no crystal nozzle (fine mist particles and uniform distribution)
5 spray time: 1s to 9990H can be set within the range, and the cycle can be adjusted
6. Temperature and humidity inside the box: mercury thermometer with temperature and humidity
7.Saline Collection: Standard Dosing Tube
8. Preheat the salt solution: The temperature of the salt solution is equalized with the temperature inside the box (does not cause the temperature of the salt solution to affect the test temperature too low)

9. Cabinet material: high strength, high temperature, acid and alkali resistant P.V.C board
10.Inner box material: high strength, high temperature, acid and alkali resistant P.V.C board
11. Cover material: imported corrosion-resistant, high-strength transparent acrylic plate
12. Other accessories: all stainless steel, copper or anti-corrosion, high temperature materials
13. Safety protection: leakage, short circuit, over temperature, water shortage, end of test, over current protection
