|Temperature:||-40℃ To +180℃||Material:||SUS304 Stainless Steel|
|Humidity:||20% To 98%RH||Controller:||Programmable Color LCD Touch Screen|
|Volume:||50L/ 80L||Temperature Resolution:||± 0.001 ℃|
Small Bench Top Type 36L Climatic Temp Humidity Test Chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, building materials, luggage, adhesion tape, printing, packaging, etc.High And Low Temperature And Humidity Test Device can simulate different environment condition. It is appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. HASTON supply TH-50,TH-36 Benchtop test chamber. Temperature and Humidity Test Chamber can define performance of material.
|Internal dimension (mm)||320*350*450||350*400*500|
|Overall dimension (mm)||800*1050*950||560*940*795|
|Temperature range||-20℃ ~+150 ℃|
|Low type||Ⅰ: -40℃ Ⅱ:-75℃|
|Humidity range||20% ~ 98% RH|
|Temperature fluctuations||± 0.5 ℃|
|Temperature deviation||± 2.0 ℃|
|Humidity deviation||± 2.5% RH|
|Heating rate||3 ℃ / min|
|Cooling rate||1 ℃ / min|
|Temperature Sensor||PTR Platinum Resistance PT100Ω/MV A-class|
|Temperature Resolution||± 0.001 ℃|
|Humidity sensor||Dry and wet bulb sensor|
|Power Supply||AC220V 50HZ|
|Environmental conditional||5℃~+40 ℃ ≤85% RH|

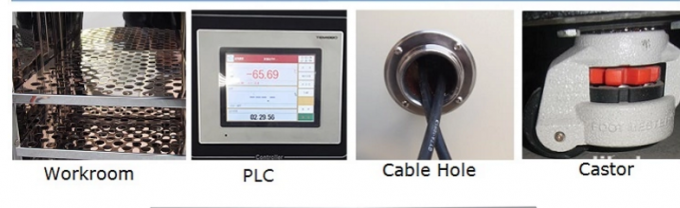

Standard Features of Small Bench Top Type 50L T Climatic Temp Humidity Test Chamber
♦ Temperature and Humidity control and display unit
♦ Humidity sensor dry and wet bulb sensor, Resolution: ± 1%
♦ Programmable color LCD touch screen controller
♦ Viewing window with interior lighting
♦ Interior material is high quality SUS304 stainless steel
♦ Exterior material is steel plate with protective coating, color is blue
♦ Can perform long time 85 °C/85 % RH test
WUXI HASTON Environmental Simulation Industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas marketing in environmental test chambers to more than 30 countries.
♦ We provide test chamber, we provide test solution
♦ We manufacture standard and custom climatic chambers
♦ We can provide effective solutions to any test requests
Warranty & Service - 1Years Warranty, Lifelong Follow-up Services.
♦ 1Years Warranty, Lifelong Follow-up Services.
♦ Training how to install, operate and maintain the machine.
♦ Provide calibration service for our customers
♦ Response within 24 hours once got questions from customers.
♦ Send spare parts within 2 days after got notice.
♦ Engineers available to service on site to install and commissioning overseas
