SUS304 Stainless Steel Humidity System ±0.1% Accuracy Xenon Lamp Weather Resistance Test

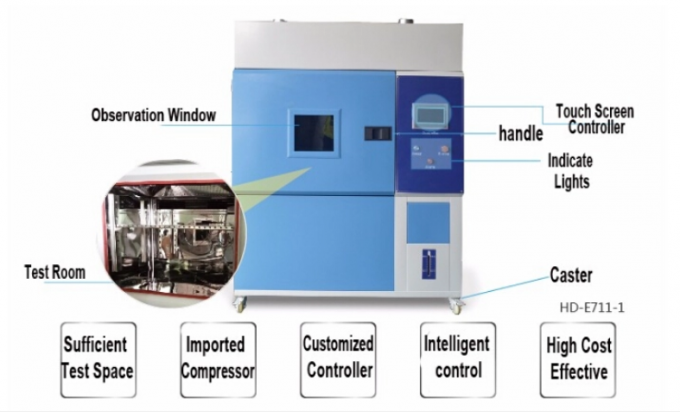

Xenon Weathering Test Chamber, Xenon Lamp Aging Climatic Test Equipment is best fit to mimic natural full sunlight spectrum xenon arc lamp to reproduce the destructive waves of light of different environment, which can be an excellent material for accelerated testing light fastness and weather resistance. Can be used for the screening of new material, improvement of existing materials or evaluate material such as the change of the composition change after durability test. Industry widely used, for example: paint ink, paint, resins, plastics, printing and packaging, adhesive, car motorcycle industry, cosmetics, metal, electronic, electroplating, medicine, etc.
1.Inner chamber is made of advance stainless steel pate , outside skin is made of SUS304# stainless steel card pate .
2.Dynamic rotating sample frame, speed can be adjusted.
3.Using the imported intelligence temperature control instrument, with the PID adjustment ,fast auto-tuning ,can set up many kinds of technical parameters. Temperature direct digital display, reading is very convenient.
4.A filter light observation window, harmful gas vents.
5.Double metal the blackboard thermometer.
6.Variety of safety protection devices.
|Item||Xenon Weathering Test Chamber, Xenon Lamp Aging Climatic Test Equipment|
|Internal Dimension (W*D*H)||800*800*800mm|
|External Dimension (W*D*H)||1450*1500*2000mm|
|Inner chamber material||SUS 304 # Stainless Steel, Anti-rust, easy to clean|
|Outer chamber material||Stainless steel|
|Blank panel temperature||65±3℃|
|Irradiated intensity||0.35±0.02w/m²at 340nm (within±10%)|
|Xenon lamp power||6.KW water-cooled xenon lamp x 1pc|
|Control system||Siemens PLC controller, auto display irradiance|
|Distance from specimen to arc center||250~300mm, Effective exposure area 6400cm2|
|Filter||Borosilicate filter inside and outside|
|Water pressure at nozzle||1 - 1.5 bar|
|Sample rack||Stainless steel rotary sample rack, 3-7rpm|
|Door seal||Silicone rubber seal|
|Temperature sensor||PT100 high precision temperature sensor|
|Air circulation system||Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity|
|Cooling ventilator||Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system|
|Cooling ventilator||France Tecumseh compressor|
|Power||AC380V, 50Hz, three phase|
Over heat protection for fan,
Over load protection for cooling system,
Over pressure protection for cooling system,
Over temperature protection,
Over heat and over flow protection for water pump,
Leakage protection, Water shortage protection,
Auto stop after failure warning
Standards --Xenon Weathering Test Chamber, Xenon Lamp Aging Climatic Test Equipment
JIS K 6259, ASTM1149, ASTM1171, ISO1431, DIN53509, GB/T13642, GB/T 7762-2003, GB 2951
ASTM D4329,D499,D4587,D5208,G154,G53;ISO 4892-3,ISO 11507;EN 534;PREN 1062-4, BS 2782;JIS D0205;SAE J2020
Application of Xenon Weathering Test Chamber, Xenon Lamp Aging Climatic Test Equipment
