Climatic Test Chamber Anti Corrosion Material Salt Spray Test Chamber Environment Test Machine

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE/ISO
Model Number: B-SST-200
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: PLY-Wooden case
Delivery Time: 15-29 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 19000set/year
Brand Name: BOTO Model: B-SST-200
Type: Test Equipment Power: 9 KW
Internal Volume: 800L Ph: 6.5~7.2 3.0~3.2
Air Pressure: 1.00±0.01kgf/cm2 Standards: GB/T2423.17
High Light:

Climatic Test Chamber Anti Corrosion Material

,

Salt Spray Test Chamber 800L

Climatic Test Chamber Anti Corrosion Material Salt Spray Test Chamber Environment Test Machine



Description:

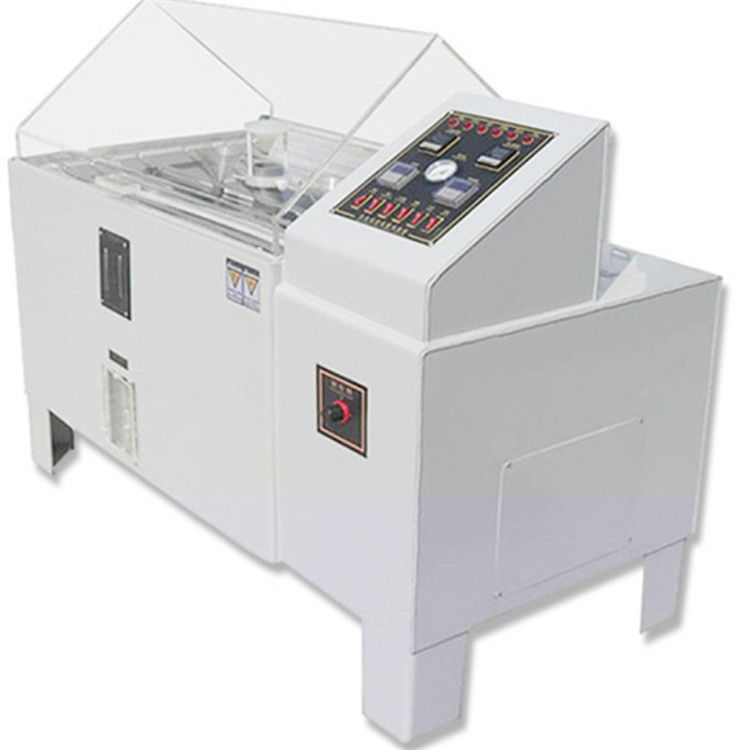

A salt spray test chamber is a laboratory instrument used to simulate the corrosive effects of saltwater on metal and other materials. The chamber creates a controlled environment of saltwater mist and high humidity to test the durability and resistance of materials to corrosion. The test is commonly used in the automotive, aerospace, marine, and construction industries to evaluate the effectiveness of protective coatings and surface treatments. The results of the test can help manufacturers improve the quality and longevity of their products.

Usage:

Salt spray test chambers are used to simulate salt spray or salt fog conditions in a controlled environment. These conditions are common in coastal or marine environments, where metal surfaces can corrode quickly due to the high levels of salt in the air.
The salt spray test chamber is used to evaluate the resistance of materials and coatings to salt spray corrosion. It can be used to test a variety of materials such as paints, coatings, metals, plastics, and ceramics.
The test involves exposing the test samples to a controlled salt spray environment for a specified period of time. The samples are then evaluated for corrosion or other types of damage.
The results of the test can be used to determine the effectiveness of a coating or material in protecting against corrosion in salt spray environments. This information can be used to make improvements to coatings or materials to increase their corrosion resistance.
Salt spray test chambers are commonly used in industries such as automotive, aerospace, marine, and construction to ensure that their products can withstand the harsh salt spray environments they may encounter.

Climatic Test Chamber Anti Corrosion Material Salt Spray Test Chamber Environment Test Machine 0Climatic Test Chamber Anti Corrosion Material Salt Spray Test Chamber Environment Test Machine 1Climatic Test Chamber Anti Corrosion Material Salt Spray Test Chamber Environment Test Machine 2Climatic Test Chamber Anti Corrosion Material Salt Spray Test Chamber Environment Test Machine 3Climatic Test Chamber Anti Corrosion Material Salt Spray Test Chamber Environment Test Machine 4

Corresponding standard :

1.GB/T 2423.17-1993 salt spray test

2.GB/T 2423.18-2000 salt spray test

3.GB/T 10125-1997 salt spray test

4.ASTM.B117-97 salt spray test

5.JIS H8502 salt spray test

6.IEC68-2-11 salt spray test

7.IEC68-2-52 1996 salt spray test

8.GB.10587-89 salt spray test

9.CNS.4158 salt spray test

10.CNS.4159 CASS Accelerated acetic acid copper salt spray test

11..GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

Climatic Test Chamber Anti Corrosion Material Salt Spray Test Chamber Environment Test Machine 5Climatic Test Chamber Anti Corrosion Material Salt Spray Test Chamber Environment Test Machine 6

Model

B-SST-108

B-SST-270

B-SST-480

Inside box size(cm)

60x45x40

90x60x50

120x80x50

Outside box size(cm)

107x60x118

141x88x128

190x110x140

Testing room temperature

Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃

Pressure barrel temperature

Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃

Brine temperature

35℃±1℃ 50℃±1℃

Testing room Capacity

108L

270L

480L

Brine tank capacity

15L

25L

40L

Salt concentration

The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O)

Air pressure

1.00±0.01kgf/cm2

Spray volume

1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average)

Testing room relative humidity

85% above

PH

6.5~7.2 3.0~3.2

Spray form

Programmable spray (Including continuous and intermittent spray)

power

AC220V1Φ10A

AC220V1Φ15A

AC220V1Φ20A



Our company:

Climatic Test Chamber Anti Corrosion Material Salt Spray Test Chamber Environment Test Machine 7

Climatic Test Chamber Anti Corrosion Material Salt Spray Test Chamber Environment Test Machine 8

Climatic Test Chamber Anti Corrosion Material Salt Spray Test Chamber Environment Test Machine 9

OUR CERTIFICATES



Climatic Test Chamber Anti Corrosion Material Salt Spray Test Chamber Environment Test Machine 10



FAQ
1.Are we manufacturers or traders?
We are manufacturer, our factory lies in Jiading, Shanghai Province. Welcome to visit us and do OEM cooperation with us. With much more working and much better material used on our machines,the quality of ours has been much better than others .

2.How to pay if you decide to purchase our machines?
We can accept PayPal, Western Union ,bank account.

3.What is our warranty for the machines?
We will provide 3 years of warranty for each of our popcorn machines.
The warranty works like this: if there is some part of the machine which won't work, just send us a small video and we will be able to judge which part is not working and mail you the non-working part for free and lively instruct you to change.

4.How it would be shipped? Do we support door delivery? And how much time and cost will it take?
Shipping method depends on your choices. We can support door delivery by air or to airport only to the worldwide by Fedex or UPS,DHL, and also we can do shipment to your sea port as well. The cost is different according to your location and the machine model you choose.You can ask for more courier cost details after deciding which machine to buy.

5.What about the voltage or the electrical plug issues?
We can make 220v/50hz,220v/60hz,110v/60hz machines, thus you don’t have to worry about the electricity plug issues in your country.We are looking forward to building long term business relationship with each of our clients worldwide. Our main regular markets now have been mainly in US, India, South Africa, Southeastern Asia, Britain, etc!
