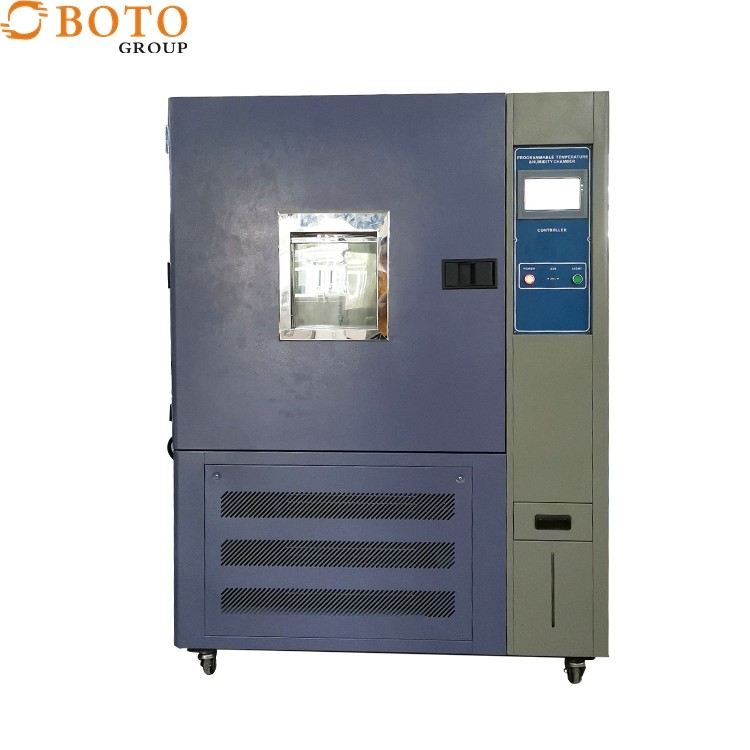

Lab equipment GJB150.4 Standard Precision Temperature And Humidity Control Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE certificate
Model Number: B-TH-504
Minimum Order Quantity: 1 Set
Packaging Details: Plastic+wooden case
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 set/ Month
Product Name: Temperature And Humidity Test Chamber Usage: Temperature Humidity Test Chamber For Resisting Heat
Temperature Range: -70 Degree ~ +100(150) Degree Humidity Range: 20%~98%R.H.(10%-98%R.H / 5%~98%R.H Is The Specific Condition )
Controller: Programmable LCD Touch Screen Standard: GB10589-89 ; GB11158,IEC60068-2-1,BS.EN.ASTM
Material: SUS304 Stainless Steel Compressor: France "Tecumseh"
Inner Size: 504L Accuracy / Volatility: ±1.0 Degree ±2.0%R.H. / ±0.5 Degree ±2.0%R.H.
High Light:

200W Chicken Egg Incubator

,

Fully Automatic Chicken Egg Incubator

,

5280pcs Capacity Chicken Egg Incubator

Lab Equipment GJB150.4 Standard Precision Temperature And Humidity Control Chamber

Product discription

Temperature And Humidity Test Chamber Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.

This Chamber can simulate different environment condition.It's appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define performance of material.

Mainly used in national defense industry, aviation industry, automotive parts, electronic components, plastics industry, food industry and other related product development, straightening management engineering test specifications. Its characteristics are as follows:

1. The import of compressors and refrigeration accessories by the well-known brands in the national boundaries ensures the stability of the refrigeration system.

2. The cause of the faults can be displayed and the reason is easy to exclude.

3. The special air supply cycle design, the temperature and humidity distribution uniformity is good.

4. The whole series of imported microcomputer controllers are colored. Color touch screen, Chinese and English system, can be used as a function of setting the city value. It can show the cause of the trouble, exclude easy, super quiet design, effectively reduce the running noise of the equipment, and

5. Super quiet design, effectively reduce the running noise of the equipment.

6. Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.



Features:
1. sales in more than 80 countries
2. CE certification
3. PLC control system
4. Long service life
5. Size customization
6. Appearance material customization



Growth Medical Aging Equipment Environmental Temperature Humidity Climate Test ChamberGrowth Medical Aging Equipment Environmental Temperature Humidity Climate Test ChamberGrowth Medical Aging Equipment Environmental Temperature Humidity Climate Test Chamber

Equipment summary:

Environmental Constant Temperature Humidity Climatic Test Chamber is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.



Applicable industries:
Environmental Constant Temperature Humidity Climatic Test Chamber applied to control the product
quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals,
chemicals, building materials, aerospace, medical care and so on.

Detailed Parameters:

Model

BT-80

(A~G)

BT-150

(A~G)

BT-225

(A~G)

BT-408

(A~G)

BT-608

(A~G)

BT -800

(A~G)

BT-1000

(A~G)

Inside size WxHxD (cm) 40x50x40 50x60x50 50x75x60 60x85x80 80x95x80 100x100x80 100x100x100
Outside size WxHxD (cm) 100x170x87 105x175x97 115x190x97 135x195x115 145x185x137 145x210x130 147x210x140
Temperature range -70ºC~+100ºC(150ºC)
(A:+25ºC B:0ºC C:-20ºC D:-40ºC E:-50ºC F:-60ºC G:-70ºC)
Humidity range 20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition)
Accuracy/ uniformly ±0.1ºC;±0.1%R.H./ ±1.0ºC;±3.0%R.H.
Accuracy / volatility ±1.0ºC;±2.0%R.H./ ±0.5ºC;±2.0%R.H.
Heating / cooling time About 4.0ºC/min;about 1.0ºC/min(5~10ºC/mm is the specific condition)
Inside material Stainless steel SUS 304#
Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
Cooling system Air-cooled/ single-stage compressor(-20ºC) ,wind, water cooled/two-stage compressor(-40ºC~-70ºC)
protection compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system
accessories recorder(purchase),view window,50mm testing hole,PL lamp,clapboard,Dry and wet gauze ball
controller TEMI300 digital controller from South Korea
compressor France Tecumceh
power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz

Production line
Growth Medical Aging Equipment Environmental Temperature Humidity Climate Test ChamberGrowth Medical Aging Equipment Environmental Temperature Humidity Climate Test Chamber
Packaging and shipping

Growth Medical Aging Equipment Environmental Temperature Humidity Climate Test ChamberGrowth Medical Aging Equipment Environmental Temperature Humidity Climate Test Chamber

Honor and certification
Growth Medical Aging Equipment Environmental Temperature Humidity Climate Test ChamberGrowth Medical Aging Equipment Environmental Temperature Humidity Climate Test ChamberGrowth Medical Aging Equipment Environmental Temperature Humidity Climate Test Chamber

Certifications

Growth Medical Aging Equipment Environmental Temperature Humidity Climate Test Chamber
Customers
Growth Medical Aging Equipment Environmental Temperature Humidity Climate Test Chamber
